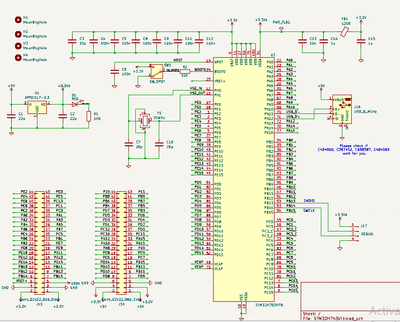

It is not recognized as a USB device. What did I do wrong or miss?IC: STM32F103CBT6 1. Is the distance between USB D+ and PA12 (Pin 33) and USB D- and PA11 (Pin 32) long?The distance from USB D+ to PA12 and USB D- to PA11 is approximately 35 mm (1,38...
Hi,i am trying to investigate the behaviour of the ADC when measuring a value, where the ADC is triggered from a timer source.In the manual it states, that when the ADC is clocked from SYSCLK or PLL "P", then it would be faster, but when clocked from...
Hello,Hope you all doing well..!! I am using two microcontrollers i.e., for transmitting data I have to use STM32F407VET6 and for receiving I have to use STM32F407VGT6 also I have to connect MCP2551 CAN Transceiver. I am transmitting data from one bo...
Hello everyone,I have been using for a long time the stm32L496ZGT6 in a customized PCB with an uSD card module. Never had any problem interfacing the card. Due to the shortage of supply during the pandemic situation I bought a couple of stm32L552ZET6...
I bought a NUCLEO H755ZI board, but I can't make the LED connected to GPIOB pin 14 blink, neither with CMSIS nor with HAL, I saw some tutorials and questions here, but nothing solved it, thank you in advance for your help.
Hi, we see STM32H7 has Qspi errata as below: But we are not sure where to apply the patch exactly. It says "upon reset and upon switching from memory-mapped", mean in reset function, right after or before "HAL_QSPI_Init"?
Hello , I want to make 4 channel PWM signal using TIM1 (with complimentory also) .While the TIM1 is used to triger the ADC to get sample .I am getting the pwm wave , But ADC is not triggering or not working . What configuration i require Please s...
Hello, I'm currently controlling a motor with the nucleo-h743zi2 board. I'm sending commands to the motor driver via PWM and reading the encoder's values. I can currently send commands from a PC and receive encoder values through UART communicati...
Hi there ! I start a project with STM32G031k8. This board i'm gonna make is a RS485 slave on the pin 4-5-6-7 of GPIOA i put a dipswitch with pullup resistor , and i read in this way: uint16_t Add = ( 0x00F0 & GPIOA->IDR)>> 4 ; right now my add is 5...
