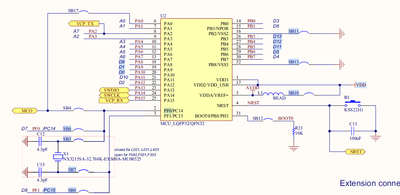

I try to divide pwm like that TIM_InitStruct.TIM_ClockDivision = TIM_CKD_DIV1;it is not working. I am using stm32f030 TIM_TimeBaseInitTypeDef TIM_InitStruct; TIM_OCInitTypeDef TIM_OCInitStruct; // OC: Output Channel RCC_APB2PeriphClockCmd(RCC_APB2Pe...
Hi. I'm running through the STM32 starting tutorial and I am at a piece of code that configures GPIO pins. One of the instructions on the readme is this:In order to load the ExtMem_Boot code : - Open your preferred toolchain :- Open the Project - Reb...
,void GPIO_Init(GPIO_Handle_t *pGPIOHandle) { uint32_t temp = 0; //1.configure mode of gpio pin if(pGPIOHandle->GPIO_PinConfig.GPIO_PinMode<=GPIO_MODE_ANALOG) { temp = (pGPIOHandle->GPIO_PinConfig.GPIO_PinMode<<(2 *pGPIOHandle->GPIO_PinConf...
Hello Experts,I am working on i2s of stm32h743. The Manual says when the alignment is left the zeros are sifted from 0 to 7 in case of 24bit data length which is correct work but when I change the alignment right the zero does not appear on 24 to 31b...
I'm using STEVAL-MKSBOX1V1 for vibration analysis and I want to change sampling frecuency. I did it in the past with other versions of the project but now it has chan a little. I changed the ODR in the file lsm6dsox.c , but I also need to change the ...

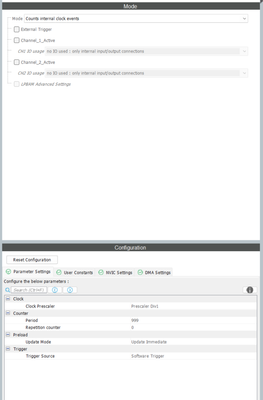

Pwm is not continuous My clock freq 20mhz Where am i doing wrong ? void PWMparamc(uint32_t PWM_freq, uint8_t duty){ PWMparam.period = (SystemCoreClock / PWM_freq) - 1; //PWMparam.prescaler = (SystemCoreClock / TimerTickFreq ) ; temp_duty = ((...

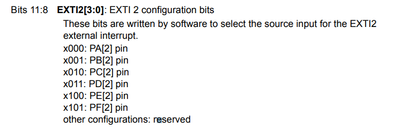

Why there are two pending registers for interrupt? One of them is EXTI_PR and other one is Interrupt Set-pending Registers(ISPR) which is in NVIC controller registers.?What is the diffrence between them?Thanks in advance
I need to preform a simple SMBus read command but I'm not understanding how to set it up. I can do a I2C read() but I can't find any examples of how to do a simple SMBus read word(). Are there any simple examples?Thanks,Richard

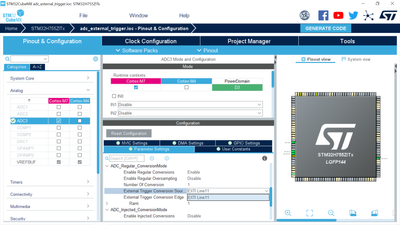

I have the following block of code. I am averaging 6 A/D inputs. Stream holds these 6 average values and looks fine. One at a time the loop converts each sample to ascii and appends '\n' and '\r' and then transmits them over the UART. If I use UA...
