Hi, I have an application where I need to send send signals to 8 stepper drivers on my STM32F407 Discovery board. Each stepper driver requires an independent PULSE, DIRECTION, and SLEEP signal. DIRECTION and SLEEP are trivial GPIOs high/low. I have u...

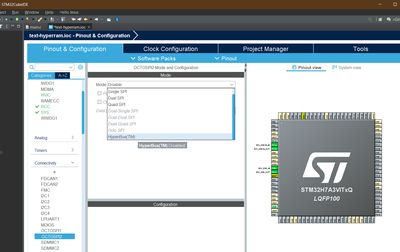

I'm attempting to wire a USB-C connector to the deluge of strangely named pins available on the STM32H7A3VIT6 (100pin LQFP). Pin names STP, NXT, CK, D0 thru D6 are available on the H7A3 via CubeMX but I'm not able to find information on pin function...
Hello,In my project I need to sample 3 phase current to see if where is short or not. I am using STM32H753 HRTIM. Not only that I must place sampling point as close to PWM transition from high to low as possible (peak current)I connected phase curren...
I ask for this , but any other same alternative use.i set primary I2C on PB10,11 as on image an reserve PA10,11 and PF0,1My plan is use alternative AF as I2C switch similar as IC PI4MSD5V9540On PF pins is device on 5V I2C . In code i try add to one I...
Hi everyone,I'm currently using the Nucleo F429ZI development board to test SPI Receive, and I've encountered the following two issues:I use the HAL_SPI_Receive() function, when I config the SPI frequency to a slower rate, I've observed that the CS s...
I have timer 1 to use with hall sensors as interfacing timer. Timer 8 is then used to output the signals (see picture red and blue).The simulated hallsignal (3 sensors combined) is very precise and pretty constant (green signal - second box)."A" show...

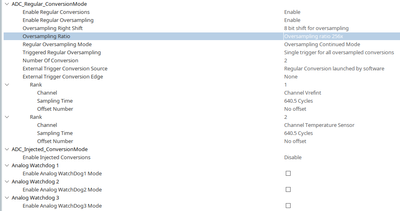

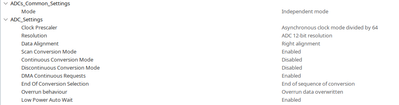

RM0444 (Rev. 5 Nov 2020 - should be newest): Chapter 15.8 Oversampler: "N is defined using the OVFS[2:0] bits": this should say "OVSR[2:0]" bits. Chapter 15.12.3: Register ADC_CR Note for AD_EN: "set ADEN only when all bits of ADC_CR registers are 0"...
Hello, I want to use the HSE of the NUCLEO-H743ZI2 development board. I tried to set it up according to the instructions in the user manual using MCO from STLINK-V3E.Here's my setup:However, when I checked STLinkUpgrade, I found that the HSE is set t...
Hello everyone!I'm working on a project where I want to transmit some data to the cloud using the STM32H7B3I-DK board. However, I've encountered difficulties in establishing serial communication with this board. I've tried enabling SPI communication ...

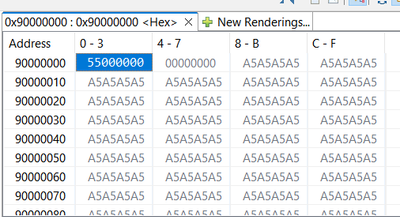

Hi,I'm working on a hardware design using the STM32F765VIH and I am trying to connect a MT28EW128ABA1HPC-0SIT NOR Flash and IS66WVH16M8DBLL-100B1LI PSRAM to the FMC in muxed mode. I'm struggling to understand how the muxed connection should be made a...
