Solder mask opening for LGA 12 LIS2DE12 ?

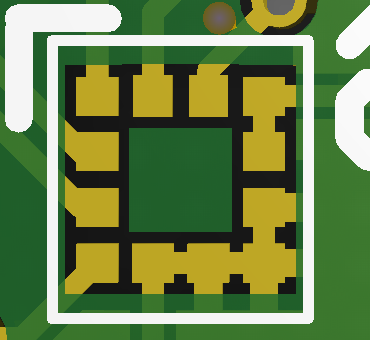

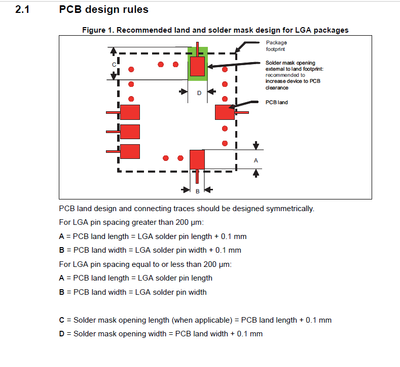

Dear Members,I want to create a solder mask for LIS2DE12,Is my solder mask correct ?Have a look on my screen shot, thanks
