I have a couple questions: 1. Is there a document with a description of the motor control registers? 2. Is there a library that I can import into my project to support comms between an STM motor controller/inverter board and a master device?

I found the following document: STM32F PMSM single/dual FOC SDK v4.3.This has a section (14) which has some explanation to how serial comms with a motor control device can work. There is even a list provided of "relevant motor control registers", how...

Hello. Will software created with the X-CUBE-MCSDK-6 SDK work with BLDC motors?

We are using the B-G431B-ESC1 board. To generate the project, we use the X-CUBE-MCSDK-6 SDK. The description of the board says that the board can work with BLDC motors. But the SDK description says that the SDK is for PMSM only. Can you tell me if th...

Long time no see，When the motor rotates, the fault shown in the figure below will occur when it encounters a large responsible resistance.

Resolved! STM32 IHM07M1 STM32F401RE Motor profiler

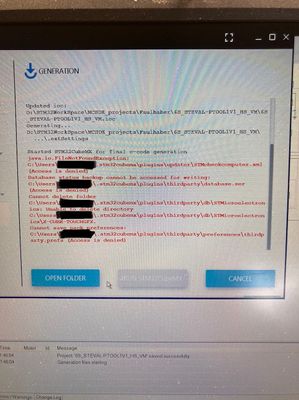

Hello, Did anyone attempt to use the motor profiler toolkit with these boards : STM32 IHM07M1 & STM32F401RE? I configured mine following the "motor control mode" from ST website and the program starts but then nothing happens and the following error ...

Resolved! Is it possible to migrate from STM32G431 to the STM32F745 or STM32F769? I need to go from G431 to F769, but can't find any documentation. Any F7 chip would work too.

I saw multiple resources on different conversions between chips, such as AN5094 (between F3 and G4), but I can't find anything for G4 to F7.Is there a step by step process to follow that has a program do most of the work, something similar to MCSDK, ...

Hi, I Use NUCLEOF446RE and X-NUCLEO-IHM08M1 for running a motor. It works for a motor with 24V power supply. But however, if I use 36V power supply and run motor profiler to estimate the parameters. It fails to rotate. Need Suggestions?

When Motor profiler is used to test the motor for its parameters, it keeps on checking with the possible current (18A, 14A, 9A, 6A, etc..). After sometime a message popup "Speed measurement takes too long time". I don't know the reason behind this. I...

Resolved! what does mean : "cut-off frequency and Execution rate" in St motor control Workbench

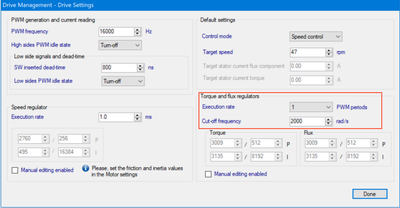

Hello, do you have any application on the use of variables:execution rateCut-off frequency

I am using HALL sensor mode on Tim4 and PWM generation with TIM1. I don't understand now how do i read hall sensor status .

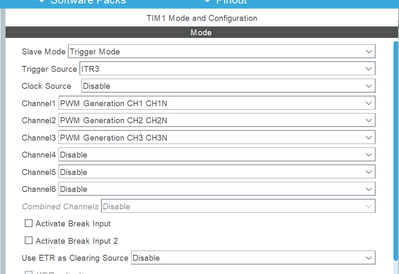

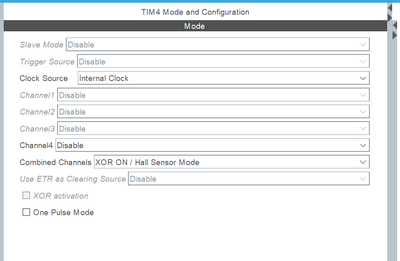

HAL_TIMEx_ConfigCommutEvent(&htim1, TIM_TS_ITR3, TIM_COMMUTATION_TRGI);// HAL_TIM_IC_Start(&htim4, TIM_CHANNEL_2); HAL_TIMEx_HallSensor_Start_IT(&htim4);here is my config setting:below is my capturecall back function.void HAL_TIM_IC_CaptureCallback...

Cannot use utility link tool shown in the IHM001 user guide

STM32 Nucleo Packs - Motor Control FOC and 6-step solutions for three-phase, low-voltage and low-current motorsI am following the user manual guide for the P-Nucleo-IHM001 kit. I have installed the ST-link driver, but cannot open the utility link too...

Issue about STM32F746ZG + IHM08M1

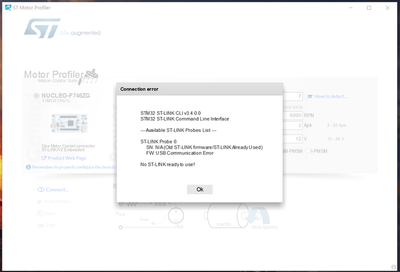

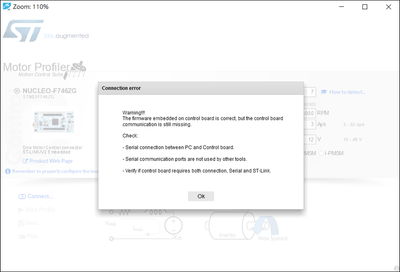

HiI want to use STM32F746ZG and IHM08M1 to control BLDC and PMSM.I already remove recommended bridges and resistor, but I have some issue.1. F746ZG can’t connect motor profiler.if I only use a USB, there will shows an error. if I use USB and ST-Li...
