The development kit schematic appears to have SMPS connections centered on pins E1, F1, G1 and G2, but later versions of STMCube list these pins as "No Connect"See snips from my Orcad schematic that I'm working on and ST's en.MB1246-e02 development k...
Hi all,I am using STM's STM32H750IBT6 in our design.I am in design stage and while designing for MCU power, I came across with following queries:1. I understand that LQFP176 package does not have VDDLDO pin and for VCORE/VCAP I need to supply from ex...

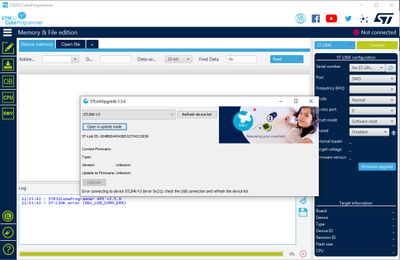

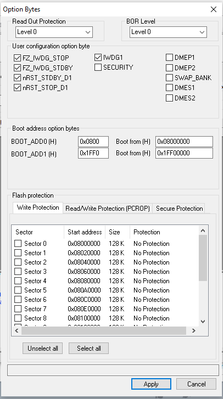

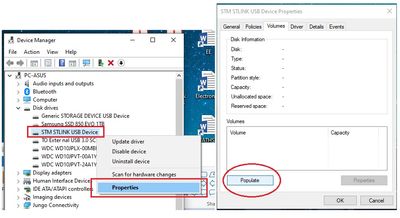

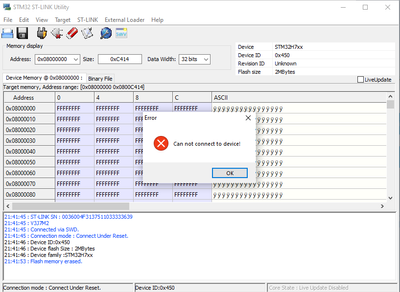

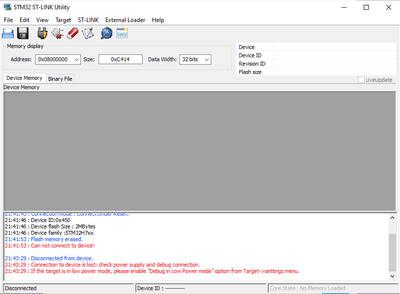

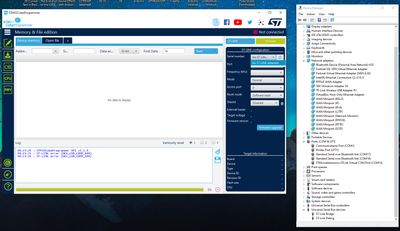

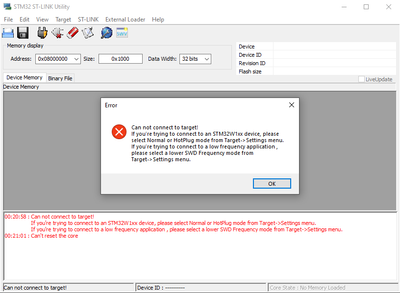

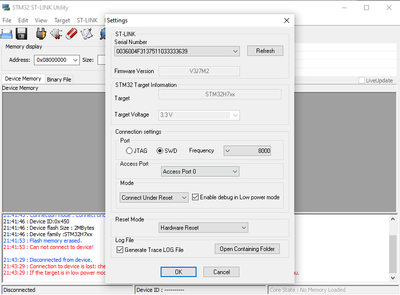

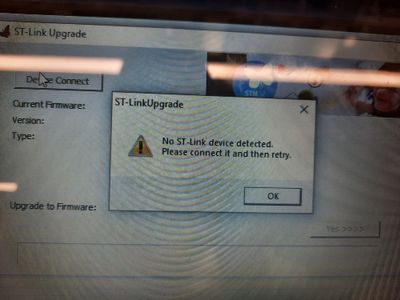

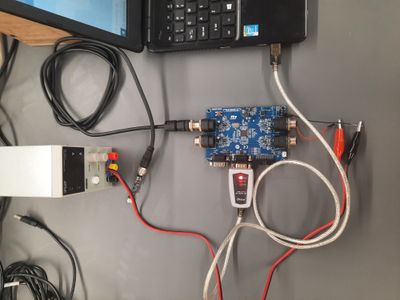

Hello,I get this file in my board. What is the problem?Updated all drivers, tried setting BOOT0 to high and then updated them but still nothing, any ideas?P.S.I tried to run one code was working fine. When tried to load other then this happend.
I'm pretty deep into my design already but when i was looking for a schematic the other day I stumbled upon the EVALUATION BOARD TERMS OF USE. The legal speak there is pretty confusing, but I see nothing on the ST website that defines the NUCLEO-F767...
I have a requirement to interface 8 numbers of Wiznet Modules (Wiz830MJ) with STM32L496. Since i need to interface more than 4 modules so i cannot manage with standard FMC SRAM interface. So I am planning to use a decoder (74HC138D) and generate 8 di...
Hi, I have a Nucleo 144 STM32H743ZI2 and I try to convert 3.3v to 5v with level converter to send signal to a driver. I bought a Level Converter MH but when I measure the high voltage, marks 2.5V and in the low voltage 3.2v. I tried putting 3.3v from...
The typesetting of the second picture is inconsistent with that of the datesheet, does it exist? In addition, what is the meaning of E3 and E4, and what is the meaning of "X"
