Resolved! ST-Link connect ok for Nucleo_G474RE, but NOT for Nucleo_G491RE
Hi, I really have much exprience with many STM32 products (STM32H7, STM32F4, STM32L, STM32G0, STM32G4).Typically for first board check of new PCB I use ST-Link.I have a weird problem, that my ST-LINK refuses to connect to STM32G491 devices (neither o...
Resolved! STM32H757I-Eval Board w/ External IO Connectors
Hey Guys,So I have this Board and I have a couple of questions:1 - Last week I wanted to connect a sensor to the board, to learn some communication protocol stuff. I noticed that the board PINs (in green) are too close to each other, so, the usual RP...
STM32L151c8t6 PCB design problems
hi we haveseveral boards in need of the stm32L151C8t6 and we have some stock of the mcu in question the problem is that all the pcbs 'from JLCPCB' have this weird issue were the mcu is stuck and i have to manually poke thenrst pin multiple time for i...
Nucleo decoupling for VDDA and VDD

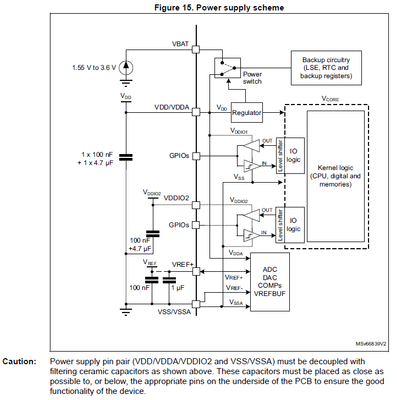

I'm new to STM32 and designing my first STM32F446RE-64 pin PCB. For reference and education, I'm using the Nucleo-64 STM32F446 board, the STMF4 datasheet and the STMF4 getting started with MCU hardware development guide. I have the following questi...
SM32F4 PCR_ON connected to GND

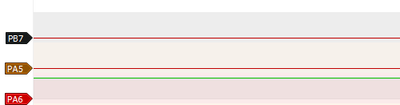

Hi,we have an STM32F27ZI with VDD at 3.6V.We connected by mistake PDR_ON to GND while we drive the NRST with an external voltage monitor as in the picture.reset circuit to NRSTPower upPower downYellow -> 3.6, Purple -> Reset, Green-> PDR_ON In additi...
Resolved! STM32U5 B-U585I-IOT02A unable to connect to device after TrustZone example execution
Hi,I have run the example code STM32Cube_FW_U5_V1.1.1\Projects\B-U585I-IOT02A\Examples\GPIOGPIO_IOToggle_TrustZone and I can no longer connect to the B-U585I-IOT02A board via STM32CubeProgrammer to disable TrustZone. I have the ST-LINK error message ...
Resolved! STM32L432KC communication with microSD card Reader via SPI
I am following this video: https://www.youtube.com/watch?v=aqSNz26Cuio&t=35s Hardware:STM32 Nucleo-32 for STM32L432Adafruit microSDcard adapter: https://www.adafruit.com/product/4682Samsung 32GB EVO (red) microSD cardSoftware:STM32CubeIDEThe board us...
Resolved! Higher GPIO control than VDD
Hello.I use STM32G071GBU6, and I designed the VDD voltage to use 1.8V.I have some questions on the board.1. 3.3V GPIO OUTPUT CONTROL- Should I set the GPIO pin of the MCU to open drain and connect it?2. 3.3 Volt UART Communication ( TX,RX)- Shou...
Resolved! Which tool can program OTP memory of STM32F7?
Subj.Cannot find this in CubeProgrammer v 2.6.0 or ST-Link utility.The OTP is 1024 bytes at 0x1FF0F000.
