Ask questions and find answers on STM32 hardware set-ups, including schematic-related challenges, debugging probes, power configurations, and more.
In STLink upgrade download for linux, in the following path: stsw-link007/readme.txttitled STLink firmware upgrade applicationsthe following text paragraph:"On Linux, users must be granted with rights for accessing the ST-Link USB devices. To do...
We have already received 2 deliveries of STLINK V2/ISOL from well-known suppliers, which display a lower voltage and also partly do not work with our products.Unfortunately, we have not yet received an answer from support and currently do not know ho...
STLINK-V3MINIE how to adapt the 14 pin 1,27mm spacing cable to a more convenient 2,54mm spacing connector? I only can found 10 pin or 20 pin adapters and not the 14 pin adapter as used on the STLINK-V3MINE
Hello,I received my STM32F446ret6-based PCB for my student project, PCB was already assembled from the JLCPCB factory and I can't program it through the SWD header with ST-link. I checked every trace on PCB with schematic and measured continuity with...
When I try to debug the standard led toggle example I get the No ST-LINK detected message,Board: STM32H7A3ZIT6QHost: Windows 11IDE: STM32CubeIDE 1.10.1When I open Device Manager and connect the board to USB there is not one extra device detected. I a...

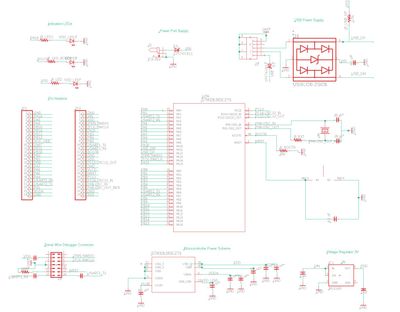

In the picture:pin 1 top left: VDD 3.3V 4 100n to GRND 14 to GRND 15 to VDD 16 to GRNDon their left 1µ and 10n F decoupling VDDA VSSApin 32 top right : VSS 0V GRNDpin 31 10K ohm to GRND 24 SWD clk 23 SWD dio 17 to GRN...
Hello STM enthusiasts,I am reaching out as I am having a puzzling issue with connecting to my STM32 chip with an ST-LINK V2.What I have for a set up is:OS: Windows 10 x64 bitIDE: Atollic TrueStudio v9.1.0Debugger/Programmer: ST-LINK V2Chip: STM32F030...
Can anyone please let me know, how is this possible?
I have got a custom PCB using STM32F4. I don't have any capacitor connected to the VCAP Pin and I wonder if this is necessary or not. Which is the use of VCAP and do I need to add it to my design? What can I do to solve my problem of no having one if...
