Resolved! CAD resources of NUCLEO-H755ZI-Q Revision D-01

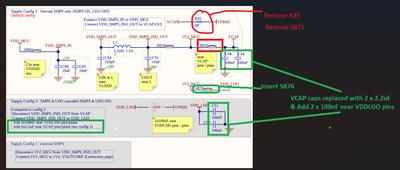

I'm looking for CAD resources of NUCLEO-H755ZI-Q board Revision D-01. Currently en the web-page there are for revision C-01. Thanks
Ask questions and find answers on STM32 hardware set-ups, including schematic-related challenges, debugging probes, power configurations, and more.
I'm looking for CAD resources of NUCLEO-H755ZI-Q board Revision D-01. Currently en the web-page there are for revision C-01. Thanks
Hello All,Can anyone share the list of compatible cameras with STM32N647A0.As, going through STM32N6 DK, camera interfaced is B-CAMS-IMX 5Mpx.Is it possible to interface an 8Mpx camera with STM32N647A0 as one of the camera vendors are in a view to go...
Hello,We have procured STM32U5G9J-DK1 recently. We have to supply a voltage of 3.6V to its Vbat pin. Datasheet of the Microcontroller (STM32U5G9NJ) say that we can supply a Vbat voltage of 1.6V to 3.6V but schematic of this Discovery kit mentions tha...

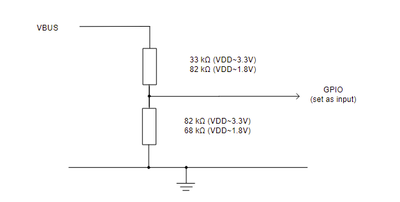

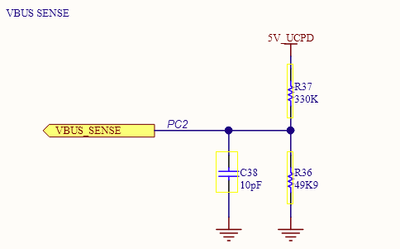

I have Nucleo-L452RE-P and want to try out battery backup for RTC.I connected a CR2032 to Morpho connector 19 (-) and 33 (+) and when I pull the USB plug, the 5V LED LD2 remains on, although a bit less bright.How can that be?

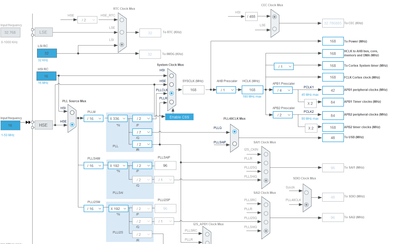

Moved from this thread. Thanks for the previous response — it helped me understand the configuration better. Now I have a follow-up doubt: In STM32CubeIDE, I can see multiple pin options for FDCAN1_RX and FDCAN1_TX in the pinout view. However, wh...
I need to connect a 5 inch 480x800 display to a STM32 eval board.There are many 480x800 DSI display on the market, but all of them are designed for PIand have standard PI 15 pin or 22 pin connector, which has 1 clock, 2 or 4 data pairs and SCL/SDA an...
Hello,I want to try this open-source project. https://www.pcbway.com/project/shareproject/STM32F4xx_Maker_PCB_MakerST_1_ab9866e3.htmlIt's based on an STM32F4xx microcontroller and appears to be designed for general-purpose prototyping. I had a few qu...
The STEVAL-STWINBX1 has 12 test points but there is no serigraphy for identifying them.Also in the UM2965, there is no information about the position of each test points.Where can i find this information ?

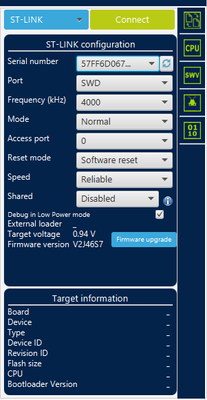

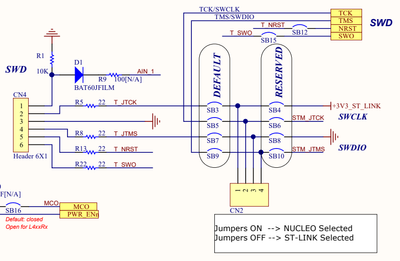

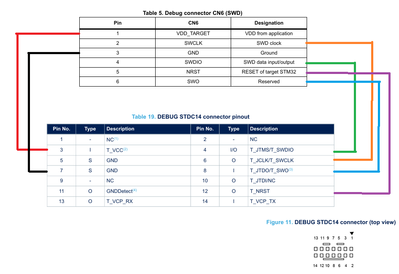

Hello all ! I have just purchased from the ST Micro web shop an STLink V2. I need this to change the firmware on a Dragino LAQ-4 air quality monitor, as recommended by Dragino.In order to perform this upgrade, the ST Link has to be used with the STM3...

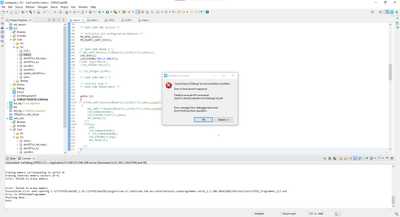

I am using Nucleo-G491RE. I am debugging through the built-in ST-Link using STM32CubeIDE 1.18.1. My design uses opamp1 in standalone mode, which assigns OPAMP1_VOUT to PA2 and OPAMP1_VINM to PA3. What configuration of solder bridges will bring these ...
