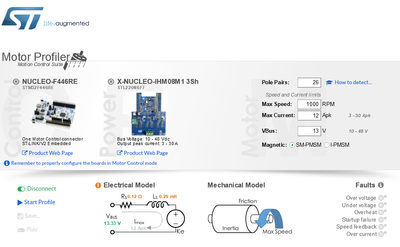

I am trying to get oriented to STM32 environment for BLDC motor control. I have made it through motor profiler, motor control workbench, STM32CubeMX, and can generate a .ioc "I think that is the right file type" and load it to my B-G431B-ESC, butfor ...
The MC SDK is sometimes hard to follow. Has anyone made any UML maps of the SDK or know of any tools to generate these maps? I knew I saw a tool to do this long ago, but now I can't find it again. Seems like a tool that would be widely used. Than...
I am a newer leraning motor FOC control. I study the generated code by MCSDK tool with hall (120 degree). Below is some question:In file mc_config.c, about hall configuration ".hMaxReliableMecSpeedUnit = (uint16_t)(1.15*MAX_APPLICATION_SPEED_UNI...
I want you to help explain and help fix it.Motor 48 volts, 600 watts, number of pairs of poles 52/2=26or the motor is too big, please reply, thank you very much.

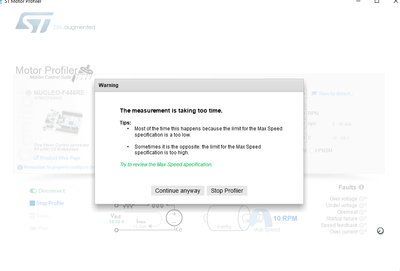

This is an issue with the st motor pilot in MC SDK.I have seen this issue posted a few times before and they fixed it by changing baud rates but that isn't working for me.It connects under logs says successfully opened port. Next line says on next...
I have written this stepper code with a timer and I am getting different behaviour one out of five times. Maybe there is a good way I can monitor or record the consistency of pulses? But I think putting logs would clog up the code and cause the stepp...

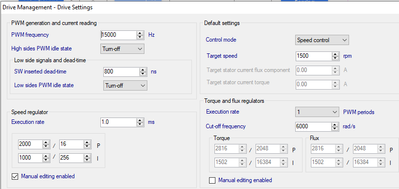

Hi,I have a STEVAL-SPIN3204 board. I have opened the 6step_steval_spin3204 project on the ST motor control workbench, generated the code withe the following parameters using UPDATE button:STM32CubeMx: 6.5.0Target Toolchain: Keil MDK-ARM V5Firmware Pa...
I know pin pa15 is the pwm input physically but it does not activate when building a motor profile or when building the program with stm32cubeMX. I tried manually without luck. verified with an oscilloscope that I am giving pa15 a proper pwm and fr...
Hi there,I'am using STEVAL-SPIN3201 evaluation board. I've reset PA11 for overcurrent output signal visible only to MCU and set PF6 and PF7 for overcurrent protection limit. Also, I've configured TIM1 channel 1 PA8 pin to center aligned pwm mode. Whe...

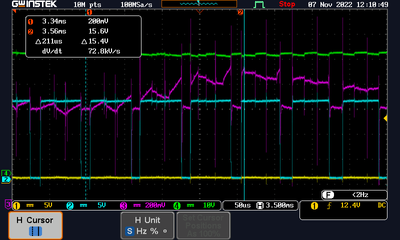

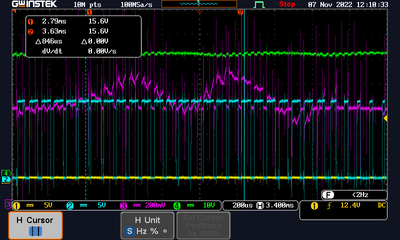

Hey @ allthe setup: custom motor control PCBmicrocontroller: STM32G431CBU6gate-driver: UCC2721, 15Vthree shunt lowside current sense 150 µOhmOPAMP MAXIM MAX40056 20V/Vinverter stage: 24x IRF7759 (4 parallel)gate resistor 4,7 Ohmgate-source resistor 2...
