Ask questions and find answers on STM32 hardware set-ups, including schematic-related challenges, debugging probes, power configurations, and more.
As part of a project work of my studies I have designed a board with which I want to read a KNX bus. Unfortunately, two identical prototypes broke down and I'm not sure why (the components were soldered cleanly and the PCB also made a very good impre...

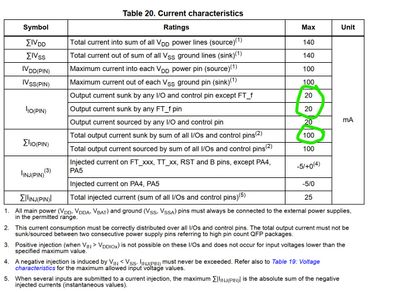

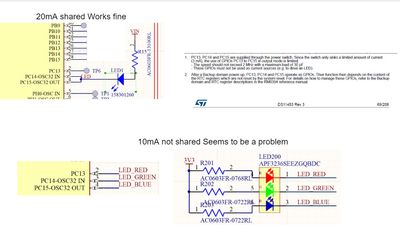

SummaryAt the end of the day, my issue is missing something in documentation. The lesson here, is test thoroughly. Just because it works for a few minutes, doesn't mean forever. Anyway, I've been running >3mA through the pins that are limited before ...
Please help to find out whether STM32L011F3U6TR mcu boot0/PB9 pin has internal pull-up/pull-down resistor feature. There is no mention that boot0 pin is special in this respect, ie no internal pull-up/pull-down resistor. On my board, unable to bring...
I want to be sure of the interconnects between the STlink and STM32 that will give me full debug capability using the CUBEIDE development environment. It would require 4 connections; 3.3v,gnd, SCLK(PA13) and SDIO(PA14). Some STM docs identify two add...
I have stm32f407zgt6 board. Came to work with Touch. On tft, I use Touch on xpt2046 via spi, on the stm32_f4x (DevEBox) board, the processor pins are wired as sck - pb0, miso-pb2, mosi- pf12. Pins data, CubeMX cannot map like any of the 3 spi on boar...
HiWe have a board with STM32F769BIT6 MCU. When we drive the board with 3.3V, MCU current consumption is about 400~450 mA and it gets really hot!When we drive the board with voltages below 3V, for example 2.5V, it takes about 20~30 mA and stays cool a...
I am miniaturizing the STM32F767ZI for a project I am working on and would like to have it function identically to the standard STM32F767ZI. Part of this includes having the ST-Link aspect of the board so we can program it via USB. I have not been ab...
So just yesterday I programmed/reprogrammed my custom board that has a STM32F746NGH6 MCU just fine from STM32CubeIDE. Always have programmed without any issues on 5 custom boards I made. Today (02/09/2021) on trying to download the program with a sli...
