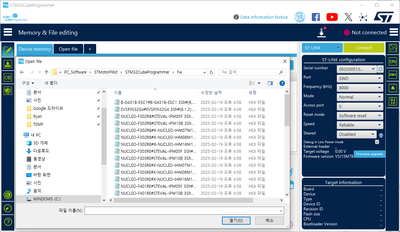

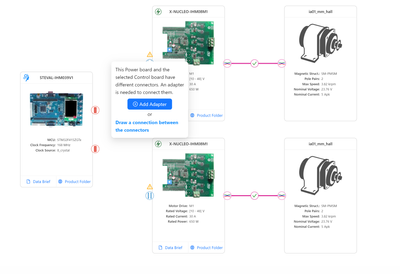

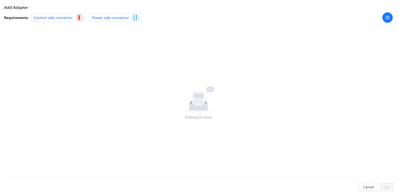

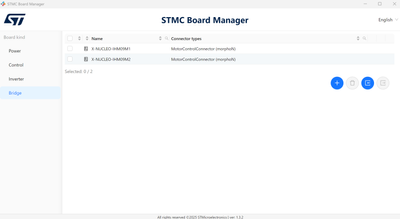

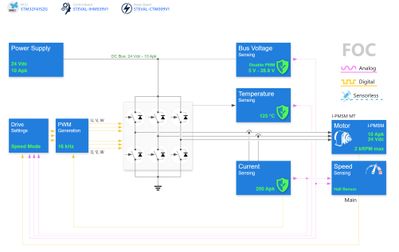

Hi,I’m trying to generate code for a dual-BLDC FOC setup using an STEVAL-IHM039V1 together with two X-NUCLEO-IHM08M1 boards in MC Workbench 6.4.1.For this combination you need an adapter board to go from the motor-control connector to the Morpho conn...

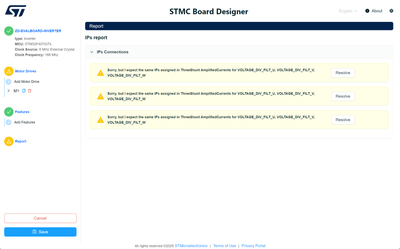

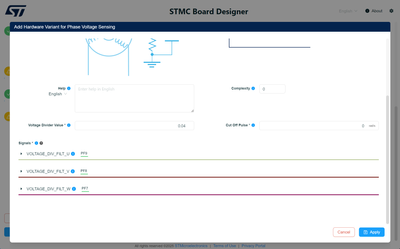

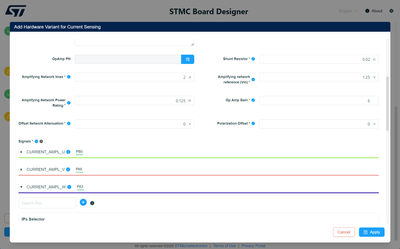

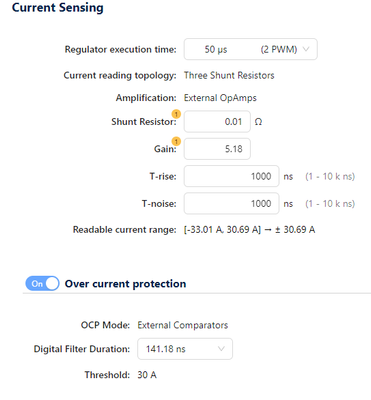

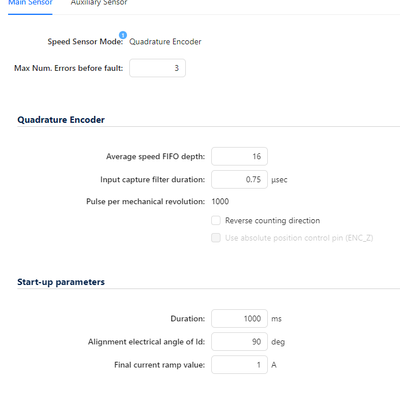

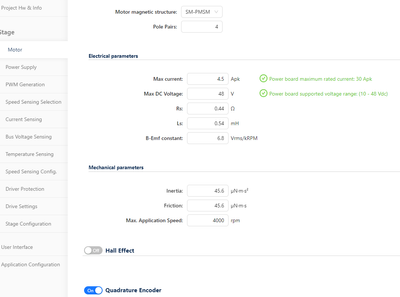

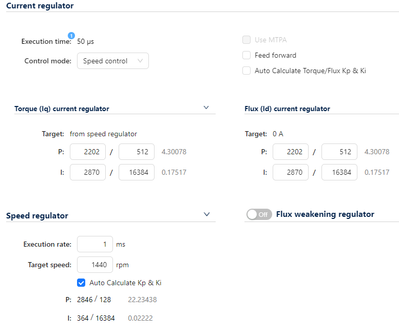

Hello Community,I have a problem with the STM Motor Control Workbench 6.3. I have hardware for FOC motor control. For the current measurement, I am using three shunts with differential current measurement, integrated op-amps, and an external resistor...

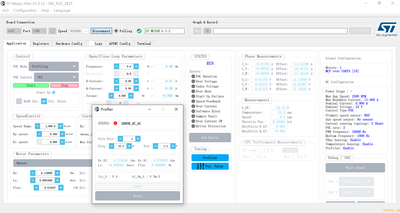

Hi,I'm using a custom STSPINF0 based board and successfully profiled my motor. Using motor pilot, I have obtained a start-up profile which I've also implemented in Motor Control Workbench (6.3.1) as shown below: I've interfaced STSPINF0 with nRF52832...
Hi, I'm using the boatd ihmi08. I would like to control the motor in closed loop as a target rotor angle. Is it possible in 6 steps or is the focus much better?

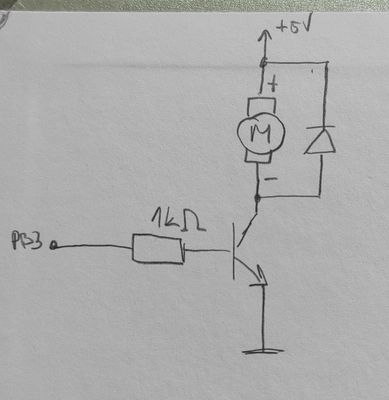

I am using the STM32 NUCLEO-G474RE control board and the NUCLEO-IHM08M1 inverter board for a motor-control application. I want to run a 6-step (trapezoidal) commutation algorithm, so I need to generate PWM signals from the control board to the driver...

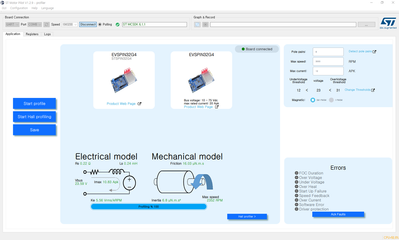

Hello, I did a custom design based on EVLSPIN32G4-ACT, schematic is basically the same apart from board shape and connectors.The hardware is working in general, I successfully got my BLDC motor without an attached load spinning using sensor less spee...
Hi,I want to use the Trace Interface on the STS32PING4, but I can't seem to find the correct Pins for it. I have found a general Overview of where the Pins would be located in the STM32G431 here (PE2-PE6):https://www.st.com/content/ccc/resource/train...
Hi all!I am using the IHM08M1 power board for a BLDC/PMSM motor application, and I have a doubt regarding the L6398 gate driver input logic.My question is:If I use PWM to control the high-side MOSFET and a GPIO to control the low-side MOSFET, is this...
MCSDK Version: 6.4.1 Build: 250722.224358 uint16_t R3_2_SetADCSampPointSectX_OVM(PWMC_Handle_t *pHdl) Line 1246. Should there be Tcase2? Tcase3 here is wrong, Tcase2 with no caller.
I have a strange problem with the ADC/TIM interrupts for a simple FOC motor application on STM32G431 on the B-B431B-ESC eval board. The build uses FreeRTOS.There appears to be some strange behavior with R3_2_TIMx_UP_IRQHandler() and ADC1_2_IRQHandler...
