Hi, I have Nucleo L476RG with IHM04A1 shield. Also i have JK42HS34-0404 stepper motor. My question is how i can connect this and run? I read a lot of documentation, but i cant run it. Any help will be appreciated

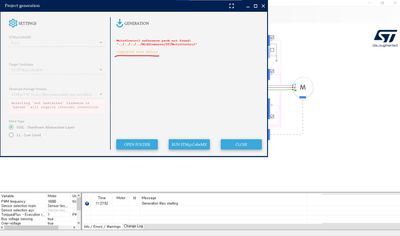

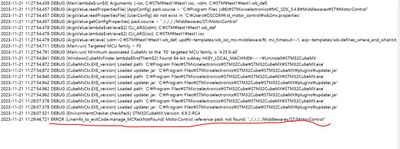

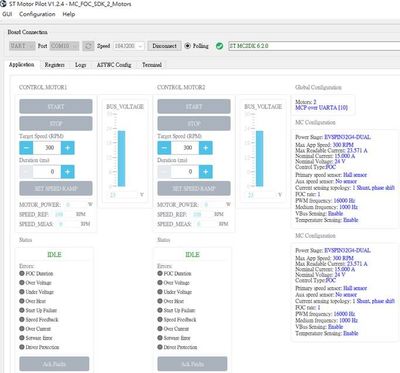

Picture 1 SDK 6picture 2 SDK 5.4.8 Hello,I want to drive a BLDC motor via IHM16M1 with the newly purchased nucleo-stm32f103rb board. But the control cart is not here. Old version SDKs are also available as XML files(f103rb). SDK 6 introduced the .jso...
Hello I am designing a controller that will drive a 3 phase BLDC 0.5kW motor. I choose STM32G474VET3 to generate the signaling with external gate driver and some beefy MOSFETs for that. The MCU has advanced timer controller, and for my applicatio...
In the __weak int16_t STC_CalcTorqueReference(SpeednTorqCtrl_Handle_t *pHandle) function The original ST code contains the below line code.hMeasuredSpeed = SPD_GetAvrgMecSpeedUnit(pHandle->SPD);hError = hTargetSpeed - hMeasuredSpeed;hTorqueReference ...
Hi， I'm working with an Maxon 3-phase 1-pole BLDC motor, following is it's motor data table or attached file. the colum with red rectangle is the motor type we're now dealing with.I wondering how can we get the B-EMF constant in the MC workbench elec...
Hello, Am using in stm32g030f6p6 controller. I just control the bldc fan motor with DRV10983 driver IC. so i new to this driver IC. How to communicate with stm32g030f6p6 to DRV10983 Driver IC with motor. I have using code generate for CubeMx s...
I would like to have precise, slow motion control of a BLDC motor from a hoverboard. This 1 minute video shows it well: https://www.youtube.com/watch?v=JMXz5tzpq7UWould a "STEVAL-SPIN3202" do this?Many thanksMarc
Hi,these days you released STM32 Motor Control Software Development Kit (MCSDK) 6.1 which offers the possibility to create custom boards. The sample boards are very complex and the code is very long. I'm looking for documentation how to write a custo...
Is there any user guide regarding custom board creation in MC workbench 6.1.0? I can start from the X-NUCLEO-IHM05M1 board, but I have to change the HALL sensor input from TIM2 to TIM3.
I am using EVSPIN32F0601S1 kit. now i want to read the adc channel 5 value. current amplified single given to adc channel 5(IN5) in my kit. i want to read the value of that adc channel. how can i read adc value ?
