Forum Posts

Wireless Charging solution Wiki

This Topic is used for Wireless Charging solution 1.Mcu C drive code: GitHub - STMicroelectronics/STWirelessCharging-C-Drivers: Standard C platform-independent drivers for wireless charging ICs

willzhou by ST Employee
  • 8699 Views
  • 19 replies
  • 18 kudos

Beginners question: IHM01A1 + Stepper - What am I doing wrong

I am an owner of the STEVAL-EDUKIT, an inverted pendulum kit by ST with an NUCLEO-F401RE, IHM01A1, Nema17 motor and an rotary encoder + a 2A, 12V power supply. I have no prior experience with motor control whatsoever. See https://www.st.com/content/s...

MDaub.1 by Associate III
  • 570 Views
  • 0 replies
  • 0 kudos

IHM01A1 Shield project - How to create from scratch?

I am using a IHM01A1 Stepper motor shield with an STM32F401. The provided example for one motor from the X-CUBE-SPN1 package works as expected and I can properly control the motor.Now I want to basically recreate the project from scratch as a prober ...

MDaub.1 by Associate III
  • 400 Views
  • 0 replies
  • 0 kudos

Resolved! IGBT gate resistance value calculation.

Q1. How to calculate IGBT gate resistance.I want to use STGD18N40LZ IGBT for operating an inductive switching load. Switching freq:- Between 400Hz to 1KhzCollector to Emitter voltage:- 24V.Avg Max current :- 5A.Q2. What will be impact If I use 1Kohm ...

VAgar.2 by Associate
  • 1746 Views
  • 3 replies
  • 0 kudos

L6599AT gate drive pulses appear unexpectedly

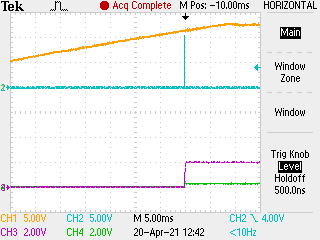

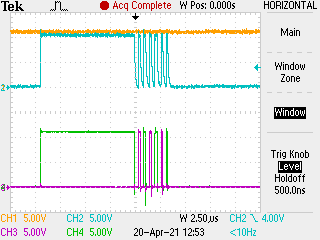

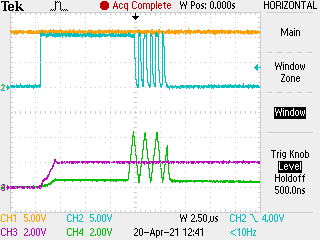

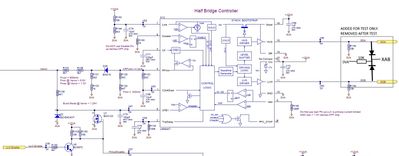

We noticed that there are pulses at the gate drive outputs (pins 15 HVG, & 11 LVG) during the ramp-up of the control voltage (pin 12 VCC).This is what we saw: when VCC reaches about 11V, a sequence of pulses appear on both LVG and HVG. First LVG went...

0693W00000AMIWxQAP.jpg 0693W00000AMIXlQAP.bmp 0693W00000AMIXHQA5.bmp 0693W00000AMIXMQA5.bmp
FBaro.11 by Associate II
  • 902 Views
  • 3 replies
  • 0 kudos
