Why only 20vdc rating when it has 60v NFET?

https://community.st.com/s/question/0D50X0000CCp5LUSQZ/bg431besc1-20vdc-max

Max load on output of STEVAL-ISC005V1

Hello, What is the max load I can put on STEVAL-ISC005V1? I mean, I try to load 100W on PD03, setup to 20V/5A, with an electronic load but something burn on the evaluation board, I thing I make something wrong. Could somebody help me with this topic?

TD350E - interpreting date/batch codes and desaturation sensitivity

I'm presently debugging an intermittent desaturation issue in a stable product platform (stable as in 10+ thousand units over more than a decade).From what I can tell so far the TD350 device is signalling a desat on occasion without a reason I can ob...

The data sheet for the SCR BTW67-1000 is not clear as to which pin is the gate. The diagram shows a pin to be parallel to the centre line of the mounting holes but on the device there is no pin as such. Is the smaller pin with a smaller hole the gate? A

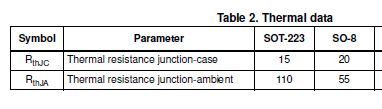

We use the LD1117 and we notice that the Rthja is higher for the SOT-223 that the SO-8; it seems counter intuitive since the SOT-223 is looking more a power package than the SO-8. Please explain? Denis Lachapelle eng. Cysca.ca

How to munt and cool D2PAK IGBT in power bridge

I want to use  STGB8NC60KDT4 IGBT, 15 A 600 V, 3-Pin D2PAK (TO-263)in a motor controlpower bridge, The bridge will be running at 300VDC and about 3-5 amps. At this power there will be 6-12 watts dissipated in the IGBT.I would like to cool them by scr...

We use the VNH3SP30 H-bridge motor driver for an application where we need to drive a motor with peak currents over 30A. The PCB layout are made following the recommendations from datasheet. But the H- bridge die when running the motor. Any help?

Is external protection needed?And what type off protection if it also should be able to handle EMC Burst and Surge pulses?

why in VIPER16LN compensation pin and ground pin is shorting ?

compensation pin and ground pin is shorting ?WHAT ARE THE POSSIBILITIES TO FAIL THAT 2PINS ???

Suggest a controller for DC DC converter with isolation, Specification : Input 24VDC, Output 12VDC 3.2A Kindly suggest any of the controller for suitable for this spec.

I would like to know how to use STP16CP05 for driving a 3 digits -14segments display ?

I am trying to drive a 3 digits - 14 segments display with the STP16CP05, but I cannot find any information related to multiplexing this component.Does someone already did this ? Thanks
