Resolved! component identification code 428WP

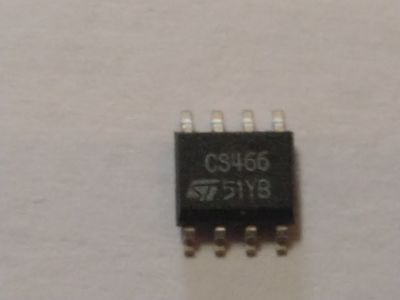

Hi, Can anyone help me identify the component(s)? What kind of components these and what is the type of package (SSOP8 or TSSOP8)? Please see the the pictures. Thank you.
