STM32H723: Window WatchDog (WWDG)

jowakar122
Senior

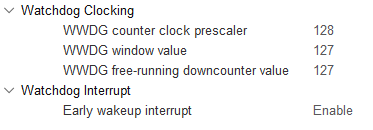

I am using STM32H723 and have implemented WWDG. Below is my configuration:


Are there possibility that when the system resets due to watchdog it would not trigger its ISR.

1 ACCEPTED SOLUTION

Accepted Solutions
jowakar122
Senior

For now I am using a timer to refresh the WWDG when file transfer is happening and it is working fine. But couldn't figure out the reason behind the above mentioned unusual condition.

View solution in original post

8 REPLIES 8
LCE
Principal II

Not sure, never used WWDG, but why not

NVIC_DisableIRQ(WWDG_IRQn);

?

TDK
Super User

The EWI interrupt will function as intended.

There exist scenarios in which it will not be called. For example, if interrupts are disabled, it won't be called.

If you feel a post has answered your question, please click "Accept as Solution".

@TDK I am not disabling its interrupts. Even if I disable the interrupt it will still reset but without triggering its ISR

Are there possibility that when the system resets due to watchdog it would not trigger its ISR.

...

Even if I disable the interrupt it will still reset but without triggering its ISR



Isn't that what you asked for? Scratch head...

Show your code.

If you feel a post has answered your question, please click "Accept as Solution".

@TDK I am using FREERTOS and have a 2 tasks running. Task A looks out for the messages coming from the TCP server and acts accordingly. For OTA when the TCP client (my module) I do this:

				case BLE_Command_Request_OTA 		:
													if(BLE_Request_OTA() != 0)
													{
														char str[50];
														uint16_t count = 0;

														HAL_TIM_Base_Stop(&htim3);
														HAL_TIM_Base_Stop(&htim15);
														HAL_TIM_Base_Stop(&htim16);
														HAL_TIM_Base_Stop(&htim1);

														HAL_NVIC_DisableIRQ(EXTI9_5_IRQn);   	//Z
														HAL_NVIC_DisableIRQ(ADC_IRQn);			//ADC
														HAL_NVIC_DisableIRQ(TIM3_IRQn);			//ENCODER
														HAL_NVIC_DisableIRQ(TIM1_UP_IRQn);		//5 mS Timer

														Flag_BLE_Enable 		= 0;
														Flag_BLE_Read_ON 		= 0;
														Read_Input_Group_Mode 	= 0;
														Flag_BLE_Graph_ON		= 0;
														Flag_Job_Name_Received 	= 0;

														uint16_t temp_loop = 0,ref_count = 0;

														//Time around 2 sec so that any ongoing process gets completed
														for(ref_count = 0; ref_count < 10; ref_count++)
														{
															count = (hwwdg1.Instance->CR & 0x7F);
															for(temp_loop = 0; temp_loop <200; temp_loop++)
															{
																osDelay(1);
															}
															sprintf(str, "Count: %d\n", count);
															Send_String_UART_232((uint8_t*)str);
															HAL_IWDG_Refresh(&hiwdg1);
															HAL_WWDG_Refresh(&hwwdg1);
														}
														alt_second_ms = 0;
														Flag_Time_Second = 0;

														//Making All Digital Outputs Idle
														HAL_GPIO_WritePin(DO_1_GPIO_Port, DO_1_Pin,Pulse_Level_Idle);
														HAL_GPIO_WritePin(DO_2_GPIO_Port, DO_2_Pin,Pulse_Level_Idle);
														HAL_GPIO_WritePin(DO_3_GPIO_Port, DO_3_Pin,Pulse_Level_Idle);
														HAL_GPIO_WritePin(DO_4_GPIO_Port, DO_4_Pin,Pulse_Level_Idle);
														HAL_GPIO_WritePin(DO_5_GPIO_Port, DO_5_Pin,Pulse_Level_Idle);
														HAL_GPIO_WritePin(DO_6_GPIO_Port, DO_6_Pin,Pulse_Level_Idle);
														HAL_GPIO_WritePin(DO_7_GPIO_Port, DO_7_Pin,Pulse_Level_Idle);
														HAL_GPIO_WritePin(DO_8_GPIO_Port, DO_8_Pin,Pulse_Level_Idle);

														Flag_DMA_ON = 0;
														File_Name_Send_String();
//														Send_New_Data(Resp_Bytes,Resp_Length);
														BLE_Push_Data_DMA_Tx_Buffer(Resp_Bytes,Resp_Length);	//Added 30.09.25

														for(temp_loop = 0; temp_loop < 100; temp_loop++)
														{
															osDelay(1);
														}
														Transmit_Page_ID(Page_OTA);

														Flag_OTA_Request_Received = 1;


														temp_loop = 0;
														while(1)
														{
															  temp_loop++;
															  if(temp_loop >= 250)
															  {
																  temp_loop = 0;
																  count = (hwwdg1.Instance->CR & 0x7F);

																  HAL_GPIO_TogglePin(LED_RED_GPIO_Port,LED_RED_Pin);
//																  //Refresh @ everey 250 mS
																  sprintf(str, "WD: %d\n", count);
																  Send_String_UART_232((uint8_t*)str);
																  HAL_IWDG_Refresh(&hiwdg1);
																  HAL_WWDG_Refresh(&hwwdg1);
															  }
															  osDelay(1);
														}
													}
													break;

Here WD is printed couple of times and my system resets due to watchdog without its ISR being triggered. In he other tasks I initialize TFTP client as the file transfer is done using TFTP.

jowakar122
Senior

I had a doubt about RTOS blocking the WWDG ISR. So I have implemented without RTOS and the issue persists.

int main(void)
{

  /* USER CODE BEGIN 1 */

  /* USER CODE END 1 */

  /* MPU Configuration--------------------------------------------------------*/
  MPU_Config();

  /* Enable the CPU Cache */

  /* Enable I-Cache---------------------------------------------------------*/
  SCB_EnableICache();

  /* Enable D-Cache---------------------------------------------------------*/
  SCB_EnableDCache();

  /* MCU Configuration--------------------------------------------------------*/

  /* Reset of all peripherals, Initializes the Flash interface and the Systick. */
  HAL_Init();

  /* USER CODE BEGIN Init */

  /* USER CODE END Init */

  /* Configure the system clock */
  SystemClock_Config();

  /* USER CODE BEGIN SysInit */

  /* USER CODE END SysInit */

  /* Initialize all configured peripherals */
  MX_GPIO_Init();
  MX_USART3_UART_Init();
  MX_TIM24_Init();
  MX_LWIP_Init();
  MX_WWDG1_Init();
  /* USER CODE BEGIN 2 */
  HAL_UART_Transmit(&huart3, "OS Starts\n", 10, 10);
  /* USER CODE END 2 */

  /* Infinite loop */
  /* USER CODE BEGIN WHILE */
  while (1)
  {
	  HAL_WWDG_Refresh(&hwwdg1);
	  HAL_GPIO_TogglePin(GPIOB, LED_GREEN_Pin);
	  MX_LWIP_Process();
	  if(!FLAG_OTA)
	  {
		  if((FLAG_LINK) && (!FLAG_TCP_CONNECTED))
		  {
			  tcp_client_init();
		  }
	  }
	  else
	  {
		  if(!FLAG_TFTP_CON)
		  {
			  HAL_UART_Transmit(&huart3, "TFTP\n", 5, 5);
			  tftp_init_client();
//			  HAL_Delay(10);
		  }

		  if(FLAG_TFTP_CON) { if(!OACK_RECV) { send_rrq_periodic(); } }

		  if(Flag_TFTP_Error) { HAL_UART_Transmit(&huart3, "ERROR\n", 6, 5); /*NVIC_SystemReset();*/ }

		  if(Flag_FILE_RECVED)
		  {
			  uint32_t t_buf[1] = {tsize};
			  if(FLASH_If_Erase(ADDR_FLASH_SECTOR_7_BANK1, 1) == FLASHIF_OK)
			  {
				  if((FLASH_If_Write(ADDR_FLASH_SECTOR_7_BANK1, t_buf, 1)) != FLASHIF_OK)
				  {
					  strcpy(debug_string, "\r------>ERROR: Writing file size in flash<------\n");
					  HAL_UART_Transmit(&huart3, (uint8_t*)debug_string, strlen(debug_string), 10);
				  }
			  }
			  Flag_FILE_RECVED = 0;
//			  NVIC_SystemReset();
		  }
		}
		HAL_Delay(100);
    /* USER CODE END WHILE */

    /* USER CODE BEGIN 3 */

  }
  /* USER CODE END 3 */
}

This is what was printed in my log:




jowakar122
Senior

For now I am using a timer to refresh the WWDG when file transfer is happening and it is working fine. But couldn't figure out the reason behind the above mentioned unusual condition.
