stm32h750b-dk connector pinouts

[tjota]

Hi everyone!

Does anyone have the link to the schematic of stm32h750b-dk. I'm new to this world but I found the schematic for other boards. By schematic I mean the correspondence between the name of the pins as marked on the board and the "internal" name that is used to access that pin in the CubeMX. For example, for stm32f7 I can see that D0 correspondes to PC7, D7 to PI3, etc.

Thanks in advance for your help.

Best,

TJota

[STTwo-32]

Hello @tjota and welcome to the ST Community.

Schematics for this board are available under schematic pack in this link (MB1381). Also, for pin naming, you can have a look at the UM2488.

Best Regards.

STTwo-32

[mƎALLEm]

Hello @tjota and welcome to the ST community,

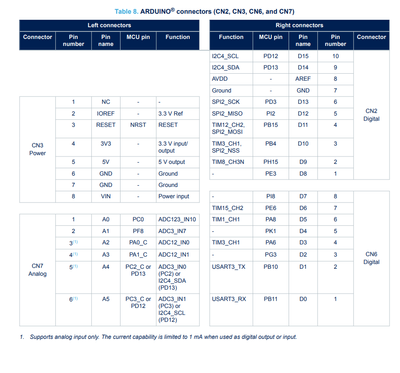

I'm not sure about your request but the Arduino connector pin description is provided in the user manual of the board UM2488: /Table 8:

+ How to find STM32 board schematics

Hope that helps

[Andrew Neil · Accepted solution]

---

@tjota wrote:

I'm new to this world

---

Welcome to the ST World.

ST always have a Product Page for each product - that's the place to go for all documentation & resources related to a product.

Schematics will be on the 'CAD Resources' tab:

https://www.st.com/en/evaluation-tools/stm32h750b-dk.html#cad-resources

---

@tjota wrote:

I mean the correspondence between the name of the pins as marked on the board and the "internal" name that is used to access that pin in the CubeMX. For example, for stm32f7 I can see that D0 correspondes to PC7, D7 to PI3, etc.

---

That should also be in the User Manual (UM) - which will be on the 'Documentation' tab:

https://www.st.com/en/evaluation-tools/stm32h750b-dk.html#documentation

[tjota]

It did. Thank you so much!
