stm32cubeMX bug???

[dqsh06]

Hello,

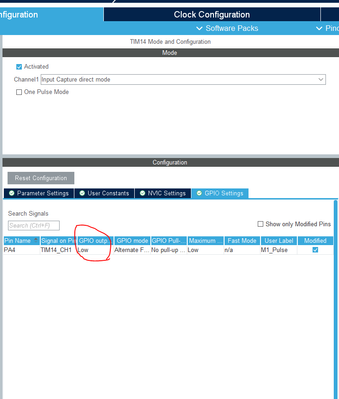

I am now using STM32CubeMX to config STM32G030F6P6, I want to use TIM14 to capture pulse, so I configged to Input Capture direct mode, which is obviously input port, but GPIO setting becomes GPIO output Low. is this a stm32cubeMX bug?

please confirm.

Thanks

@GMA

[SofLit]

Hello,

Check the generated code. Is there something weird in it?

[dqsh06]

hello, @SofLit

I have changed chip to STM32G030C8T6, because STM32G030F6P6 cannot use HSE.

but for STM32G030C8T6, the cubeMX is also something strange.

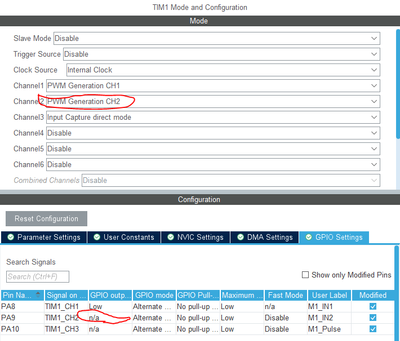

tim1, channel2 is a PWM output, but the GPIO setting, just like a input capture.

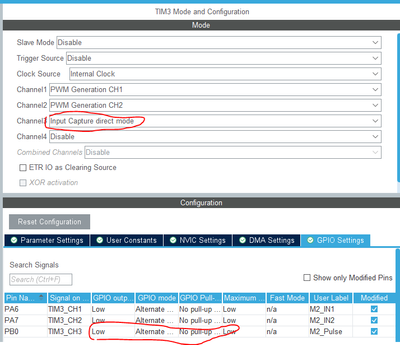

tim3, channel3 is a input capture, but GPIO setting like a PWM output.

I think it is a bug of cubeMX, I have generated the code. from code, I cant see it is correct or not.

only output pins have GPIO configs.

you can config your cubeMX and see the result.

thanks.

[SofLit]

Hello,

I've moved your second question in a separated thread.

Now regarding your main issue, I've already suggested you to check if the generated code is wrong, and I think you didn't it. I did it from my side, and the generated code is correct for TIM14:

void HAL_TIM_Base_MspInit(TIM_HandleTypeDef* htim_base)
{
  GPIO_InitTypeDef GPIO_InitStruct = {0};
  if(htim_base->Instance==TIM14)
  {
  /* USER CODE BEGIN TIM14_MspInit 0 */

  /* USER CODE END TIM14_MspInit 0 */
    /* Peripheral clock enable */
    __HAL_RCC_TIM14_CLK_ENABLE();

    __HAL_RCC_GPIOF_CLK_ENABLE();
    /**TIM14 GPIO Configuration
    PF0-OSC_IN (PF0)     ------> TIM14_CH1
    */
    GPIO_InitStruct.Pin = GPIO_PIN_0;
    GPIO_InitStruct.Mode = GPIO_MODE_AF_PP;
    GPIO_InitStruct.Pull = GPIO_NOPULL;
    GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_LOW;
    GPIO_InitStruct.Alternate = GPIO_AF2_TIM14;
    HAL_GPIO_Init(GPIOF, &GPIO_InitStruct);

  /* USER CODE BEGIN TIM14_MspInit 1 */

  /* USER CODE END TIM14_MspInit 1 */

  }

}

So PF0 is configured as Alternate function for Timer input.

I think the issue is in the GUI not in the code generation: internal ticket Internal ticket 195604 for follow-up.

[dqsh06]

Thanks!

How about the GDB step over issue?

where can I see the other thread?

Regards,

[SofLit]

---

@dqsh06 wrote:

How about the GDB step over issue?

where can I see the other thread?

Regards,

---

https://community.st.com/t5/stm32cubemx-mcus/having-a-st-link-gdb-issue-i-and-i-m-using-vs-code/td-p/738536
