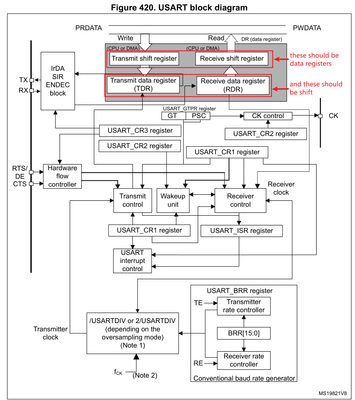

In RM0351 Reference manual Figure 420. USART block diagram, the positions of shift registers and data registers (of both Transmit and Receive) are wrong; their positions should be swapped.
Solved! Go to Solution.
2024-03-20 11:31 AM - edited 2024-04-05 05:53 AM
Hello @embed_elephant and welcome to the ST Community 😊.
I confirme the issue on the diagram. I've escalated to the concerned team for correction (Under internal ticket number 178365).
Thank you for your contribution.
Best Regards.
STTwo-32
To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
2024-03-20 11:31 AM - edited 2024-04-05 05:53 AM
Hello @embed_elephant and welcome to the ST Community 😊.
I confirme the issue on the diagram. I've escalated to the concerned team for correction (Under internal ticket number 178365).
Thank you for your contribution.
Best Regards.
STTwo-32
To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
2024-03-20 11:52 AM

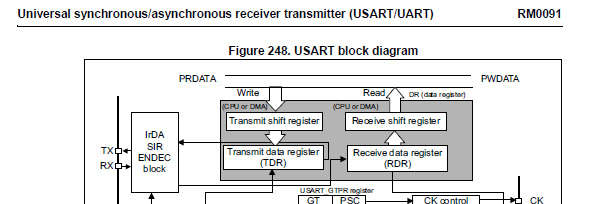

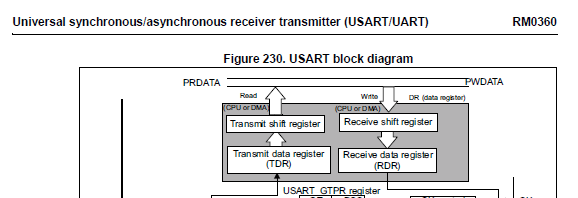

Looks like the same mistake is repeated in many RMs; eg,
2024-03-20 12:07 PM
Hello @Andrew Neil
We will check other RMs too. And we will be grateful for all your contributions.
Best Regards.
STTwo-32
To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
2024-03-20 06:31 PM
Thank you for your quick response to this issue. This community is a great place to learn new stuff.
