Are there any documentations about FSMC layout?

OW1TY2 · ‎2024-04-15

I am now designing a board for STM32F103VET6 and would like to use the FSMC to control the TFT LCD (320x480 resolution)

May I ask if there are any notes or guides that mention the layout requirements? Such as what conductor impedance should the data lines have and what is the maximum difference in length between data lines?

Thanks!

Andrew Neil · ‎2024-04-15

Did you check out the 'Documentation' tab on the Product Page?

https://www.st.com/en/microcontrollers-microprocessors/stm32f103ve.html#documentation

A complex system that works is invariably found to have evolved from a simple system that worked.
A complex system designed from scratch never works and cannot be patched up to make it work.

OW1TY2 · ‎2024-04-15

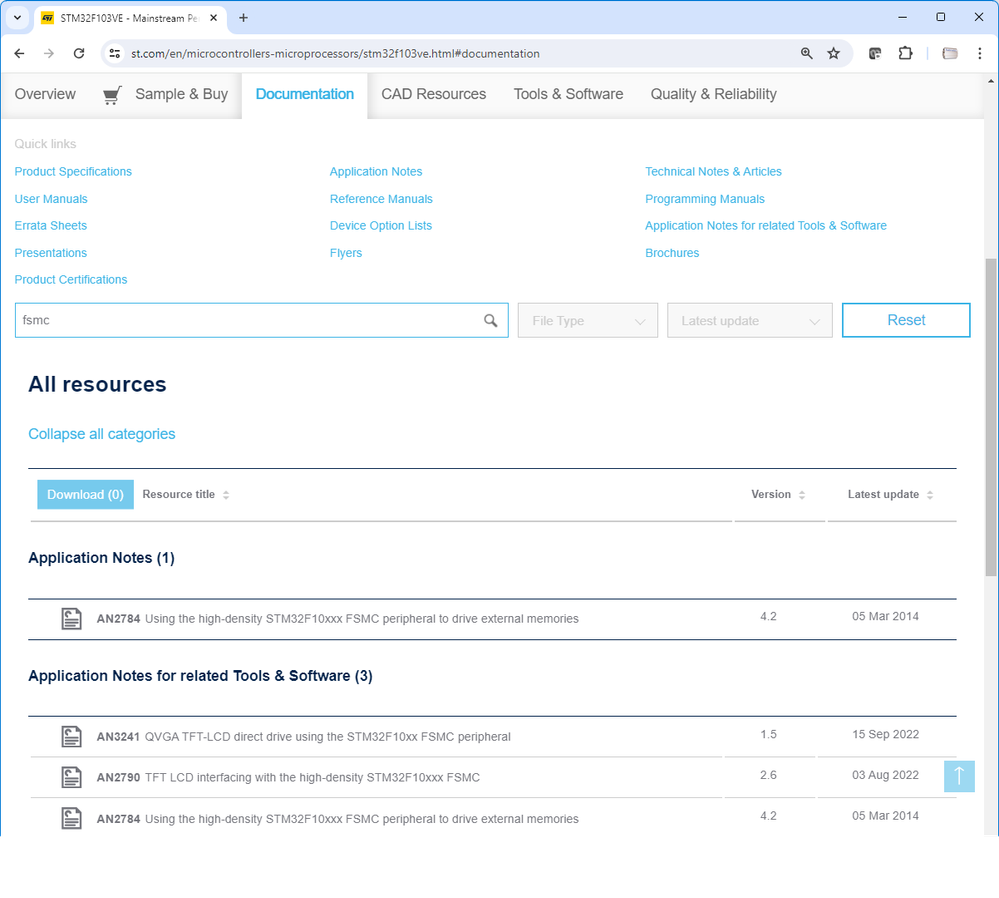

Yes, but none of the 3 FSMC-related documents mentioned about the trace impedance.

Andrew Neil · ‎2024-04-15

There's 4 documents.

Would've helped to say that you'd already looked in those!

A complex system that works is invariably found to have evolved from a simple system that worked.
A complex system designed from scratch never works and cannot be patched up to make it work.

OW1TY2 · ‎2024-04-15

There's three... AN2784 appeared twice. And none of them mentioned about the trace impedance.
