How to use Nucleo-F103 ST LINK to program external target?

[Suresh_M]

Dear Experts,

Greets,

I trying to program STM32F103RCT6 micro controller using NUCLEO-F103RB evaluation board , but I am unable to debug and flash the code , i tried all the possible ways but , it didn't worked .Can somebody help me to solve this .

Best regards,

Suresh

[Suresh_M]

Yes , it is working with Keil IDE .

CubeProgrammer response add in attachment sir please find it, VDD target is connected.

[AScha.3]

ok,

- come on :

-> target has no power (or vdd connection to st-link missing) = this cannot work.

connect vdd...and/or power target.

[Suresh_M]

I noticed that , but feeding 3.3V to the controller & it is running the existing code , i struct at this point only

[AScha.3]

ok,

but the st-link software checking the vdd on his connection,

and if to low, it stops working, because it assumes, target has no power.

So look for the vdd pin on st-link and give some 3v3 to it, so it shows not 0,0V - then it should work.

[Suresh_M]

It is not working , is there any possibility to not being sensed 3.3V ?

[Andrew Neil]

Someone was asking that recently for an ST-Link v3 - but I can't seem to find that now.

It is a pretty standard thing that a debug probes needs to see the target voltage - that's why the pin is there on CN4!

Surely, you can find a point somewhere on your board to provide the 3.3V to the ST-Link?

[Suresh_M]

ST link is being powered with USB cable , iam using Nucleo board so it is with 3.3V from usb itself

[AScha.3]

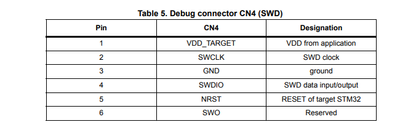

see cn4 :

pin 1 has to get 3v3 .

[Andrew Neil]

---

@Andrew Neil wrote:

Someone was asking that recently for an ST-Link v3

---

No, it was ST-Link V2 - and it's here:

STLink V2 SWD operation without connecting VDD_TARGET PIN

In particular, see:

https://community.st.com/t5/stm32cubeprogrammer-mcus/stlink-v2-swd-operation-without-connecting-vdd-target-pin/m-p/838601/highlight/true#M8994

Although the fact that you have it working in Keil does cast doubt on that.

I can't remember if it was ST-Link or J-Link or something else, but ISTR something had a command-line option to ignore the target voltage measurement...

Is there such an option in your Keil setup?

Maybe ask on the Keil forum ...
