CubeMX problem (bug?)
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Report Inappropriate Content
‎2017-03-08 05:33 AM
Hi,
I'm having problems with STM32 CubeMX (v4.19.0) during the setup of the ADC2 peripheral (may be a bug...).

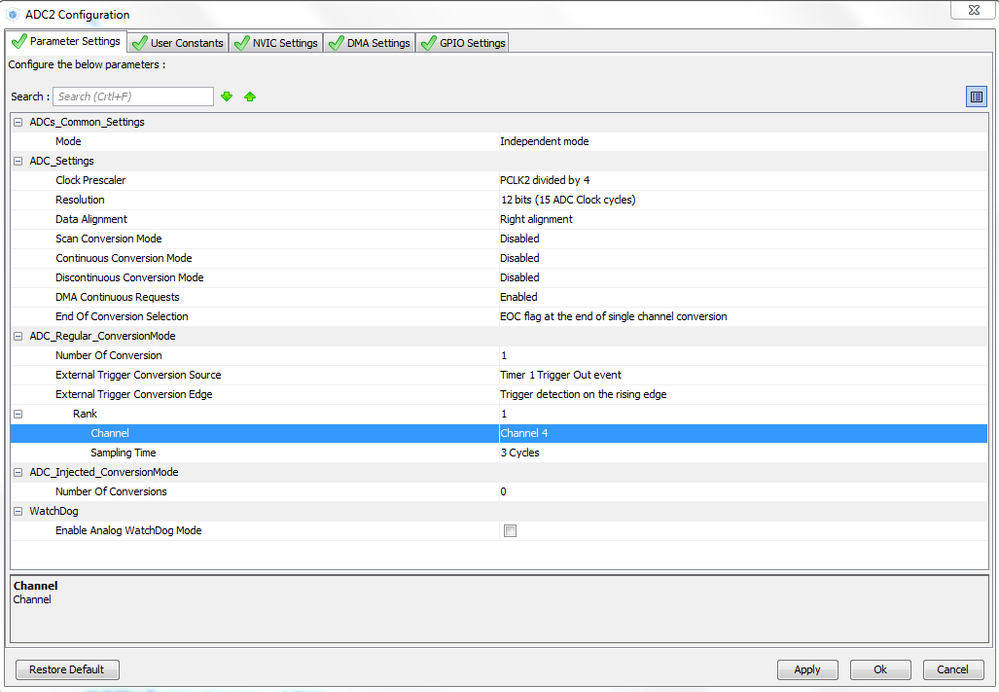

Even if the number of conversion is ONE, I have two different ranks both pointing to the same ADC channel (please refer to the attached screenshot).
I looked into the ioc and some lines don't convince me (I have only channel 4 active):
'...
ADC2.Channel-20\&sharpChannelRegularConversion=ADC_CHANNEL_4
ADC2.Channel-4\&sharpChannelRegularConversion=ADC_CHANNEL_4ADC2.Channel-8\&sharpChannelRegularConversion=ADC_CHANNEL_4...'
Is there any .ioc file cleaner that can fix this behavior?
Thanks in advance
Flavio
#cubemx-bugSolved! Go to Solution.
