Where can I find FUS binary file with FUS version 1.0.2?
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Report Inappropriate Content
‎2021-09-30 7:48 AM
I just got my STM32WB55 Nucleo boards with FUS v.0.5.3 and trying to upgrade firmware but neither of the provided .bin files in "repository" ("stm32wb5x_FUS_fw.bin" or "stm32wb5x_FUS_fw_for_fus_0_5_3.bin") work. I get the same message for both when trying to program the files using STM32CubeProgrammer tool. (Note: message "Firmware Delete Successful" was present).

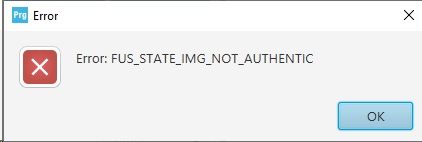

Attaching a picture of the error message I get.
Note: I tried to accomplish the same thing using both user USB DFU and ST-LINK interfaces.
Here's log from my flash attempts:
10:43:51 : Warning: Option Byte: nSWboot0, value: 0x0, was not modified.
10:43:51 : Warning: Option Byte: nboot0, value: 0x1, was not modified.
10:43:51 : Warning: Option Byte: nboot1, value: 0x1, was not modified.
10:43:51 : Warning: Option Bytes are unchanged, Data won't be downloaded
10:43:51 : Succeeded to set nSWboot0=0 nboot1=1 nboot0=1
10:43:51 : Memory Programming ...
10:43:51 : Opening and parsing file: 0x495_FUS_Operator.bin
10:43:51 : File : 0x495_FUS_Operator.bin
10:43:51 : Size : 8 KBytes
10:43:51 : Address : 0x08000000
10:43:51 : Erasing memory corresponding to segment 0:
10:43:51 : Erasing internal memory sectors [0 1]
10:43:51 : Download in Progress:
10:43:51 : File download complete
10:43:51 : Time elapsed during download operation: 00:00:00.292
10:43:51 : Application is running, Please Hold on...
10:43:51 : Reconnecting...
10:43:51 : Reconnected !
10:43:52 : FUS_STATE_IDLE
10:43:52 : Read FUS state command execution finished
10:43:52 : UPLOADING ...
10:43:52 : Size : 4 Bytes
10:43:52 : Address : 0x20010010
10:43:52 : Read progress:
10:43:52 : Data read successfully
10:43:52 : Time elapsed during the read operation is: 00:00:00.000
10:44:29 : Option byte command : -ob nSWBOOT0=1
10:44:29 : PROGRAMMING OPTION BYTES AREA ...
10:44:29 : Bank : 0x00
10:44:29 : Address : 0x58004020
10:44:29 : Size : 96 Bytes
10:44:29 : Reconnecting...
10:44:35 : Reconnected !
10:44:35 : UPLOADING OPTION BYTES DATA ...
10:44:35 : Bank : 0x00
10:44:35 : Address : 0x58004020
10:44:35 : Size : 96 Bytes
10:44:35 : Bank : 0x01
10:44:35 : Address : 0x58004080
10:44:35 : Size : 8 Bytes
10:44:35 : OPTION BYTE PROGRAMMING VERIFICATION:
10:44:35 : Option Bytes successfully programmed
10:44:46 : Old Firmware delete ...
10:44:46 : Warning: Option Byte: nboot0, value: 0x1, was not modified.
10:44:46 : Warning: Option Byte: nboot1, value: 0x1, was not modified.
10:44:46 : Reconnecting...
10:44:51 : Reconnected !
10:44:51 : Succeeded to set nSWboot0=0 nboot1=1 nboot0=1
10:44:51 : Memory Programming ...
10:44:51 : Opening and parsing file: 0x495_FUS_Operator.bin
10:44:51 : File : 0x495_FUS_Operator.bin
10:44:51 : Size : 8 KBytes
10:44:51 : Address : 0x08000000
10:44:51 : Erasing memory corresponding to segment 0:
10:44:51 : Erasing internal memory sectors [0 1]
10:44:51 : Download in Progress:
10:44:51 : File download complete
10:44:51 : Time elapsed during download operation: 00:00:00.292
10:44:51 : Application is running, Please Hold on...
10:44:58 : Reconnecting...
10:44:58 : Reconnected !
10:44:58 : Warning: FUS_STATE_IMG_NOT_FOUND, Flash already empty !
10:45:00 : Firmware delete Success
10:45:00 : Download Stack/FUS image at address 0x803a000 ...
10:45:00 : Memory Programming ...
10:45:00 : Opening and parsing file: stm32wb5x_FUS_fw_for_fus_0_5_3.bin
10:45:00 : File : stm32wb5x_FUS_fw_for_fus_0_5_3.bin
10:45:00 : Size : 24492 Bytes
10:45:00 : Address : 0x0803A000
10:45:00 : Erasing memory corresponding to segment 0:
10:45:00 : Erasing internal memory sectors [58 63]
10:45:00 : Download in Progress:
10:45:00 : File download complete
10:45:00 : Time elapsed during download operation: 00:00:00.666
10:45:00 : Firmware Upgrade process started ...
10:45:00 : Application is running, Please Hold on...
10:45:12 : Reconnecting...
10:45:12 : Reconnected !
10:45:12 : Error: FUS_STATE_IMG_NOT_AUTHENTIC
Solved! Go to Solution.
Accepted Solutions
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Report Inappropriate Content
‎2021-10-01 7:13 AM
Try setting RDP option byte to 0xBB and then back to 0xAA.
Then try to upgrade the FUS once again.
Hope this helps you !
Thanks
Imen
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Report Inappropriate Content
‎2021-10-01 6:58 AM
Hello @AOris.1​,
It maybe the error caused by the previous FW installation.
Make sure to perform a partial mass erase of the flash memory and ensure a clean memory before any programming.
When your question is answered, please close this topic by choosing Select as Best. This will help other users find that answer faster.
Imen
Thanks
Imen
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Report Inappropriate Content
‎2021-10-01 7:06 AM
Imen,
​
Thank you for the response but I must say that I have already tried that and yet still same error.​
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Report Inappropriate Content
‎2021-10-01 7:13 AM
Try setting RDP option byte to 0xBB and then back to 0xAA.
Then try to upgrade the FUS once again.
Hope this helps you !
Thanks
Imen
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Report Inappropriate Content
‎2021-10-04 7:57 AM
Hi @AOris.1​ ,
There is step by step mentioned in FW release note describing how to upgrade/install the FUS :
How to flash the Wireless Coprocessor Binary via SWD/JTAG by ST-LINK (STM32CubeProgrammer GUI)
- STEP 1: Use STM32CubeProgrammer GUI
- Version 2.7.0 or higher.
- It gives access to Firmware Upgrade Service (FUS) (AN5185 : ST firmware upgrade services for STM32WB Series.) through Bootloader.
- It is currently available as Graphical User Interface (GUI) mode (or Command Line Interface (CLI) mode).
- STEP 2: Access to SWD Interface (system flash)
- For P-NUCLEO-WB55.Nucleo :
- Power ON via ST-LINK and Jumper JP1(USB_STL)
- For P-NUCLEO-WB55.USBDongle :
- remain switch SW2 to Boot1
- Connect P-NUCLEO-WB55.USBDongle
- open STM32CubeProgrammer GUI and select “ST-LINK�?
- in ST-LINK configuration: (Port: SWD) then select “Connect�?
- remain switch SW2 to Boot1
- STEP 3: select “Start FUS�? in Firmware Upgrade Services
- STEP 4: Read and upgrade FUS Version
- it can been obtained selecting “Read FUS infos�?
- 00050300: FUSv0.5.3 => Must be updated using STEP 5.
- 01020000: FUSv1.2.0 => Up to date, you can download the new wireless stack using STEP 7.
- 010X0Y00: FUSv1.x.y => Must be updated using STEP 6 (when x < 2).
- 00050300: FUSv0.5.3 => Must be updated using STEP 5.
- STEP 5: Download latest FUS for only FUS v0.5.3 upgrade
- in Firmware Upgrade Services: (File Path: [stm32wb5x_FUS_fw_for_fus_0_5_3.bin], Start Adress: [Install@])
- then select “Firmware Upgrade�? Please check Firmware Upgrade Services Binary Table for Install@ parameter depending of the binary.
- STEP 6: Download latest FUS
- in Firmware Upgrade Service: (File Path: [FUS_Binary], Start Adress: [Install@])
- then select “Firmware Upgrade�? Please check Firmware Upgrade Services Binary Table for Install@ parameter depending of the binary.
- STEP 7: Download new wireless stack (after “FW Delete�? if requested)
- in Firmware Upgrade Service: (File Path: [Wireless_Coprocessor_Binary], Start Adress: [Install@])
- then select “Firmware Upgrade�? (with “Verify download�? and “Start stack after upgrade�?) Please check Firmware Upgrade Services Binary Table for Install@ parameter depending of the binary. (optional: activate “Anti-Rollback�? on downloaded binary) If you need to perform FUS related manipulations, you always need to START the FUS in case the FUS is not running.
- STEP 8: Revert to default configuration: in Option Bytes menu for User Configuration set: nSWboot0=1 (checked) nboot1=1 nboot0=1
Can you please try it and tell me if it is OK ?
Houda
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Report Inappropriate Content
‎2021-10-04 8:08 AM
Houda,
good points but I've been through those already... Here's the log:
11:02:39 : STM32CubeProgrammer API v2.8.0
11:03:11 : ST-LINK SN : 066BFF485651836687021822
11:03:11 : ST-LINK FW : V2J38M27
11:03:11 : Board : P-NUCLEO-WB55
11:03:11 : Voltage : 3.24V
11:03:11 : SWD freq : 4000 KHz
11:03:11 : Connect mode: Normal
11:03:11 : Reset mode : Software reset
11:03:11 : Device ID : 0x495
11:03:11 : Revision ID : Rev Y
11:03:11 : Debug in Low Power mode enabled.
11:03:11 : UPLOADING OPTION BYTES DATA ...
11:03:11 : Bank : 0x00
11:03:11 : Address : 0x58004020
11:03:11 : Size : 96 Bytes
11:03:11 : Bank : 0x01
11:03:11 : Address : 0x58004080
11:03:11 : Size : 8 Bytes
11:03:11 : UPLOADING ...
11:03:11 : Size : 1024 Bytes
11:03:11 : Address : 0x8000000
11:03:11 : Read progress:
11:03:11 : Data read successfully
11:03:11 : Time elapsed during the read operation is: 00:00:00.007
11:03:23 : Warning: Option Byte: nSWboot0, value: 0x0, was not modified.
11:03:23 : Warning: Option Byte: nboot0, value: 0x1, was not modified.
11:03:23 : Warning: Option Byte: nboot1, value: 0x1, was not modified.
11:03:23 : Warning: Option Bytes are unchanged, Data won't be downloaded
11:03:23 : Succeeded to set nSWboot0=0 nboot1=1 nboot0=1
11:03:23 : Memory Programming ...
11:03:23 : Opening and parsing file: 0x495_FUS_Operator.bin
11:03:23 : File : 0x495_FUS_Operator.bin
11:03:23 : Size : 8 KBytes
11:03:23 : Address : 0x08000000
11:03:23 : Erasing memory corresponding to segment 0:
11:03:23 : Erasing internal memory sectors [0 1]
11:03:24 : Download in Progress:
11:03:24 : File download complete
11:03:24 : Time elapsed during download operation: 00:00:00.284
11:03:24 : Application is running, Please Hold on...
11:03:24 : Reconnecting...
11:03:24 : Reconnected !
11:03:28 : Reconnecting...
11:03:28 : Reconnected !
11:03:29 : StartFus activated successfully
11:03:29 : FUS_STATE_IDLE
11:03:29 : Start FUS execution finished
11:03:41 : Warning: Option Byte: nSWboot0, value: 0x0, was not modified.
11:03:41 : Warning: Option Byte: nboot0, value: 0x1, was not modified.
11:03:41 : Warning: Option Byte: nboot1, value: 0x1, was not modified.
11:03:41 : Warning: Option Bytes are unchanged, Data won't be downloaded
11:03:41 : Succeeded to set nSWboot0=0 nboot1=1 nboot0=1
11:03:41 : Memory Programming ...
11:03:41 : Opening and parsing file: 0x495_FUS_Operator.bin
11:03:41 : File : 0x495_FUS_Operator.bin
11:03:41 : Size : 8 KBytes
11:03:41 : Address : 0x08000000
11:03:41 : Erasing memory corresponding to segment 0:
11:03:41 : Erasing internal memory sectors [0 1]
11:03:42 : Download in Progress:
11:03:42 : File download complete
11:03:42 : Time elapsed during download operation: 00:00:00.286
11:03:42 : Application is running, Please Hold on...
11:03:42 : Reconnecting...
11:03:42 : Reconnected !
11:03:43 : FUS_STATE_IDLE
11:03:43 : Read FUS state command execution finished
11:03:43 : UPLOADING ...
11:03:43 : Size : 4 Bytes
11:03:43 : Address : 0x20010010
11:03:43 : Read progress:
11:03:43 : Data read successfully
11:03:43 : Time elapsed during the read operation is: 00:00:00.001
11:05:04 : Old Firmware delete ...
11:05:04 : Warning: Option Byte: nSWboot0, value: 0x0, was not modified.
11:05:04 : Warning: Option Byte: nboot0, value: 0x1, was not modified.
11:05:04 : Warning: Option Byte: nboot1, value: 0x1, was not modified.
11:05:04 : Warning: Option Bytes are unchanged, Data won't be downloaded
11:05:04 : Succeeded to set nSWboot0=0 nboot1=1 nboot0=1
11:05:04 : Memory Programming ...
11:05:04 : Opening and parsing file: 0x495_FUS_Operator.bin
11:05:04 : File : 0x495_FUS_Operator.bin
11:05:04 : Size : 8 KBytes
11:05:04 : Address : 0x08000000
11:05:04 : Erasing memory corresponding to segment 0:
11:05:04 : Erasing internal memory sectors [0 1]
11:05:04 : Download in Progress:
11:05:04 : File download complete
11:05:04 : Time elapsed during download operation: 00:00:00.289
11:05:04 : Application is running, Please Hold on...
11:05:11 : Reconnecting...
11:05:11 : Reconnected !
11:05:11 : Warning: FUS_STATE_IMG_NOT_FOUND, Flash already empty !
11:05:13 : Firmware delete Success
11:05:13 : Download Stack/FUS image at address 0x803a000 ...
11:05:13 : Memory Programming ...
11:05:13 : Opening and parsing file: stm32wb5x_FUS_fw_for_fus_0_5_3.bin
11:05:13 : File : stm32wb5x_FUS_fw_for_fus_0_5_3.bin
11:05:13 : Size : 24492 Bytes
11:05:13 : Address : 0x0803A000
11:05:13 : Erasing memory corresponding to segment 0:
11:05:13 : Erasing internal memory sectors [58 63]
11:05:13 : Download in Progress:
11:05:13 : File download complete
11:05:13 : Time elapsed during download operation: 00:00:00.655
11:05:13 : Firmware Upgrade process started ...
11:05:13 : Application is running, Please Hold on...
11:05:25 : Reconnecting...
11:05:25 : Reconnected !
11:05:25 : Error: FUS_STATE_IMG_NOT_AUTHENTIC
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Report Inappropriate Content
‎2021-10-04 8:15 AM
Imen,
IT WORKED!!!!!!!!!!!!!!!!!!!!! Thank you!!!!
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Report Inappropriate Content
‎2021-10-04 8:16 AM
Can you explain why this works, please?
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Report Inappropriate Content
‎2021-10-04 8:33 AM
Really glad that the issue is solved :smiling_face_with_smiling_eyes:
This is a trick to clean the flash that I used before upgrading the board, which helps to sort out from such unexpected situation;)
Imen
Thanks
Imen
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Report Inappropriate Content
‎2021-10-04 8:39 AM
Good enough for an answer. I was more interested in the details because I'm suspecting there's a bug in the fw/sw(?) But it's up to the ST engineers to figure that out and "outsiders" shouldn't be involved in the direct resolution process.
Thank you, again.
