HI ST Team,
Concerning the GitHub issue https://github.com/STMicroelectronics/STM32CubeWB0/issues/6

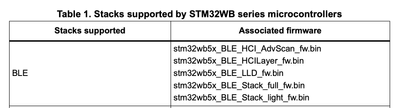

In AN5289 – "How to build wireless applications with STM32WB MCUs", Table 1 lists multiple BLE stack options for STM32WB5x devices, including:
- stm32wb5x_BLE_Stack_full_fw.bin
- stm32wb5x_BLE_Stack_light_fw.bin
In the current lib https://github.com/STMicroelectronics/STM32CubeWB0/tree/main/Middlewares/ST/STM32_BLE/stack/lib, only these static libs are present:
- stm32wb0x_ble_stack.a
- stm32wb0x_ble_stack_controller_only.a
There is no separate stm32wb0x_ble_stack_light.a, which is expected as the lightweight alternative to the full BLE stack.
Clarification Request:
- Can you please confirm if the *_controller_only.a is the intended lightweight replacement for the missing light.a?
- If yes, can you kindly update the GitHub folder README or documentation to reflect this equivalence (i.e., "controller only.a is functionally similar to the BLE light stack")?
- If not, can the missing light.a A variant be added?
This would help developers optimise for RAM-constrained devices like the STM32WB05 (24KB RAM), especially when targeting single-link BLE applications.
Thank you for the clarification and support!
1 ACCEPTED SOLUTION
Accepted Solutions

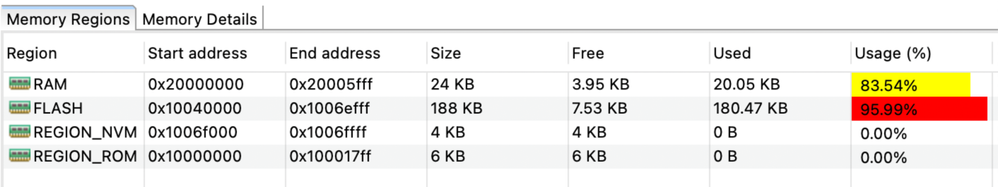

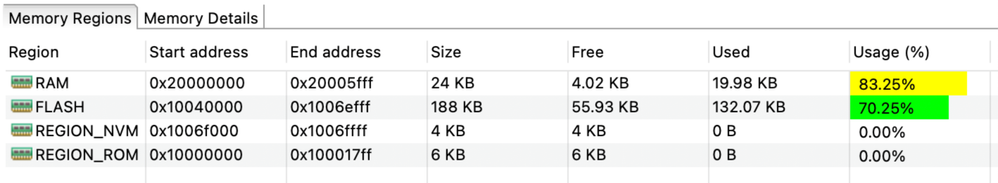

The major problem we are facing when we build the image with a release build it's going around 80% and debug it's going beyond 90%
Release Build
Debug Build
app_conf.h
/* USER CODE BEGIN Header */
#ifndef APP_CONF_H
#define APP_CONF_H
/* Includes ------------------------------------------------------------------*/
#include "stm32wb0x.h"
/* USER CODE BEGIN Includes */
/* USER CODE END Includes */
/**
* Define to 1 if LSE is used, otherwise set it to 0.
*/
#define CFG_LSCLK_LSE (1)
/******************************************************************************
* Application Config
******************************************************************************/
/**< generic parameters ******************************************************/
/**
* Define Tx Power Mode
*/
#define CFG_TX_POWER_MODE (0) /* Tx normal power mode */
/**
* Define Tx Power
*/
#define CFG_TX_POWER (0x18) /* 0x18 <=> 0 dBm */
/**
* Define Advertising parameters
*/
#define CFG_PUBLIC_BD_ADDRESS (0x0280E1AAABAC)
#define CFG_BD_ADDRESS_TYPE HCI_ADDR_STATIC_RANDOM_ADDR
#define CFG_BLE_PRIVACY_ENABLED (0)
#define ADV_INTERVAL_MIN (0x0080)
#define ADV_INTERVAL_MAX (0x00A0)
#define ADV_LP_INTERVAL_MIN (0x0640)
#define ADV_LP_INTERVAL_MAX (0x0FA0)
#define ADV_TYPE (HCI_ADV_EVENT_PROP_LEGACY|HCI_ADV_EVENT_PROP_CONNECTABLE|HCI_ADV_EVENT_PROP_SCANNABLE)
#define ADV_FILTER HCI_ADV_FILTER_NONE
/**
* Define IO Authentication
*/
#define CFG_BONDING_MODE (1)
#define CFG_FIXED_PIN (111111)
#define CFG_ENCRYPTION_KEY_SIZE_MAX (16)
#define CFG_ENCRYPTION_KEY_SIZE_MIN (8)
/**
* Define IO capabilities
*/
#define CFG_IO_CAPABILITY GAP_IO_CAP_DISPLAY_YES_NO
/**
* Define MITM modes
*/
#define CFG_MITM_PROTECTION GAP_MITM_PROTECTION_REQUIRED
/**
* Define Secure Connections Support
*/
#define CFG_SC_SUPPORT GAP_SC_OPTIONAL
/**
* Define Keypress Notification Support
*/
#define CFG_KEYPRESS_NOTIFICATION_SUPPORT GAP_KEYPRESS_NOT_SUPPORTED
/**
* Appearance of device set into BLE GAP
*/
#define CFG_GAP_APPEARANCE (GAP_APPEARANCE_UNKNOWN)
/* USER CODE BEGIN Generic_Parameters */
/* USER CODE END Generic_Parameters */
/**< specific parameters */
/*****************************************************/
/* USER CODE BEGIN Specific_Parameters */
/* USER CODE END Specific_Parameters */
/******************************************************************************
* BLE Stack initialization parameters
******************************************************************************/
/**
* Maximum number of simultaneous radio tasks. Radio controller supports up to
* 128 simultaneous radio tasks, but actual usable max value depends on the
* available RAM.
*/
#define CFG_BLE_NUM_RADIO_TASKS (CFG_NUM_RADIO_TASKS)
/**
* Maximum number of attributes that can be stored in the GATT database in addition to the attributes number already defined for the GATT and GAP services
* (BLE_STACK_NUM_GATT_MANDATORY_ATTRIBUTES value on STM32_BLE middleware, ble_stack.h header file).
*/
#define CFG_BLE_NUM_GATT_ATTRIBUTES (7)
/**
* Maximum number of concurrent Client's Procedures. This value must be less
* than or equal to the maximum number of supported links (CFG_BLE_NUM_RADIO_TASKS).
*/
#define CFG_BLE_NUM_OF_CONCURRENT_GATT_CLIENT_PROC (2)
/**
* Maximum supported ATT MTU size [23-1020].
*/
#define CFG_BLE_ATT_MTU_MAX (247)
/**
* Maximum duration of the connection event in system time units (625/256 us =~
* 2.44 us) when the device is in Peripheral role [0-0xFFFFFFFF].
*/
#define CFG_BLE_CONN_EVENT_LENGTH_MAX (0xFFFFFFFF)
/**
* Sleep clock accuracy (ppm).
*/
#if CFG_LSCLK_LSE
/* Change this value according to accuracy of low speed crystal (ppm). */
#define CFG_BLE_SLEEP_CLOCK_ACCURACY (100)
#else
/* This value should be kept to 500 ppm when using LSI. */
#define CFG_BLE_SLEEP_CLOCK_ACCURACY (500)
#endif
/**
* Number of extra memory blocks, in addition to the minimum required for the
* supported links.
*/
#define CFG_BLE_MBLOCK_COUNT_MARGIN (32)
/**
* Maximum number of simultaneous EATT active channels. It must be less than or
* equal to CFG_BLE_COC_NBR_MAX.
*/
#define CFG_BLE_NUM_EATT_CHANNELS (0)
/**
* Maximum number of channels in LE Credit Based Flow Control mode [0-255].
* This number must be greater than or equal to CFG_BLE_NUM_EATT_CHANNELS.
*/
#define CFG_BLE_COC_NBR_MAX (1)
/**
* The maximum size of payload data in octets that the L2CAP layer entity is
* capable of accepting [0-1024].
*/
#define CFG_BLE_COC_MPS_MAX (247)
/**
* Maximum number of Advertising Data Sets, if Advertising Extension Feature is
* enabled.
*/
#define CFG_BLE_NUM_ADV_SETS (1)
/**
* Maximum number of Periodic Advertising with Responses subevents.
*/
#define CFG_BLE_NUM_PAWR_SUBEVENTS (16)
/**
* Maximum number of subevent data that can be queued in the controller.
*/
#define CFG_BLE_PAWR_SUBEVENT_DATA_COUNT_MAX (8U)
/**
* Maximum number of slots for scanning on the secondary advertising channel,
* if Advertising Extension Feature is enabled.
*/
#define CFG_BLE_NUM_AUX_SCAN_SLOTS (0)
/**
* Maximum number of slots for synchronizing to a periodic advertising train,
* if Periodic Advertising and Synchronizing Feature is enabled.
*/
#define CFG_BLE_NUM_SYNC_SLOTS (0)
/**
* Two's logarithm of Filter Accept, Resolving and Advertiser list size.
*/
#define CFG_BLE_FILTER_ACCEPT_LIST_SIZE_LOG2 (0)
/**
* Maximum number of Antenna IDs in the antenna pattern used in CTE connection
* oriented mode.
*/
#define CFG_BLE_NUM_CTE_ANTENNA_IDS_MAX (0)
/**
* Maximum number of IQ samples in the buffer used in CTE connection oriented mode.
*/
#define CFG_BLE_NUM_CTE_IQ_SAMPLES_MAX (0)
/**
* Maximum number of slots for synchronizing to a Broadcast Isochronous Group.
*/
#define CFG_BLE_NUM_SYNC_BIG_MAX (1U)
/**
* Maximum number of slots for synchronizing to a Broadcast Isochronous Stream.
*/
#define CFG_BLE_NUM_SYNC_BIS_MAX (2U)
/**
* Maximum number of slots for broadcasting a Broadcast Isochronous Group.
*/
#define CFG_BLE_NUM_BRC_BIG_MAX (1U)
/**
* Maximum number of slots for broadcasting a Broadcast Isochronous Stream.
*/
#define CFG_BLE_NUM_BRC_BIS_MAX (2U)
/**
* Maximum number of Connected Isochronous Groups.
*/
#define CFG_BLE_NUM_CIG_MAX (2U)
/**
* Maximum number of Connected Isochronous Streams.
*/
#define CFG_BLE_NUM_CIS_MAX (2U)
/**
* Size of the internal FIFO used for critical controller events produced by the
* ISR (e.g. rx data packets).
*/
#define CFG_BLE_ISR0_FIFO_SIZE (256)
/**
* Size of the internal FIFO used for non-critical controller events produced by
* the ISR (e.g. advertising or IQ sampling reports).
*/
#define CFG_BLE_ISR1_FIFO_SIZE (768)
/**
* Size of the internal FIFO used for controller and host events produced
* outside the ISR.
*/
#define CFG_BLE_USER_FIFO_SIZE (2600)
/**
* If 1, Peripheral Preferred Connection Parameters Characteristic is added in GAP service.
*/
#define CFG_BLE_GAP_PERIPH_PREF_CONN_PARAM_CHARACTERISTIC (0)
/**
* If 1, Encrypted Key Material Characteristic is added in GAP service.
*/
#define CFG_BLE_GAP_ENCRYPTED_KEY_MATERIAL_CHARACTERISTIC (0)
/**
* Number of allocated memory blocks used for packet allocation.
* The use of BLE_STACK_MBLOCKS_CALC macro is suggested to calculate the minimum
* number of memory blocks for a given number of supported links and ATT MTU.
*/
#define CFG_BLE_MBLOCKS_COUNT (BLE_STACK_MBLOCKS_CALC(CFG_BLE_ATT_MTU_MAX, CFG_BLE_NUM_RADIO_TASKS, CFG_BLE_NUM_EATT_CHANNELS) + CFG_BLE_MBLOCK_COUNT_MARGIN)
/**
* Macro to calculate the RAM needed by the stack according the number of links,
* memory blocks, advertising data sets and all the other initialization
* parameters.
*/
#define BLE_DYN_ALLOC_SIZE (BLE_STACK_TOTAL_BUFFER_SIZE(CFG_BLE_NUM_RADIO_TASKS,\
CFG_BLE_NUM_EATT_CHANNELS,\
CFG_BLE_NUM_GATT_ATTRIBUTES,\
CFG_BLE_NUM_OF_CONCURRENT_GATT_CLIENT_PROC,\
CFG_BLE_MBLOCKS_COUNT,\
CFG_BLE_NUM_ADV_SETS,\
CFG_BLE_NUM_PAWR_SUBEVENTS,\
CFG_BLE_PAWR_SUBEVENT_DATA_COUNT_MAX,\
CFG_BLE_NUM_AUX_SCAN_SLOTS,\
CFG_BLE_FILTER_ACCEPT_LIST_SIZE_LOG2,\
CFG_BLE_COC_NBR_MAX,\
CFG_BLE_NUM_SYNC_SLOTS,\
CFG_BLE_NUM_CTE_ANTENNA_IDS_MAX,\
CFG_BLE_NUM_CTE_IQ_SAMPLES_MAX,\
CFG_BLE_NUM_SYNC_BIG_MAX,\
CFG_BLE_NUM_BRC_BIG_MAX,\
CFG_BLE_NUM_SYNC_BIS_MAX,\
CFG_BLE_NUM_BRC_BIS_MAX,\
CFG_BLE_NUM_CIG_MAX,\
CFG_BLE_NUM_CIS_MAX,\
CFG_BLE_ISR0_FIFO_SIZE,\
CFG_BLE_ISR1_FIFO_SIZE,\
CFG_BLE_USER_FIFO_SIZE))
/* USER CODE BEGIN BLE_Stack */
/* USER CODE END BLE_Stack */
/******************************************************************************
* BLE Stack modularity options
******************************************************************************/
#define CFG_BLE_CONTROLLER_SCAN_ENABLED (0U)
#define CFG_BLE_CONTROLLER_PRIVACY_ENABLED (0U)
#define CFG_BLE_SECURE_CONNECTIONS_ENABLED (1U)
#define CFG_BLE_CONTROLLER_DATA_LENGTH_EXTENSION_ENABLED (1U)
#define CFG_BLE_CONTROLLER_2M_CODED_PHY_ENABLED (1U)
#define CFG_BLE_CONTROLLER_EXT_ADV_SCAN_ENABLED (0U)
#define CFG_BLE_L2CAP_COS_ENABLED (0U)
#define CFG_BLE_CONTROLLER_PERIODIC_ADV_ENABLED (0U)
#define CFG_BLE_CONTROLLER_PERIODIC_ADV_WR_ENABLED (0U)
#define CFG_BLE_CONTROLLER_CTE_ENABLED (0U)
#define CFG_BLE_CONTROLLER_POWER_CONTROL_ENABLED (0U)
#define CFG_BLE_CONNECTION_ENABLED (1U)
#define CFG_BLE_CONTROLLER_CHAN_CLASS_ENABLED (0U)
#define CFG_BLE_CONTROLLER_BIS_ENABLED (0U)
#define CFG_BLE_CONNECTION_SUBRATING_ENABLED (0U)
#define CFG_BLE_CONTROLLER_CIS_ENABLED (0U)
#if CFG_BLE_PRIVACY_ENABLED
#undef CFG_BLE_CONTROLLER_PRIVACY_ENABLED
#define CFG_BLE_CONTROLLER_PRIVACY_ENABLED (1U)
#endif
/******************************************************************************
* Low Power
*
* When CFG_FULL_LOW_POWER is set to 1, the system is configured in full
* low power mode. It means that all what can have an impact on the consumptions
* are powered down.(For instance LED, Access to Debugger, Etc.)
*
* When CFG_LPM_SUPPORTED and CFG_FULL_LOW_EMULATED are both set to 1, the system is configured to
* emulate the Deepstop mode without losing the debugger connection and breakpoints nor watchpoints.
*
******************************************************************************/
#define CFG_FULL_LOW_POWER (0)
#define CFG_LPM_SUPPORTED (1)
#define CFG_LPM_EMULATED (0)
/**
* Low Power configuration
*/
#if (CFG_FULL_LOW_POWER == 1)
#undef CFG_LPM_SUPPORTED
#define CFG_LPM_SUPPORTED (1)
#endif /* CFG_FULL_LOW_POWER */
/* USER CODE BEGIN Low_Power 0 */
/* USER CODE END Low_Power 0 */
/**
* Supported requester to the MCU Low Power Manager - can be increased up to 32
* It list a bit mapping of all user of the Low Power Manager
*/
typedef enum
{
CFG_LPM_APP,
/* USER CODE BEGIN CFG_LPM_Id_t */
/* USER CODE END CFG_LPM_Id_t */
} CFG_LPM_Id_t;
/* USER CODE BEGIN Low_Power 1 */
/* USER CODE END Low_Power 1 */
/*****************************************************************************
* Traces
* Enable or Disable traces in application
* When CFG_DEBUG_TRACE is set, traces are activated
*
* Note : Refer to utilities_conf.h file in order to details
* the level of traces : CFG_DEBUG_TRACE_FULL or CFG_DEBUG_TRACE_LIGHT
*****************************************************************************/
/**
* Enable or disable debug prints.
*/
#define CFG_DEBUG_APP_TRACE (0)
/**
* Use or not advanced trace module. UART interrupts to be enabled.
*/
#define CFG_DEBUG_APP_ADV_TRACE (0)
#define ADV_TRACE_TIMESTAMP_ENABLE (0)
#if (CFG_DEBUG_APP_TRACE == 0)
#undef CFG_DEBUG_APP_ADV_TRACE
#define CFG_DEBUG_APP_ADV_TRACE (0)
#endif
#if (CFG_DEBUG_APP_ADV_TRACE != 0)
#include "stm32_adv_trace.h"
#define APP_DBG(...) \
{ \
UTIL_ADV_TRACE_COND_FSend(VLEVEL_L, ~0x0, ADV_TRACE_TIMESTAMP_ENABLE, __VA_ARGS__); \
}
#else
#define APP_DBG(...) printf(__VA_ARGS__)
#endif
#if (CFG_DEBUG_APP_TRACE != 0)
#include <stdio.h>
#define APP_DBG_MSG APP_DBG
#else
#define APP_DBG_MSG(...)
#endif
/* USER CODE BEGIN Traces */
/* USER CODE END Traces */
/******************************************************************************
* Sequencer
******************************************************************************/
/**
* These are the lists of task id registered to the sequencer
* Each task id shall be in the range [0:31]
*/
typedef enum
{
CFG_TASK_BLE_STACK,
CFG_TASK_VTIMER,
CFG_TASK_NVM,
/* USER CODE BEGIN CFG_Task_Id_t */
TASK_LSM6DSO32X_INT,
TASK_LIS2MDL_INT,
TASK_BUTTON,
TASK_USB_DETECT,
TASK_DATA_TRANSFER_BLE_ID,
TASK_DATA_TRANSFER_LPUART_ID,
TASK_DATA_WRITE_FLASH_ID,
TASK_DATA_READ_FLASH_ID,
TASK_DATA_ERASE_FLASH_ID,
TASK_MOTION_DETECTED,
TASK_STATIONARY_DETECTED,
CFG_TASK_DATA_PHY_UPDATE_ID,
CFG_TASK_CONN_INTERV_UPDATE_ID,
CFG_TASK_LINK_CONFIG_ID,
/* USER CODE END CFG_Task_Id_t */
CFG_TASK_NBR, /**< Shall be LAST in the list */
} CFG_Task_Id_t;
/* USER CODE BEGIN DEFINE_TASK */
/* USER CODE END DEFINE_TASK */
/**
* This is the list of priority required by the application
* Each Id shall be in the range 0..31
*/
typedef enum
{
CFG_SEQ_PRIO_0,
CFG_SEQ_PRIO_1,
/* USER CODE BEGIN CFG_SEQ_Prio_Id_t */
/* USER CODE END CFG_SEQ_Prio_Id_t */
CFG_SEQ_PRIO_NBR
} CFG_SEQ_Prio_Id_t;
/**
* This is a bit mapping over 32bits listing all events id supported in the application
*/
typedef enum
{
CFG_IDLEEVT_PROC_GAP_COMPLETE,
/* USER CODE BEGIN CFG_IdleEvt_Id_t */
/* USER CODE END CFG_IdleEvt_Id_t */
} CFG_IdleEvt_Id_t;
/******************************************************************************
* RT GPIO debug module configuration
******************************************************************************/
#define RT_DEBUG_GPIO_MODULE (0)
/* USER CODE BEGIN Defines */
/**
* User interaction
* When CFG_LED_SUPPORTED is set, LEDS are activated if requested
* When CFG_BUTTON_SUPPORTED is set, the push button are activated if requested
*/
#define CFG_LED_SUPPORTED (1)
#define CFG_BUTTON_SUPPORTED (1)
/**
* If CFG_FULL_LOW_POWER is requested, make sure LED and debugger are disabled
*/
#if (CFG_FULL_LOW_POWER == 1)
#undef CFG_LED_SUPPORTED
#define CFG_LED_SUPPORTED (0)
#endif /* CFG_FULL_LOW_POWER */
/* USER CODE END Defines */
#endif /*APP_CONF_H */
