LCD shift during display

BLS_Karo
Visitor

BeforeBeforeAfterAfterHello everyone.

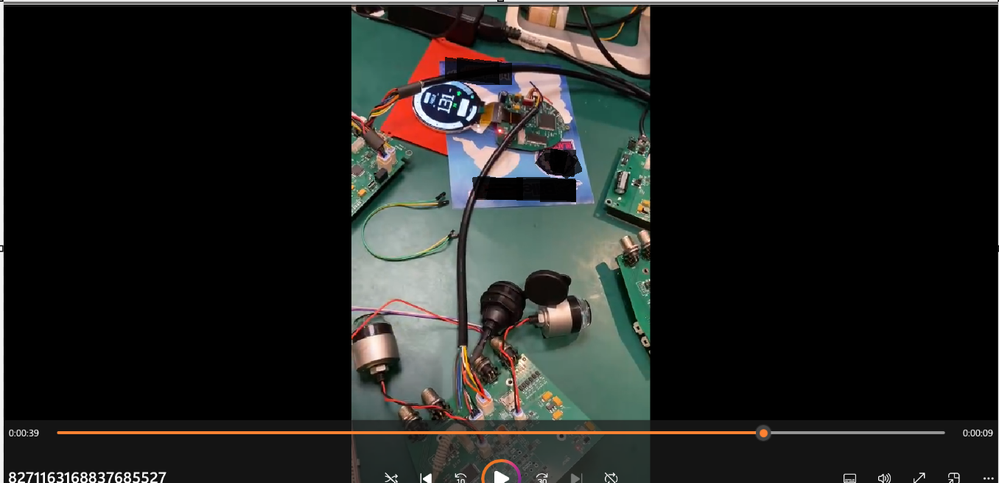

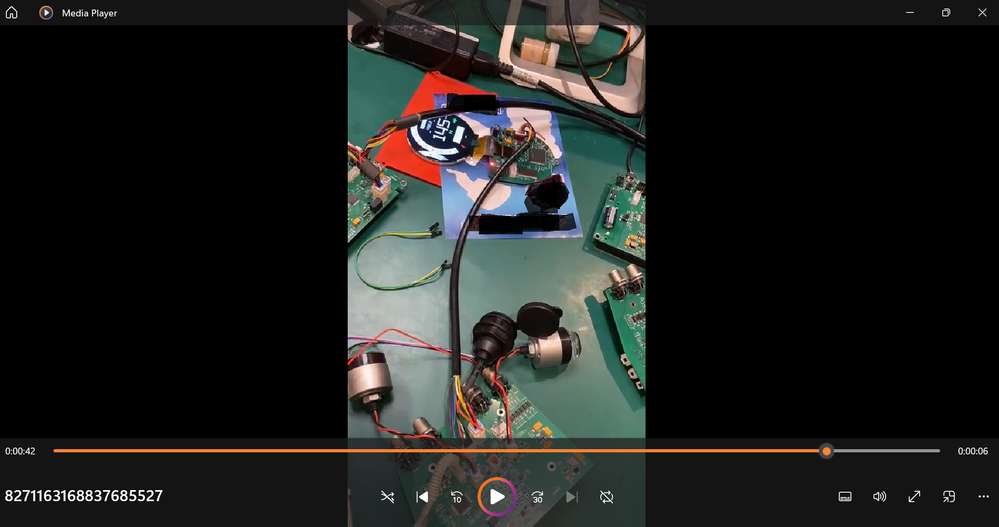

I am in a tough situation when the LCD shift during display without touching the board as some pictures above:

I am using STM32F469ZIT6 and SDRAM IS42S16400J-6TLI. Here is the configuration:

static void MX_FMC_Init(void)
{

  /* USER CODE BEGIN FMC_Init 0 */
  /* USER CODE END FMC_Init 0 */

  FMC_SDRAM_TimingTypeDef SdramTiming = {0};

  /* USER CODE BEGIN FMC_Init 1 */
  /* USER CODE END FMC_Init 1 */

  /** Perform the SDRAM1 memory initialization sequence
  */
  hsdram1.Instance = FMC_SDRAM_DEVICE;
  /* hsdram1.Init */
  hsdram1.Init.SDBank = FMC_SDRAM_BANK2;
  hsdram1.Init.ColumnBitsNumber = FMC_SDRAM_COLUMN_BITS_NUM_8;
  hsdram1.Init.RowBitsNumber = FMC_SDRAM_ROW_BITS_NUM_12;
  hsdram1.Init.MemoryDataWidth = FMC_SDRAM_MEM_BUS_WIDTH_16;
  hsdram1.Init.InternalBankNumber = FMC_SDRAM_INTERN_BANKS_NUM_4;
  hsdram1.Init.CASLatency = FMC_SDRAM_CAS_LATENCY_3;
  hsdram1.Init.WriteProtection = FMC_SDRAM_WRITE_PROTECTION_DISABLE;
  hsdram1.Init.SDClockPeriod = FMC_SDRAM_CLOCK_PERIOD_2;
  hsdram1.Init.ReadBurst = FMC_SDRAM_RBURST_ENABLE;
  hsdram1.Init.ReadPipeDelay = FMC_SDRAM_RPIPE_DELAY_1;
  /* SdramTiming */
  SdramTiming.LoadToActiveDelay = 2;
  SdramTiming.ExitSelfRefreshDelay = 7;
  SdramTiming.SelfRefreshTime = 6;
  SdramTiming.RowCycleDelay = 7;
  SdramTiming.WriteRecoveryTime = 2;
  SdramTiming.RPDelay = 2;
  SdramTiming.RCDDelay = 2;

  if (HAL_SDRAM_Init(&hsdram1, &SdramTiming) != HAL_OK)
  {
    Error_Handler( );
  }

  /* USER CODE BEGIN FMC_Init 2 */
  /* USER CODE END FMC_Init 2 */
}

void BSP_SDRAM_Initialization_sequence(uint32_t RefreshCount)
{
    __IO uint32_t tmpmrd = 0;

    /* Step 1: Configure a clock configuration enable command */
    Command.CommandMode = FMC_SDRAM_CMD_CLK_ENABLE;
    Command.CommandTarget = FMC_SDRAM_CMD_TARGET_BANK2;
    Command.AutoRefreshNumber = 1;
    Command.ModeRegisterDefinition = 0;

    /* Send the command */
    HAL_SDRAM_SendCommand( &hsdram1, &Command, SDRAM_TIMEOUT);

    /* Step 2: Insert 100 us minimum delay */
    /* Inserted delay is equal to 1 ms due to systick time base unit (ms) */
    HAL_Delay(1);

    /* Step 3: Configure a PALL (precharge all) command */
    Command.CommandMode = FMC_SDRAM_CMD_PALL;
    Command.CommandTarget = FMC_SDRAM_CMD_TARGET_BANK2;
    Command.AutoRefreshNumber = 1;
    Command.ModeRegisterDefinition = 0;

    /* Send the command */
    HAL_SDRAM_SendCommand( &hsdram1, &Command, SDRAM_TIMEOUT);

    /* Step 4: Configure an Auto Refresh command */
    Command.CommandMode = FMC_SDRAM_CMD_AUTOREFRESH_MODE;
    Command.CommandTarget = FMC_SDRAM_CMD_TARGET_BANK2;
    Command.AutoRefreshNumber = 8;
    Command.ModeRegisterDefinition = 0;

    /* Send the command */
    HAL_SDRAM_SendCommand( &hsdram1, &Command, SDRAM_TIMEOUT);

    /* Step 5: Program the external memory mode register */
    tmpmrd = (uint32_t) SDRAM_MODEREG_BURST_LENGTH_1 |\
 SDRAM_MODEREG_BURST_TYPE_SEQUENTIAL |\
 SDRAM_MODEREG_CAS_LATENCY_3 |\
 SDRAM_MODEREG_OPERATING_MODE_STANDARD |\
 SDRAM_MODEREG_WRITEBURST_MODE_SINGLE;

    Command.CommandMode = FMC_SDRAM_CMD_LOAD_MODE;
    Command.CommandTarget = FMC_SDRAM_CMD_TARGET_BANK2;
    Command.AutoRefreshNumber = 1;
    Command.ModeRegisterDefinition = tmpmrd;

    /* Send the command */
    HAL_SDRAM_SendCommand( &hsdram1, &Command, SDRAM_TIMEOUT);

    /* Step 6: Set the refresh rate counter */
    /* Set the device refresh rate */
    HAL_SDRAM_ProgramRefreshRate( &hsdram1, RefreshCount);
}

 Refresh count equals 683 and clock for SDRAM is 90MHz

Can anyone help me? Thank youimage.pngimage.png

1 REPLY 1
xuxu998
Visitor

the display is in the middle of the image for anyone can not see it
