UART printing gibbersh to TeraTerm

[NicRoberts]

NUCLEO F767ZI, CubeIDE 2.1.1, CubeMX 6.17.0

I'm trying to set up UART with printf()

#include <stdio.h>

UART_HandleTypeDef huart3;
static void MX_USART3_UART_Init(void);

int __io_putchar(int ch)
{
    HAL_UART_Transmit(&huart3, (uint8_t *)ch, 1, 10);
    return ch;
}

....
// in main
// in while
prinf("UART test\r\n");

// MX generated USART3 init
static void MX_USART3_UART_Init(void)
{

  /* USER CODE BEGIN USART3_Init 0 */

  /* USER CODE END USART3_Init 0 */

  /* USER CODE BEGIN USART3_Init 1 */

  /* USER CODE END USART3_Init 1 */
  huart3.Instance = USART3;
  huart3.Init.BaudRate = 115200;
  huart3.Init.WordLength = UART_WORDLENGTH_8B;
  huart3.Init.StopBits = UART_STOPBITS_1;
  huart3.Init.Parity = UART_PARITY_NONE;
  huart3.Init.Mode = UART_MODE_TX_RX;
  huart3.Init.HwFlowCtl = UART_HWCONTROL_NONE;
  huart3.Init.OverSampling = UART_OVERSAMPLING_16;
  huart3.Init.OneBitSampling = UART_ONE_BIT_SAMPLE_DISABLE;
  huart3.AdvancedInit.AdvFeatureInit = UART_ADVFEATURE_NO_INIT;
  if (HAL_UART_Init(&huart3) != HAL_OK)
  {
    Error_Handler();
  }
  /* USER CODE BEGIN USART3_Init 2 */

  /* USER CODE END USART3_Init 2 */

}

Clock tree from MX

Output in Tera Term window

TT is set up exactly the same as the UART init in the code.

Anyone know whats going on here?

[mƎALLEm]

---

@NicRoberts wrote:

Even reconfiguring the UART with an odd partity

---

You don't have to configure the parity. You need just to set the data in 7-bit mode in the hyperterminal.

Ok, validate your harware using the example I provided previously with the same UART config described in the readme file: https://github.com/STMicroelectronics/STM32CubeF7/blob/master/Projects/STM32F767ZI-Nucleo/Examples/UART/UART_Printf/

If it doesn't work you have an issue with your board.

It's up to you to test, I don't have your board!

[NicRoberts]

@mƎALLEm
OK found it after comparison with the reference code linked above. user error (when isn't it) it turns out I wasn't retargeting the printf function correctly. A missing ampersand in the data passed to the UART_transmit function,

int __io_putchar(int ch)
{
    HAL_UART_Transmit(&huart3, (uint8_t *)&ch, 1, 10);
    return ch;
}

[mƎALLEm]

---

@NicRoberts wrote:

int __io_putchar(int ch)
{
    HAL_UART_Transmit(&huart3, (uint8_t *)&ch, 1, 10);
    return ch;
}

---

Sorry I didn't understand your feedback. What is the difference between the retargeting printf you have shared now and what you have shared in your original post? I don't see any difference!:

int __io_putchar(int ch)
{
    HAL_UART_Transmit(&huart3, (uint8_t *)ch, 1, 10);
    return ch;
}

[Andrew Neil]

---

@mƎALLEm wrote:

What is the difference

Before After:

HAL_UART_Transmit(&huart3, (uint8_t *)&ch, 1, 10);
                                      ^-- Here!

After Before:

HAL_UART_Transmit(&huart3, (uint8_t *)ch, 1, 10);
                                      ^-- Here!

@NicRoberts so the problem was that you were actually sending gibberish to the terminal!

This is exactly why I always recommend to get direct comms working first - before adding the extra complications of printf redirection!

---

Edited to correct 'Before' & 'After'

[NicRoberts · Accepted solution]

My original code,

HAL_UART_Transmit(&huart3, (uint8_t *)ch, 1, 10);

What it should be,

HAL_UART_Transmit(&huart3, (uint8_t *)&ch, 1, 10);

Notice the & in front of the ch

[NicRoberts]

Other way around, it works with the ampersand but gibberish without it.

[mƎALLEm]

---

@NicRoberts wrote:

My original code,

HAL_UART_Transmit(&huart3, (uint8_t *)ch, 1, 10);

What it should be,

HAL_UART_Transmit(&huart3, (uint8_t *)&ch, 1, 10);

Notice the & in front of the ch

---

I moved the solution to this post then..

[CTapp.1]

One of those mistakes that we've probably all made that take forever to spot as you read what you thought you had typed when looking at the code ;)

Something that static analysis can help with on a good day.

[Andrew Neil]

Unfortunately, the mistake was masked by the (uint8_t*) cast - without that, you'd have got a compiler warning...

[CTapp.1]

---

@Andrew Neil wrote:

Unfortunately, the mistake was masked by the (uint8_t*) cast - without that, you'd have got a compiler warning...

---

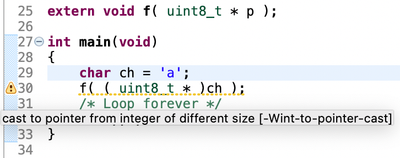

GCC does generate a warning for it:
