Can SRAM1, SRAM2, SRAM3 be treated as one continuous memory region?

inojosh
Associate II

(This is regarding STM32H75x)

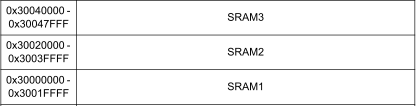

SRAM1, SRAM2, and SRAM3 are separate in the memory map, but they are continuous - there are no gaps between them:


Can they be treated as continuous with respect to the linker, for example:

RAM_D2    (xrw)    : ORIGIN = 0x30000000,   LENGTH = 288K

And then place some arbitrary data in that region?

Like, can we place an array that is 288k in that region and use it as a heap, or will bad things happen at the region where SRAM1 ends / SRAM2 starts, etc?

5 REPLIES 5
inojosh
Associate II

I feel like there is a simple answer to this but I haven't been able to find it...

From the processors perspective they look/appear contiguous.

From and DMA/BUS perspective they might be treated differently, you'd have to review in the context of the bus matrix diagrams

Clocks should also be enabled.

Tips, Buy me a coffee, or three.. PayPal Venmo
Up vote any posts that you find helpful, it shows what's working..

To use as heap, they're contiguous and the linker doesn't care what they, read https://sourceware.org/binutils/docs/ld/MEMORY.html#MEMORY.

  SRAM123 (rw) : ORIGIN = 0x30000000, LENGTH = 0x48000

Otherwise find your part's RM and other resources, e.g. AN4891, at https://www.st.com/content/st_com/en/search.html.

Pavel A.
Evangelist III

If this is relevant for your application, test whether multi-byte writes over the boundary of the RAMs don't cause trouble.

For example: *(uint32_t *)(0x3003FFFF) = 0x12345678; *(uint32_t *)(0x3001FFFE) = 0x12345678;

-- pa

inojosh
Associate II

Thanks everyone.

One interesting thing: I did not realize that clocks had to be enabled for these SRAM blocks, and I was somehow using them just fine without those clocks enabled.

I am not sure how... but I have added the clock init in.
