Facing an error when using MCSDK 6.4.1

[一hang]

Hello,

I encountered an error when using MCSDK 6.4.1 (Motor Control Software Development Kit 6.4.1) to configure the STM32G431VBT for using the three-resistor internal operational amplifier and performing external differential gain sampling. I would like to ask how to resolve this issue.

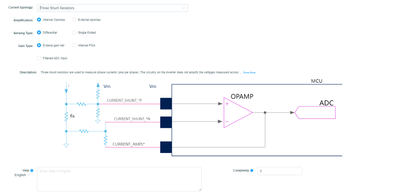

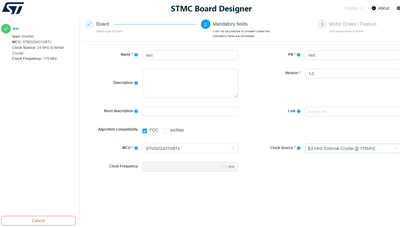

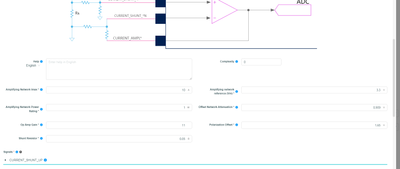

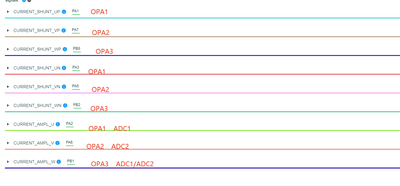

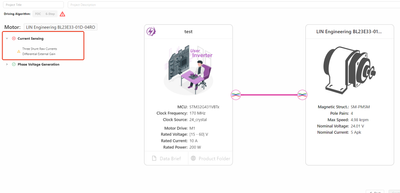

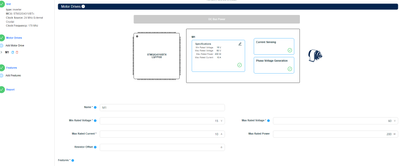

The following images show my configuration process：

[GMA]

Hello @一hang.,

Can you share your board description .json file?

[一hang]

{
  "type": "inverter",
  "contentVersion": "1.0",
  "descVersion": 4,
  "name": "test",
  "PN": "test",
  "algorithmCompatibility": [
    "FOC"
  ],
  "mcu": "STM32G431VBTx",
  "clockSource": "24_crystal",
  "clockFrequency": 170,
  "motorDrives": [
    {
      "name": "M1",
      "minRatedVoltage": 15,
      "maxRatedVoltage": 60,
      "maxRatedPower": 200,
      "maxRatedCurrent": 10,
      "features": [
        {
          "type": "CurrentSensing",
          "name": "CurrentSensing",
          "tRise": 620,
          "hwVariants": [
            {
              "signals": {
                "CURRENT_SHUNT_UP": [
                  {
                    "name": "PA1",
                    "help": {},
                    "cost": 0
                  }
                ],
                "CURRENT_SHUNT_VP": [
                  {
                    "name": "PA7",
                    "help": {},
                    "cost": 0
                  }
                ],
                "CURRENT_SHUNT_WP": [
                  {
                    "name": "PB0",
                    "help": {},
                    "cost": 0
                  }
                ],
                "CURRENT_SHUNT_UN": [
                  {
                    "name": "PA3",
                    "help": {},
                    "cost": 0
                  }
                ],
                "CURRENT_SHUNT_VN": [
                  {
                    "name": "PA5",
                    "help": {},
                    "cost": 0
                  }
                ],
                "CURRENT_SHUNT_WN": [
                  {
                    "name": "PB2",
                    "help": {},
                    "cost": 0
                  }
                ],
                "CURRENT_AMPL_U": [
                  {
                    "name": "PA2",
                    "help": {},
                    "cost": 0
                  }
                ],
                "CURRENT_AMPL_V": [
                  {
                    "name": "PA6",
                    "help": {},
                    "cost": 0
                  }
                ],
                "CURRENT_AMPL_W": [
                  {
                    "name": "PB1",
                    "help": {},
                    "cost": 0
                  }
                ]
              },
              "type": "ThreeShunt_RawCurrents_Differential_ExternalGain",
              "cost": 0,
              "amplifyingNetworkImax": 10,
              "amplifyingNetworkVm": 3.3,
              "offsetNetworkAttenuation": 0.909,
              "polarizationOffset": 1.65,
              "shuntResistor": 0.05,
              "opAmpGain": 11,
              "amplifyingNetworkPrating": 1
            }
          ]
        },
        {
          "type": "PhaseVoltageGeneration",
          "name": "PhaseVoltageGeneration",
          "driverName": "TEST",
          "driverPN": "TEST",
          "minDeadTime": 700,
          "tNoise": 800,
          "maxSwitchingFreq": 32,
          "hwVariants": [
            {
              "signals": {
                "PWM_CHU_H": [
                  {
                    "name": "PE9",
                    "help": {},
                    "cost": 0
                  }
                ],
                "PWM_CHV_H": [
                  {
                    "name": "PE11",
                    "help": {},
                    "cost": 0
                  }
                ],
                "PWM_CHW_H": [
                  {
                    "name": "PE13",
                    "help": {},
                    "cost": 0
                  }
                ],
                "PWM_CHU_L": [
                  {
                    "name": "PE8",
                    "help": {},
                    "cost": 0
                  }
                ],
                "PWM_CHV_L": [
                  {
                    "name": "PE10",
                    "help": {},
                    "cost": 0
                  }
                ],
                "PWM_CHW_L": [
                  {
                    "name": "PE12",
                    "help": {},
                    "cost": 0
                  }
                ]
              },
              "type": "DrivingHighAndLowSides",
              "cost": 0,
              "deadTime": 700,
              "lowSideSwitchesDrivingPolarity": "Active high",
              "highSideSwitchesDrivingPolarity": "Active high"
            }
          ]
        }
      ]
    }
  ],
  "features": []
}

[GMA]

Hello @一hang,

For the current MCSDK implementation, only ThreeShunt_RawCurrents_Differential_ExternalGain_FilteredADCInput is supported on the STM32G4 series.
The description of the current sensing feature is available here.

[一hang]

Hello,

That means in the graphical configuration of MCSDK 6.4.1, it is not possible to configure the Three-Resistor Shunt Differential Internal Op-Amp with External Gain (ThreeShunt_RawCurrents_Differential_ExternalGain), right?

If I want to use ThreeShunt_RawCurrents_Differential_ExternalGain, do I have to modify the software by myself to configure it?

[GMA]

Hello @一hang,

As the ThreeShunt_RawCurrents_Differential_ExternalGain topology is not supported, you must generate a project with a supported topology and modify the generated firmware.
If your purpose is to use the HSO Speed Sensor Mode, it is recommended to use the ThreeShunt_RawCurrents_Differential_ExternalGain_FilteredADCInput topology.
