IOC configuration for digital signals to go low

Sushmita · ‎2024-03-06

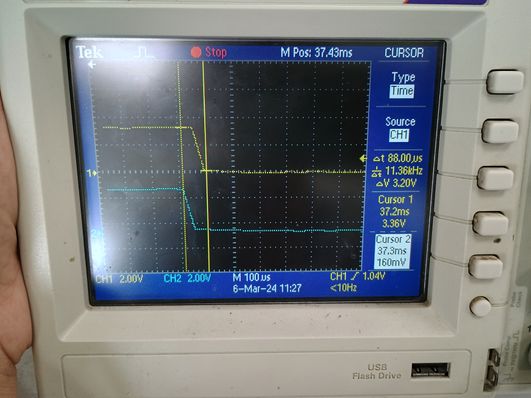

Please find the given DSO image !!!! blue is fault signal and yellow is PWM

I need to stop the PWM, if a fault will come, while doing this my PWM is turning off but not fully its showing a ramp down of 88usec and then becoming zero.

given configuration in my IOC

GPIO setting for timer and fault signal is

GPIO mode: Alternating PUSH PULL

pull down

Richard.Chvr · ‎2024-03-14

Hello @Sushmita

I'm not sure to understand your problem, What STM32 Cube Monitor tool are you using?

To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
