Schematic Review STM32WBA5MMGH6TR

Hariom
Associate III

‎2026-01-20 4:44 AM

I am using STM32WBA5MMGH6TR in my project for sending data received from a sensor. BT is used for transmission.

The data will be transmitted to a central node.

This is a battery operated device. The signal chain is given below.

Sensor--> ADC-->STM32WBA5MMGH6TR.

Could you please review the attached schematic.

Labels:
Preview file
1833 KB
0 Kudos
2 REPLIES 2
Andrew Neil
Super User

‎2026-01-20 4:54 AM

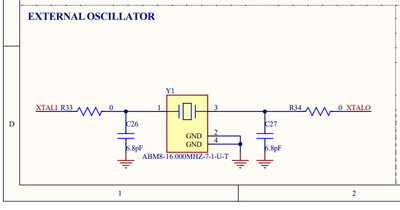

That's just a crystal - not an external oscillator.

A complex system that works is invariably found to have evolved from a simple system that worked.
A complex system designed from scratch never works and cannot be patched up to make it work.
Hariom
Associate III

‎2026-01-20 5:07 AM

Thank you. I will update it.

May I know your suggestion about the remaining sections.
