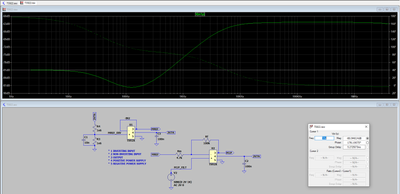

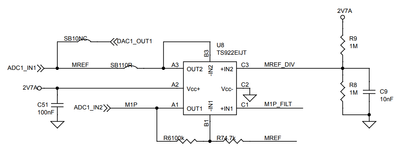

Hi, im trying to find out the gain from the TS922EIJT used inside the STEVAL-STWINKT1B evaluation board. Here is where the opamp is used.So far, i have simulated the schematic using LTSpice and got a gain of -80 dB (see attached screenshot of the cir...
Hi, I'm wondering if it is okay to connect 2 16ohm headsets in parallel to the ts482idt stereo amplifier. This would mean that the output load is now 8ohms but the datasheet only mentions 16 and 32 ohm loads. What if any issues would I encounter in t...
In your application note, AN4835, you are using resistors R2 and R3. Please can you explain their purpose?My circuit uses the TSZ121 precision op-amp in the classical method without R2 and R3 and it works equally well. Thank you very much for any ins...

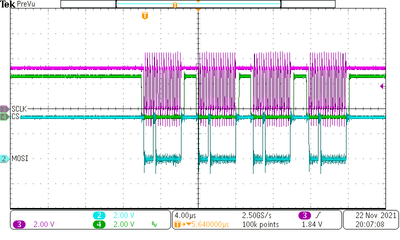

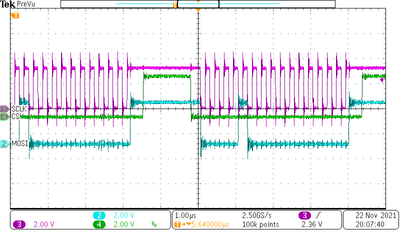

We need to use the ADC chip ADC120 within our design, unfortunately the readout process that we perform only outputs channel IN0 data as output, regardless what we set in ADD2, ADD1 and ADD0 bits. I am not sure how to change the channel, but followin...
I am using ADC chip ADC120. Data is output, but the channel is not changed, so only IN0 data is output.The SCLK goes low and data is entered in DIN.SCLK goes low and DOUT is read.I am not sure how to change the channel.Please help.Thanks.
Dear Sirs! I use in my design LMV321LICT manufactured by STMicroelectronics. And I faced very strange behavior.LMV321LICT powered by +3V in mode of buffer or non inverting amplifier.When for example there is +1.5V DC in plus input and gain 2, I see a...
Hello,There are 8 optical front-ends on the board ... the front-ends based on TSV771 (or TSV772, TSV782, TSV791, TSV792).Is it important to use one LDO per front-end or powering all 8 frontends by a single LDO will be also Ok ?Thanks.

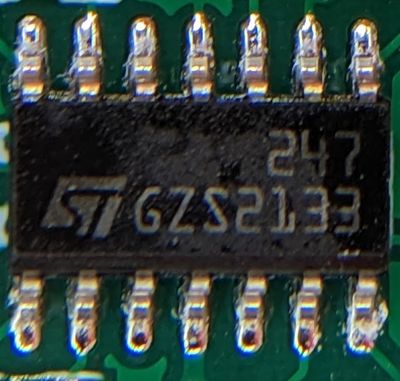

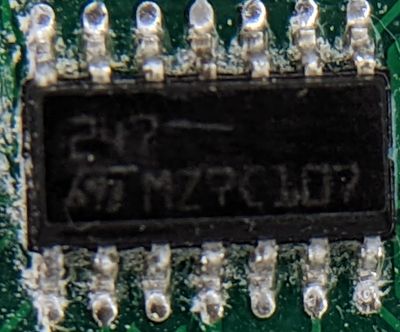

I am trying to identify a chip with an ST marking. It is an SOIC-14 and appears to be identified with the markings 247. There are more markings on the package, but they vary from package to package and I suspect they are some sort of manufacturing an...
Is L7805ABD2T-TR type A or B D2PAK? Ordering information doesnt have any designation to order Type A or B and I am not sure what type is L7805ABD2T-TR.
Hello.I would like to know about the error of TSB582 consumption current.Please let me know if there is a figure between it's consumption current (or quiescent current) vs. supply voltage for the number of parts, and data on minimum and maximum consu...
