USB-C PD Analyzer-Tool used in AN5225 ?

AWack
Senior

Hi,

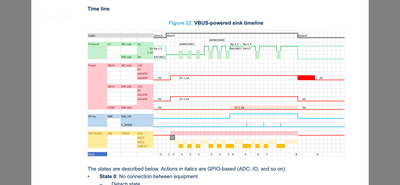

in AN5225 an anylzer is used (e.g. Fig 22, page 33). Can anyone tell me which analyzer it is?

Best regards,

Achim

1 ACCEPTED SOLUTION

Accepted Solutions
FBL
ST Employee

Hi  @AWack

Figure 22 is a conceptual timing diagram, not output of an automatic tool. It is intended to illustrate the USB‑PD sink behavior and GPIO activity over time. It's describing the behavior of the STM32G0 Discovery kit USB Type‑C analyzer as called in Figure 9.
