getMCULoadPct() function

qqAnton · ‎2019-07-10

Hello

I want to know the MCU Load, so I found this function

McuLoad = touchgfx::HAL::getInstance()->getMCULoadPct();

I call it in

void Model::tick()

But I always get 0, whatever I do it alwsys returns zero, so I don't think it's working well,

so, how could I resolve the problem? maybe I should call it from another place?

Thank you

Anton

qqAnton · ‎2019-07-11

@Martin KJELDSEN I think the problem is in TIM1, i checked TIM1->CNT value and it's always = 0, looks like it's not working,

but I don't know why

qqAnton · ‎2019-07-11

@Martin KJELDSEN

void STM32F4Instrumentation::init()
{
   RCC_ClkInitTypeDef clkconfig;
    uint32_t uwTimclock, uwAPB1Prescaler = 0U;
    uint32_t pFLatency;

    __TIM1_CLK_ENABLE();

  TIM_ClockConfigTypeDef sClockSourceConfig = {0};
  TIM_MasterConfigTypeDef sMasterConfig = {0};
  htim1.Instance = TIM1;
  htim1.Init.Prescaler = 0;
  htim1.Init.CounterMode = TIM_COUNTERMODE_UP;
  htim1.Init.Period = 0;
  htim1.Init.ClockDivision = TIM_CLOCKDIVISION_DIV1;
  htim1.Init.RepetitionCounter = 0;
  htim1.Init.AutoReloadPreload = TIM_AUTORELOAD_PRELOAD_DISABLE;
  if (HAL_TIM_Base_Init(&htim1) != HAL_OK)
  {
    Error_Handler( );
  }

  sClockSourceConfig.ClockSource = TIM_CLOCKSOURCE_INTERNAL;
  if (HAL_TIM_ConfigClockSource(&htim1, &sClockSourceConfig) != HAL_OK)
  {
    Error_Handler( );
  }

  sMasterConfig.MasterOutputTrigger = TIM_TRGO_RESET;
  sMasterConfig.MasterSlaveMode = TIM_MASTERSLAVEMODE_DISABLE;
  if (HAL_TIMEx_MasterConfigSynchronization(&htim1, &sMasterConfig) != HAL_OK)
  {
    Error_Handler( );
  }

    /* Get clock configuration */
    HAL_RCC_GetClockConfig(&clkconfig, &pFLatency);

    /* TIM2 is on APB1 bus */
    uwAPB1Prescaler = clkconfig.APB1CLKDivider;

    if (uwAPB1Prescaler == RCC_HCLK_DIV1)
        uwTimclock = HAL_RCC_GetPCLK1Freq();
    else
        uwTimclock = 2 * HAL_RCC_GetPCLK1Freq();

    m_sysclkRatio = HAL_RCC_GetHCLKFreq() / uwTimclock;

    HAL_TIM_Base_Start(&htim1);
}

This is my timer init code, I change

htim1.Init.Prescaler = 0;

and

htim1.Init.Period = 0;

so, finally getMCULoadPct() returns numbers except 0.

Could you advise how to configure the timer better?

Martin KJELDSEN · ‎2019-07-11

Here's the configuration we use for TIM2 for STM32F7.

void STM32F7Instrumentation::init()
{
    __TIM2_CLK_ENABLE();
    tim.Instance = TIM2;
    tim.Init.ClockDivision = TIM_CLOCKDIVISION_DIV1;
    tim.Init.CounterMode = TIM_COUNTERMODE_UP;
    tim.Init.Period = 0xFFFFFFFF;
    tim.Init.Prescaler = 0;
    tim.Init.RepetitionCounter = 1;
    HAL_TIM_Base_Init(&tim);
    HAL_TIM_Base_Start(&tim);
}

qqAnton · ‎2019-07-14

Thank you for your time, now it's working

but CPU Load value only has two states 1% and 100%, maybe it's ok

ALomb · ‎2019-07-22

Hi @qqAnton and @Martin KJELDSEN ,

I think the problem is in the initialization of the timer.

I selected the TIM1 in Cube, but the initialization (generated) is incorrect (it seems to refer to TIM2).

This is my initialization

static TIM_HandleTypeDef htim1;

void STM32F7Instrumentation::init()
{
#if 1
   RCC_ClkInitTypeDef clkconfig;
    uint32_t uwTimclock, uwAPB1Prescaler = 0U;
    uint32_t pFLatency;

    __TIM1_CLK_ENABLE();  //__TIM2_CLK_ENABLE();


  TIM_ClockConfigTypeDef sClockSourceConfig = {0};
  TIM_MasterConfigTypeDef sMasterConfig = {0};
  TIM_OC_InitTypeDef sConfigOC = {0};
  TIM_BreakDeadTimeConfigTypeDef sBreakDeadTimeConfig = {0};
  htim1.Instance = TIM1;
  htim1.Init.Prescaler = 0;
  htim1.Init.CounterMode = TIM_COUNTERMODE_UP;
  htim1.Init.Period = 0xFFFFFFFF;
  htim1.Init.ClockDivision = TIM_CLOCKDIVISION_DIV1;
  htim1.Init.RepetitionCounter = 0;
  htim1.Init.AutoReloadPreload = TIM_AUTORELOAD_PRELOAD_DISABLE;
  if (HAL_TIM_Base_Init(&htim1) != HAL_OK)
  {
    Error_Handler( );
  }

  sClockSourceConfig.ClockSource = TIM_CLOCKSOURCE_INTERNAL;
  if (HAL_TIM_ConfigClockSource(&htim1, &sClockSourceConfig) != HAL_OK)
  {
    Error_Handler( );
  }

  htim1.Instance = TIM1;
  htim1.Init.Prescaler = 0;
  htim1.Init.CounterMode = TIM_COUNTERMODE_UP;
  htim1.Init.Period = 0xFFFFFFFF;
  htim1.Init.ClockDivision = TIM_CLOCKDIVISION_DIV1;
  htim1.Init.RepetitionCounter = 0;
  htim1.Init.AutoReloadPreload = TIM_AUTORELOAD_PRELOAD_DISABLE;
  if (HAL_TIM_PWM_Init(&htim1) != HAL_OK)
  {
    Error_Handler( );
  }

  sMasterConfig.MasterOutputTrigger = TIM_TRGO_RESET;
  sMasterConfig.MasterOutputTrigger2 = TIM_TRGO2_RESET;
  sMasterConfig.MasterSlaveMode = TIM_MASTERSLAVEMODE_DISABLE;
  if (HAL_TIMEx_MasterConfigSynchronization(&htim1, &sMasterConfig) != HAL_OK)
  {
    Error_Handler( );
  }

  sConfigOC.OCMode = TIM_OCMODE_PWM1;
  sConfigOC.Pulse = 0;
  sConfigOC.OCPolarity = TIM_OCPOLARITY_HIGH;
  sConfigOC.OCNPolarity = TIM_OCNPOLARITY_HIGH;
  sConfigOC.OCFastMode = TIM_OCFAST_DISABLE;
  sConfigOC.OCIdleState = TIM_OCIDLESTATE_RESET;
  sConfigOC.OCNIdleState = TIM_OCNIDLESTATE_RESET;
  if (HAL_TIM_PWM_ConfigChannel(&htim1, &sConfigOC, TIM_CHANNEL_1) != HAL_OK)
  {
    Error_Handler( );
  }

  sBreakDeadTimeConfig.OffStateRunMode = TIM_OSSR_DISABLE;
  sBreakDeadTimeConfig.OffStateIDLEMode = TIM_OSSI_DISABLE;
  sBreakDeadTimeConfig.LockLevel = TIM_LOCKLEVEL_OFF;
  sBreakDeadTimeConfig.DeadTime = 0;
  sBreakDeadTimeConfig.BreakState = TIM_BREAK_DISABLE;
  sBreakDeadTimeConfig.BreakPolarity = TIM_BREAKPOLARITY_HIGH;
  sBreakDeadTimeConfig.BreakFilter = 0;
  sBreakDeadTimeConfig.Break2State = TIM_BREAK2_DISABLE;
  sBreakDeadTimeConfig.Break2Polarity = TIM_BREAK2POLARITY_HIGH;
  sBreakDeadTimeConfig.Break2Filter = 0;
  sBreakDeadTimeConfig.AutomaticOutput = TIM_AUTOMATICOUTPUT_DISABLE;
  if (HAL_TIMEx_ConfigBreakDeadTime(&htim1, &sBreakDeadTimeConfig) != HAL_OK)
  {
    Error_Handler( );
  }

    /* Get clock configuration */
    HAL_RCC_GetClockConfig(&clkconfig, &pFLatency);

    /* TIM1 is on APB1 bus */
    uwAPB1Prescaler = clkconfig.APB1CLKDivider;

    if (uwAPB1Prescaler == RCC_HCLK_DIV1)
        uwTimclock = HAL_RCC_GetPCLK1Freq();
    else
        uwTimclock = 2 * HAL_RCC_GetPCLK1Freq();

    m_sysclkRatio = HAL_RCC_GetHCLKFreq() / uwTimclock;

    HAL_TIM_Base_Start(&htim1);
#else
    __TIM1_CLK_ENABLE();
    htim1.Instance = TIM1;
    htim1.Init.ClockDivision = TIM_CLOCKDIVISION_DIV1;
    htim1.Init.CounterMode = TIM_COUNTERMODE_UP;
    htim1.Init.Period = 0xFFFFFFFF;
    htim1.Init.Prescaler = 0;
    htim1.Init.RepetitionCounter = 1;
    HAL_TIM_Base_Init(&htim1);
    HAL_TIM_Base_Start(&htim1);
#endif
}

Martin KJELDSEN · ‎2019-08-05

Hi, i'm back from vacation.

Hmm, that's strange - At which points in time is it going to 100% ? This should only happen if you're e.g. busy-looping somewhere or do not have DMA2D enabled (Using CPU to render everything)

/Martin

Martin KJELDSEN · ‎2019-08-15

@qqAnton,

Any updates on your end?

qqAnton · ‎2019-08-15

@Martin KJELDSEN ,

I think the problem is that I use handleTickEvent() on every screen, where I poll hardware buttons state,

or refresh text on the screen, so CPU is always busy.

HCon · ‎2019-09-19

The Tim1 is 16-bit, The Tim2 is 32-bit.

So Timer selection Tim2.

In file STM32F4Instrumentation.cpp:

#include "stm32f4xx_hal.h"

#include "stm32f4xx_hal_tim.h"

#include <touchgfx/hal/HAL.hpp>

#include <STM32F4Instrumentation.hpp>

/* USER CODE BEGIN user includes */

/* USER CODE END user includes */

namespace touchgfx

{

static TIM_HandleTypeDef htim2;

void STM32F4Instrumentation::init()

{

RCC_ClkInitTypeDef clkconfig;

uint32_t uwTimclock, uwAPB1Prescaler = 0U;

uint32_t pFLatency;

__TIM2_CLK_ENABLE();

TIM_ClockConfigTypeDef sClockSourceConfig = {0};

TIM_MasterConfigTypeDef sMasterConfig = {0};

htim2.Instance = TIM2;

htim2.Init.Prescaler = 0;

htim2.Init.CounterMode = TIM_COUNTERMODE_UP;

htim2.Init.Period = 0xffffffff;

htim2.Init.ClockDivision = TIM_CLOCKDIVISION_DIV1;

htim2.Init.AutoReloadPreload = TIM_AUTORELOAD_PRELOAD_DISABLE;

if (HAL_TIM_Base_Init(&htim2) != HAL_OK)

{

Error_Handler( );

}

sClockSourceConfig.ClockSource = TIM_CLOCKSOURCE_INTERNAL;

if (HAL_TIM_ConfigClockSource(&htim2, &sClockSourceConfig) != HAL_OK)

{

Error_Handler( );

}

sMasterConfig.MasterOutputTrigger = TIM_TRGO_RESET;

sMasterConfig.MasterSlaveMode = TIM_MASTERSLAVEMODE_DISABLE;

if (HAL_TIMEx_MasterConfigSynchronization(&htim2, &sMasterConfig) != HAL_OK)

{

Error_Handler( );

}

/* Get clock configuration */

HAL_RCC_GetClockConfig(&clkconfig, &pFLatency);

/* TIM2 is on APB1 bus */

uwAPB1Prescaler = clkconfig.APB1CLKDivider;

if (uwAPB1Prescaler == RCC_HCLK_DIV1)

uwTimclock = HAL_RCC_GetPCLK1Freq();

else

uwTimclock = 2 * HAL_RCC_GetPCLK1Freq();

m_sysclkRatio = HAL_RCC_GetHCLKFreq() / uwTimclock;

HAL_TIM_Base_Start(&htim2);

}

//Board specific clockfrequency

unsigned int STM32F4Instrumentation::getElapsedUS(unsigned int start, unsigned int now, unsigned int clockfrequency)

{

return ((now - start) + (clockfrequency / 2)) / clockfrequency;

}

unsigned int STM32F4Instrumentation::getCPUCycles()

{

return __HAL_TIM_GET_COUNTER(&htim2) * m_sysclkRatio;

}

void STM32F4Instrumentation::setMCUActive(bool active)

{

if (active) //idle task sched out

{

cc_consumed += getCPUCycles() - cc_in;

}

else //idle task sched in

{

cc_in = getCPUCycles();

}

HCon · ‎2019-09-19

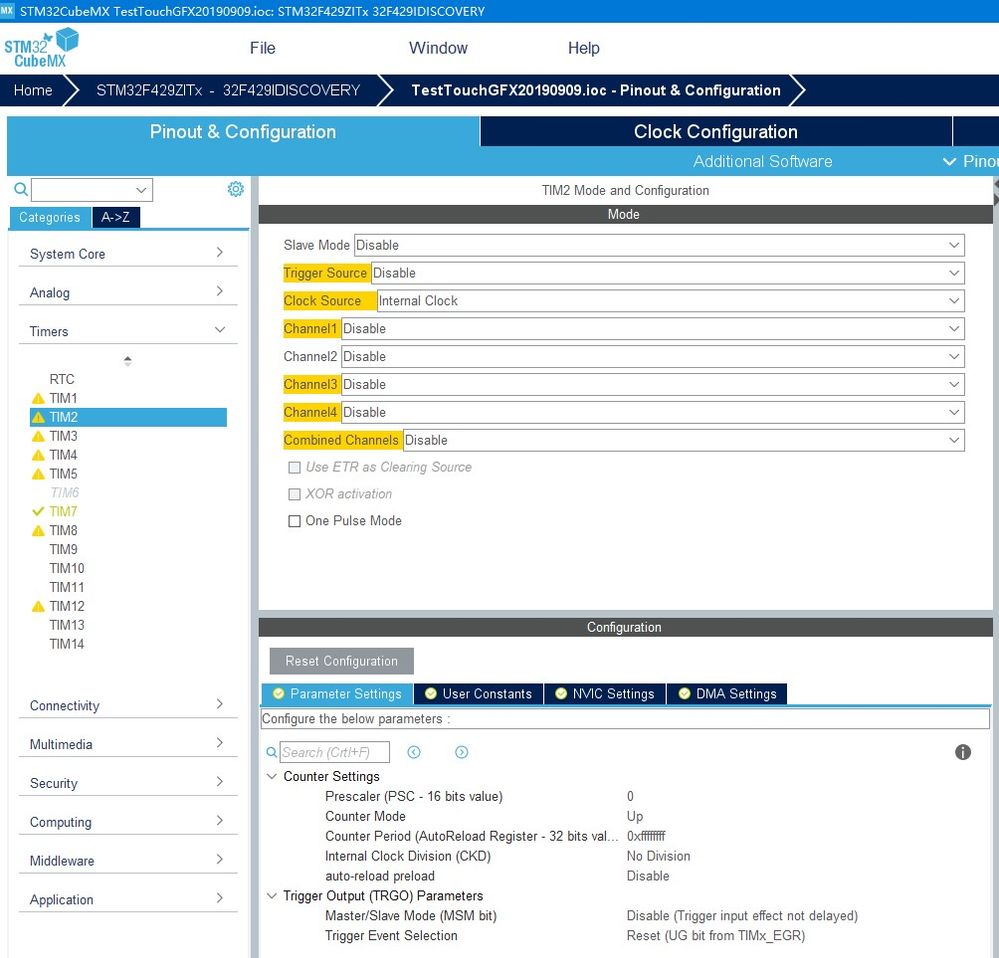

STM32CubeMX :
