TIM6 setting in stm32cubemx
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Report Inappropriate Content
‎2016-10-12 9:57 PM
Posted on October 13, 2016 at 06:57
Dear All,
I am working in STM32F070R8T6.For the Timer base pwm generation I need to use TIM6, I have no option for choosing TIM1 and TIM2.I need to activate internal pwm which may cause by pressing GPIO key button. Kindly, help me to set TIM6 in stmcubemx.
This discussion is locked. Please start a new topic to ask your question.
2 REPLIES 2
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Report Inappropriate Content
‎2016-10-13 3:12 AM
Posted on October 13, 2016 at 12:12
-Syrine-
Hi hasan.md_mubdiul,

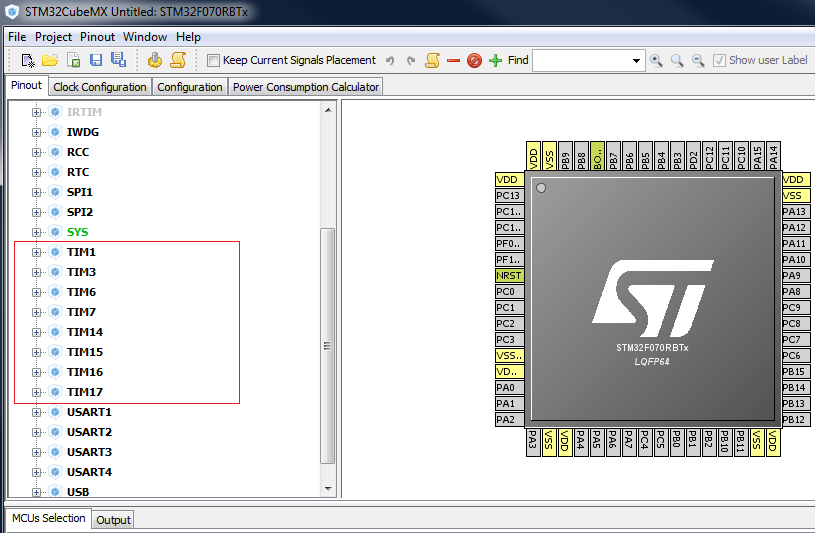

''I am working in STM32F070R8T6.For the Timer base pwm generation I need to use TIM6, I have no option for choosing TIM1 and TIM2?I guess that you use STM32F070RBT6 (not STM32F070R8T6), and you don?t have option for choosing TIM1 and TIM3 (not TIM1/2)TIM6/7 are basic timers witch don?t feature independent channel for PWM generation so you cannot use them.As shown in this figure you can use TIM14/15/16/17Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Email to a Friend
- Report Inappropriate Content
‎2016-10-13 5:17 PM
Posted on October 14, 2016 at 02:17
This setting generates, static void MX_TIM14_Init(void) { TIM_IC_InitTypeDef sConfigIC; htim14.Instance = TIM14; htim14.Init.Prescaler = 0; htim14.Init.CounterMode = TIM_COUNTERMODE_UP; htim14.Init.Period = 0; htim14.Init.ClockDivision = TIM_CLOCKDIVISION_DIV1; if (HAL_TIM_Base_Init(&htim14) != HAL_OK) { Error_Handler(); } if (HAL_TIM_IC_Init(&htim14) != HAL_OK) { Error_Handler(); } if (HAL_TIM_OnePulse_Init(&htim14, TIM_OPMODE_SINGLE) != HAL_OK) { Error_Handler(); } sConfigIC.ICPolarity = TIM_INPUTCHANNELPOLARITY_RISING; sConfigIC.ICSelection = TIM_ICSELECTION_DIRECTTI; sConfigIC.ICPrescaler = TIM_ICPSC_DIV1; sConfigIC.ICFilter = 0; if (HAL_TIM_IC_ConfigChannel(&htim14, &sConfigIC, TIM_CHANNEL_1) != HAL_OK) { Error_Handler(); } if (HAL_TIMEx_RemapConfig(&htim14, TIM_TIM14_MCO) != HAL_OK) { Error_Handler(); }My aim is to apply this timer along with pwm and use it by press key.Kindly, refer me any helpful example source code.RegardsHasan
Dear Sir Syrine,
Thank you very much, I saw this in datasheet that TIM6/7 will not be use for this MCU. My circuit does not contain any external TIMER I/O port. That means, I have to activate internal timer.
