STM32F030 - Nucleo 030R8

[syed]

I am looking for copy of schematic of Nucleo 030R8. I am in the process to design my custom board but I need reference design to check application circuit of STM32F030RCT6TR

Thanks

Syed

[STTwo-32]

Hello @syed  and welcome to the ST Community 😊.

You can find in this link the schematic Pack of the Nucleo that you are looking for.

Best Regards.

STTwo-32

[Andrew Neil]

See also:

Application note AN4325: Getting started with STM32F030xx and STM32F070xx series hardware development

https://www.st.com/resource/en/application_note/an4325-getting-started-with-stm32f030xx-and-stm32f070xx-series-hardware-development-stmicroelectronics.pdf

And some general tips in this thread:

https://community.st.com/t5/stm32-mcus-boards-and-hardware/stm32l071k8u6-reference-schematic/m-p/647232

[syed]

Hi @STTwo-32

I already checked above link and found STM32F103 schematics. I was looking same Nucleo schematics for STM32F030 board (Nucleo 030R8).

or you recommend to refer for STM32F103 application circuit is similar for STM32F030RCT6TR?

Thanks

Syed

[Andrew Neil]

---

@syed wrote:

Hi @STTwo-32

I already checked above link and found STM32F103 schematics.

---

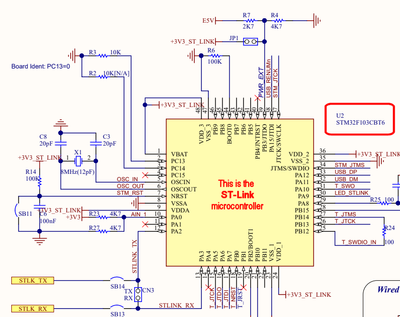

Are you, perhaps, looking at the ST-Link microcontroller - U2 on Sheet 4 - which is an STM32F103CBT6 ?

The STM32F030 is U5 - marked "MCU_LQFP64" on Sheet 3.

---

This is the link that @STTwo-32 gave:

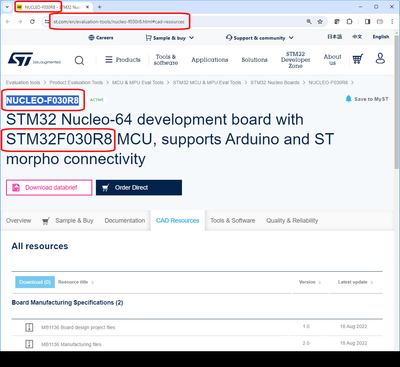

https://www.st.com/en/evaluation-tools/nucleo-f030r8.html#cad-resources

It does take you to the Product Page for the NUCLEO-F030R8 board:

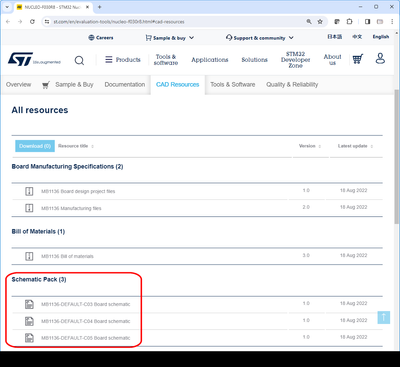

Scroll down to find the Schematics:

Download the pack which corresponds to the revision of board (C03, C04, or C05) which you have.

Note that the schematics are also in the 'Board design project files' download.

[STTwo-32 · Accepted solution]

The MB1136 is the Schematic Pack of the Nucleo-F030R8 and other STM32 Nucleo-64 boards (mentioned in the introduction of the UM1724. The STM32F103 mentioned on the sheet 4 of the Schematic Packs is used just on the integrated ST-LINK v2-1.

Best Regards.

STTWo-32
