NUCLEO H533RE Pin map

wwnsok2 · ‎2025-09-23

Where can I find the pinout of NUCLEO H533RE?

mƎALLEm · ‎2025-09-23

Hello,

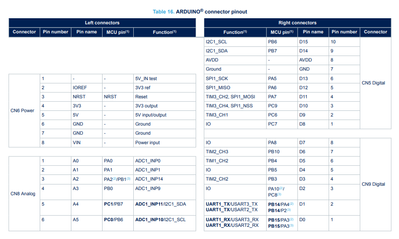

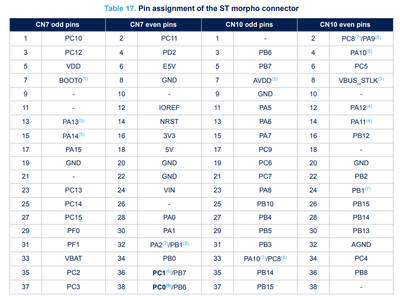

In UM3121 Table 16 and Table 17:

To give better visibility on the answered topics, please click on "Accept as Solution" on the reply which solved your issue or answered your question.

View solution in original post

mƎALLEm · ‎2025-09-23

Hello,

In UM3121 Table 16 and Table 17:

To give better visibility on the answered topics, please click on "Accept as Solution" on the reply which solved your issue or answered your question.

Andrew Neil · ‎2025-09-23

@wwnsok2 wrote:
Where can I find the pinout of NUCLEO H533RE?

Go to the Product Page for the board:

https://www.st.com/en/evaluation-tools/nucleo-h533re.html

Look on the 'Documentation' tab:

https://www.st.com/en/evaluation-tools/nucleo-h533re.html#documentation

There you will find the User Manual - as @mƎALLEm said.

Also, on the 'CAD Resources' tab, you will find the schematics:

https://www.st.com/en/evaluation-tools/nucleo-h533re.html#cad-resources
