FAQ: STM32H7 - How to read RAMECC_MxFAR failing address

Christophe VRIGNAUD
ST Employee

How to find the RAM ECC failing address?

  • How to access to the right RAMECC monitor to get the RAM failing address when an ECC error occurs?
  • How to translate the content of the failing address register to the actual RAM address (e.g. FADD= 0x2004)?

Note: For simplicity and clarity, the description is based on the STM32H74x/5x series. The description would be similar for other STM32H7 series and can be found in the release manual.


1. RAMECC controllers

The number of controllers depends on the STM32H7 series.

  • The STM32H74x/5x and STM32H72x/3x has one RAMECC controller per power domain.
    • RAMECC controller for Domain 1 (D1) = RAMECC1

    • RAMECC controller for Domain 2 (D2) = RAMECC2

    • RAMECC controller for Domain 3 (D3) = RAMECC3

​​​​​​​​​​
  • The STM32H7Ax/Bx has only one RAMECC controller.
    • RAMECC controller for the CPU Domain (CD) = RAMECC

2. RAMECC monitors

The list of monitors vary depending on the STM32H7 series.
The STM32H74x/5x has one monitor for each RAM block in the MCU.
  • RAMECC1 controller has 5 monitors for D1
  • RAMECC2 controller has 5 monitors for D2
  • RAMECC3 controller has 2 monitors for D3

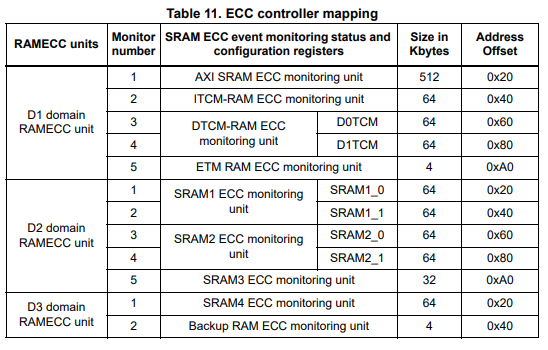

The detail is given in table 11 of the release manual.



3. RAMECC registers address

From table 8 of the release manual:


Boundary addressPeripheral
0x58027000 - 0x580273FFRAMECC3
0x52009000 - 0x520093FFRAMECC1
0x48023000 - 0x480233FFRAMECC2




4. RAMECC exception vectors

From table 143 of the release manual:


SignalPriorityNVIC
position
AcronymDescriptionAddress offset
ramecc1_it152145RAMECC1ECC diagnostic global interrupt for RAMECC D10x0000 0284
ramecc2_itRAMECC2ECC diagnostic global interrupt for RAMECC D2
ramecc3_itRAMECC3ECC diagnostic global interrupt for RAMECC D3




5. RAMECC registers - e.g. RAMECC1

For RAMECC1, the boundary addresses are 0x52009000 - 0x520093FF (table 8 of the release manual).
The addresses of the registers for each monitor are as follows:

  • RAMECC_IER      --  interrupt enable
=> Address offset: 0x00
=>  0x52009000

  • RAMECC_MxCR  --  configuration
=> Address offset: 0x20 * x
=> x = ECC monitoring unit number
=> 0x52009000 + 0x20 * x                  with x = [1..5]

=> 0x52009020   Monitor 1 -  AXI SRAM ECC monitoring unit                           512Kb
=> 0x52009040   Monitor 2 -  ITCM-RAM ECC monitoring unit                            64kB
=> 0x52009060   Monitor 3 -  DTCM-RAM ECC monitoring unit for D0TCM        64Kb
=> 0x52009080   Monitor 4 -  DTCM-RAM ECC monitoring unit for D1TCM        64Kb
=> 0x520090a0   Monitor 5 -  ETM RAM ECC monitoring unit                                4Kb

  • RAMECC_MxSR  --  status
=> Address offset: 0x24 + 0x20 * (x - 1)
=> x = ECC monitoring unit number

=> 0x52009000 + 0x24 + 0x20 * (x-1)   with x = [1..5]
=> 0x52009024 + 0x20 * (x-1)               with x = [1..5]

=> 0x52009024   Monitor 1
=> 0x52009044   Monitor 2
=> 0x52009064   Monitor 3
=> 0x52009084   Monitor 4
=> 0x520090a4   Monitor 5

  • RAMECC_MxFAR  --  failing address
=> Address offset: 0x28 + 0x20 * (x-1)
=> x = ECC monitoring unit number

=> 0x52009000 + 0x28 + 0x20 * (x-1)   with x = [1..5]
=> 0x52009028 + 0x20 * (x-1)               with x = [1..5]

=> 0x52009028   Monitor 1
=> 0x52009048   Monitor 2
=> 0x52009068   Monitor 3
=> 0x52009088   Monitor 4
=> 0x520090a8   Monitor 5

  • RAMECC_MxFDRL  --  failing data low
=> Address offset: 0x2C + 0x20 * (x-1)
=> x = ECC monitoring unit number

=> 0x52009000 + 0x2c + 0x20 * (x-1)   with x = [1..5]
=> 0x5200902c + 0x20 * (x-1)               with x = [1..5]

=> 0x5200902c   Monitor 1
=> 0x5200904c   Monitor 2
=> 0x5200906c   Monitor 3
=> 0x5200908c   Monitor 4
=> 0x520090ac   Monitor 5

  • RAMECC_MxFDRH  --  failing data high
=> Address offset: 0x30 + 0x20 * (x-1)
=> x = ECC monitoring unit number

=> 0x52009000 + 0x30 + 0x20 * (x-1)    with x = [1..5]
=> 0x52009030 + 0x20 * (x-1)                with x = [1..5]

=> 0x52009030   Monitor 1
=> 0x52009050   Monitor 2
=> 0x52009070   Monitor 3
=> 0x52009090   Monitor 4
=> 0x520090b0   Monitor 5

  • RAMECC_MxFECR  --  failing ECC error code
=> Address offset: 0x34 + 0x20 * (x-1)
=> x = ECC monitoring unit number

=> 0x52009000 + 0x34 + 0x20 * (x-1)   with x = [1..5]
=> 0x52009034 + 0x20 * (x-1)               with x = [1..5]

=> 0x52009034   Monitor 1
=> 0x52009054   Monitor 2
=> 0x52009074   Monitor 3
=> 0x52009094   Monitor 4
=> 0x520090b4   Monitor 5




6. How to get the failing address from the content of RAMECC_MxFAR

The information given by the RAMECC_MxFAR register is described in the release manual as the failing address (FADD) for the monitor x.


Bits 31:0   FADD[31:0]: ECC error failing address
 When an ECC error occurs the FADD bitfield contains the address that generated the ECC error.

In fact, the address in FADD[31:0] is relative and it points to a word, not a bit. To calculate the actual RAM address, the following formula must be applied:

RAM Address  =  RAM memory start address  +  FADD  *  word size in byte


Example with FADD= 0x2004:

  • For 64-bit word size memory like AXI SRAM:

0x2400 0000 + 0x2004 * 8 = 0x2401 0020

  • For 32-bit word size memory like SRAM1:

0x3000 0000 + 0x2004 * 4 = 0x3000 8010

7. To go further

RAM ECC monitoring is described in the release manual  -  section 3  -  RAM ECC monitoring (RAMECC).

  • RM0433 STM32H742, STM32H743/753 and STM32H750 Value line advanced Arm®-based 32-bit MCUs
  • RM0468 STM32H723/733, STM32H725/735 and STM32H730 Value line advanced Arm®-based 32-bit MCUs
  • RM0455 STM32H7A3/7B3 and STM32H7B0 Value line advanced Arm®-based 32-bit MCUs
