How to use STMicroelectronics classic USB device middleware with new STM32 families

B.Montanari
ST Employee

Summary

This article presents a tutorial for importing and using the legacy STMicroelectronics USB middleware in the new lines of STM32 to implement a CDC class to open a virtual COM port. The STM32H5 series was selected for this tutorial, but the steps can be easily tailored to some other STM32 families, such as STM32U5.

For all the STM32 series released from 2021 onwards, the now classic, STMicroelectronics USB middleware is no longer offered as part of the STM32Cube native offer. But to maintain compatibility with legacy applications, this package is still available to be downloaded and manually included in your project via our GitHub page. You can download the package from the following links:

GitHub - STMicroelectronics - Middleware USB Device

GitHub - STMicroelectronics - Middleware USB Host



This tutorial was built using STM32CubeIDE 1.13.1, using the STM32CubeH5 HAL driver version 1.1.1 and using the NUCLEO-H503RB, which embeds an STM32H503RBT6 MCU. For further details about this board, refer to the device user manual.




For a detailed explanation regarding the classic USB library, refer to to the USB wiki and the STM32 USB training:

ST Wiki - Introduction to USB with STM32

MOOC - STM32 USB Training



1. Development

Start by creating a project for the STM32H503RB in the STM32CubeIDE.


Once the project creation is done, enable the USB Peripheral in Device only mode and activate its interrupt in the NVIC Settings tab.


After that, increase the amount of heap and stack size of the project as indicated in the image below, this action can be done in the Project Manager tab:


After doing that, generate the code by clicking on the highlighted icon, or just pressing the alt + K shortcut.


Once the code is generated, create a source folder in your project called USB.




Download the USB Device package from the GitHub (the same link presented in the introduction of this article). Open the software pack folder and import the Core folder into the created ‘USB’ folder.


Now, create another folder called ‘Class’ and import the desired classes to your project, in this case, the CDC is the only one selected.

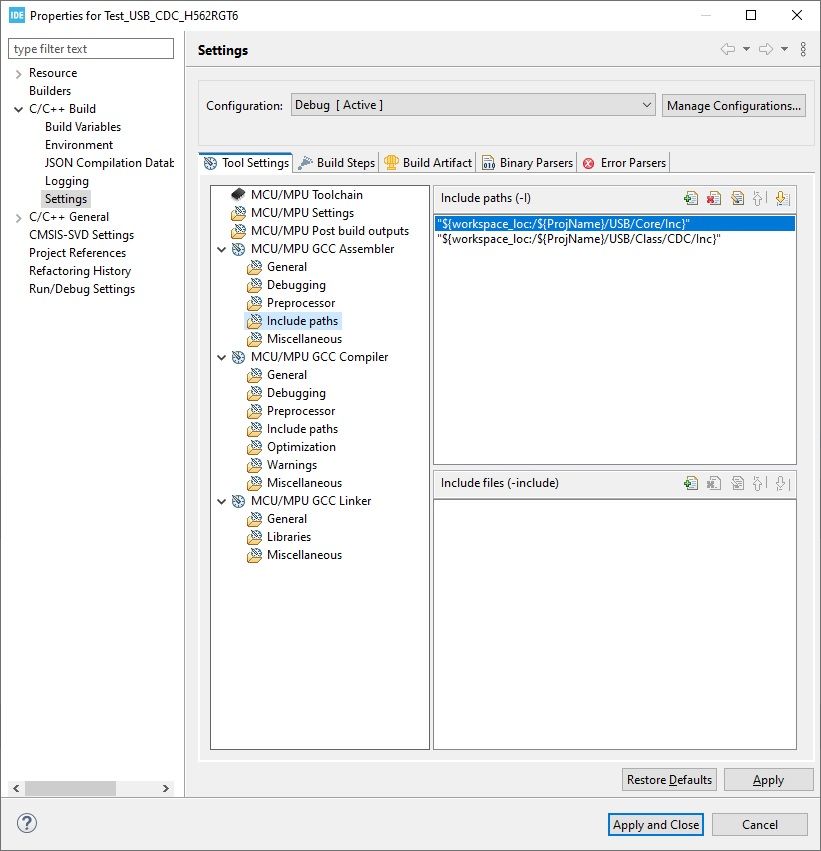

Add the path to the include reference. Right click in the ‘Inc’ folder inside the USB/Class/CDC/.. path, then select `Add/remove include path…` option, and in the pop-up menu, press OK. Perform the same steps for the USB/Core/Inc as well.


Make sure to rename the USB/Core/Inc/usbd_conf_template.h and USB/Core/Src/usbd_conf_template.c files to usbd_conf.h/.c. After doing so, open the usbd_conf.h. In this file, we need to replace the HAL driver header file name according to the MCU Family we are using. In this case, the STM32H503 is being used, so the include is as follows:

/* Includes ------------------------------------------------------------------*/ #include "stm32h5xx.h" /* replace 'stm32xxx' with your HAL driver header filename, ex: stm32f4xx.h */ #include <stdio.h> #include <stdlib.h> #include <string.h>

In the next step, you should change the defines according to your application. In this example, we set the defines as follows (the other defines will not be used and can be deleted):

/** @defgroup USBD_CONF_Exported_Defines * @{ */ #define USBD_MAX_NUM_INTERFACES 1U #define USBD_MAX_NUM_CONFIGURATION 1U #define USBD_MAX_STR_DESC_SIZ 0x100U #define USBD_SELF_POWERED 1U #define USBD_DEBUG_LEVEL 0U /* #define USBD_USER_REGISTER_CALLBACK 1U */ /* ECM, RNDIS, DFU Class Config */ #define USBD_SUPPORT_USER_STRING_DESC 0U /* BillBoard Class Config */ #define USBD_CLASS_USER_STRING_DESC 0U #define USBD_CLASS_BOS_ENABLED 0U #define USB_BB_MAX_NUM_ALT_MODE 0x2U /* CDC Class Config */ #define USBD_CDC_INTERVAL 2000U

After that, the usbd_conf.h file can be saved and closed. Now, open the usbd_conf.c file. In this file, we need to link the HAL PCD drivers with the middleware. First, add the used class include header files:

/* Includes ------------------------------------------------------------------*/ #include "main.h" #include "usbd_core.h" #include "usbd_cdc.h" /* Include class header file */

The second step is to import the PCD_HandleTypeDef to this file:

/* Private variables ---------------------------------------------------------*/ extern PCD_HandleTypeDef hpcd_USB_DRD_FS;

The next one is to create a function prototype, which will be implemented later in this file:

/* Private function prototypes -----------------------------------------------*/ static USBD_StatusTypeDef USBD_Get_USB_Status(HAL_StatusTypeDef hal_status);

Then, we need to implement the PCD Callbacks and populate as follows:

/* Private functions ---------------------------------------------------------*/ void HAL_PCD_SetupStageCallback(PCD_HandleTypeDef *hpcd) { USBD_LL_SetupStage((USBD_HandleTypeDef*)hpcd->pData, (uint8_t *)hpcd->Setup); } void HAL_PCD_DataOutStageCallback(PCD_HandleTypeDef *hpcd, uint8_t epnum) { USBD_LL_DataOutStage((USBD_HandleTypeDef*)hpcd->pData, epnum, hpcd->OUT_ep[epnum].xfer_buff); } void HAL_PCD_DataInStageCallback(PCD_HandleTypeDef *hpcd, uint8_t epnum) { USBD_LL_DataInStage((USBD_HandleTypeDef*)hpcd->pData, epnum, hpcd->IN_ep[epnum].xfer_buff); } void HAL_PCD_SOFCallback(PCD_HandleTypeDef *hpcd) { USBD_LL_SOF((USBD_HandleTypeDef*)hpcd->pData); } void HAL_PCD_ResetCallback(PCD_HandleTypeDef *hpcd) { USBD_SpeedTypeDef speed = USBD_SPEED_FULL; if ( hpcd->Init.speed != PCD_SPEED_FULL) { Error_Handler(); } /* Set Speed. */ USBD_LL_SetSpeed((USBD_HandleTypeDef*)hpcd->pData, speed); /* Reset Device. */ USBD_LL_Reset((USBD_HandleTypeDef*)hpcd->pData); } void HAL_PCD_ConnectCallback(PCD_HandleTypeDef *hpcd) { USBD_LL_DevConnected((USBD_HandleTypeDef*)hpcd->pData); } void HAL_PCD_DisconnectCallback(PCD_HandleTypeDef *hpcd) { USBD_LL_DevDisconnected((USBD_HandleTypeDef*)hpcd->pData); }
View more

Finally, implement the code to perform the driver link for the STM32H503:

USBD_StatusTypeDef USBD_LL_Init(USBD_HandleTypeDef *pdev) { pdev->pData = &hpcd_USB_DRD_FS; HAL_PCDEx_PMAConfig((PCD_HandleTypeDef*)pdev->pData , 0x00 , PCD_SNG_BUF, 0x40); HAL_PCDEx_PMAConfig((PCD_HandleTypeDef*)pdev->pData , 0x80 , PCD_SNG_BUF, 0x80); HAL_PCDEx_PMAConfig((PCD_HandleTypeDef*)pdev->pData , CDC_IN_EP , PCD_SNG_BUF, 0xC0); HAL_PCDEx_PMAConfig((PCD_HandleTypeDef*)pdev->pData , CDC_OUT_EP , PCD_SNG_BUF, 0x100); HAL_PCDEx_PMAConfig((PCD_HandleTypeDef*)pdev->pData , CDC_CMD_EP , PCD_SNG_BUF, 0x140); return USBD_OK; } USBD_StatusTypeDef USBD_LL_DeInit(USBD_HandleTypeDef *pdev) { HAL_StatusTypeDef hal_status; hal_status = HAL_PCD_DeInit(pdev->pData); return USBD_Get_USB_Status(hal_status); } USBD_StatusTypeDef USBD_LL_Start(USBD_HandleTypeDef *pdev) { HAL_StatusTypeDef hal_status; hal_status = HAL_PCD_Start(pdev->pData); return USBD_Get_USB_Status(hal_status); } USBD_StatusTypeDef USBD_LL_Stop(USBD_HandleTypeDef *pdev) { HAL_StatusTypeDef hal_status; hal_status = HAL_PCD_Stop(pdev->pData); return USBD_Get_USB_Status(hal_status); } USBD_StatusTypeDef USBD_LL_OpenEP(USBD_HandleTypeDef *pdev, uint8_t ep_addr, uint8_t ep_type, uint16_t ep_mps) { HAL_StatusTypeDef hal_status; hal_status = HAL_PCD_EP_Open(pdev->pData, ep_addr, ep_mps, ep_type); return USBD_Get_USB_Status(hal_status); } USBD_StatusTypeDef USBD_LL_CloseEP(USBD_HandleTypeDef *pdev, uint8_t ep_addr) { HAL_StatusTypeDef hal_status; hal_status = HAL_PCD_EP_Close(pdev->pData, ep_addr); return USBD_Get_USB_Status(hal_status); } USBD_StatusTypeDef USBD_LL_FlushEP(USBD_HandleTypeDef *pdev, uint8_t ep_addr) { HAL_StatusTypeDef hal_status; hal_status = HAL_PCD_EP_Flush(pdev->pData, ep_addr); return USBD_Get_USB_Status(hal_status); } USBD_StatusTypeDef USBD_LL_StallEP(USBD_HandleTypeDef *pdev, uint8_t ep_addr) { HAL_StatusTypeDef hal_status; hal_status = HAL_PCD_EP_SetStall(pdev->pData, ep_addr); return USBD_Get_USB_Status(hal_status); } USBD_StatusTypeDef USBD_LL_ClearStallEP(USBD_HandleTypeDef *pdev, uint8_t ep_addr) { HAL_StatusTypeDef hal_status; hal_status = HAL_PCD_EP_ClrStall(pdev->pData, ep_addr); return USBD_Get_USB_Status(hal_status); } uint8_t USBD_LL_IsStallEP(USBD_HandleTypeDef *pdev, uint8_t ep_addr) { PCD_HandleTypeDef *hpcd = (PCD_HandleTypeDef*) pdev->pData; if((ep_addr & 0x80) == 0x80) { return hpcd->IN_ep[ep_addr & 0x7F].is_stall; } else { return hpcd->OUT_ep[ep_addr & 0x7F].is_stall; } } USBD_StatusTypeDef USBD_LL_SetUSBAddress(USBD_HandleTypeDef *pdev, uint8_t dev_addr) { HAL_StatusTypeDef hal_status; hal_status = HAL_PCD_SetAddress(pdev->pData, dev_addr); return USBD_Get_USB_Status(hal_status); } USBD_StatusTypeDef USBD_LL_Transmit(USBD_HandleTypeDef *pdev, uint8_t ep_addr, uint8_t *pbuf, uint32_t size) { HAL_StatusTypeDef hal_status; hal_status = HAL_PCD_EP_Transmit(pdev->pData, ep_addr, pbuf, size); return USBD_Get_USB_Status(hal_status); } USBD_StatusTypeDef USBD_LL_PrepareReceive(USBD_HandleTypeDef *pdev, uint8_t ep_addr, uint8_t *pbuf, uint32_t size) { HAL_StatusTypeDef hal_status; hal_status = HAL_PCD_EP_Receive(pdev->pData, ep_addr, pbuf, size); return USBD_Get_USB_Status(hal_status); } uint32_t USBD_LL_GetRxDataSize(USBD_HandleTypeDef *pdev, uint8_t ep_addr) { return HAL_PCD_EP_GetRxCount((PCD_HandleTypeDef*) pdev->pData, ep_addr); } void *USBD_static_malloc(uint32_t size) { UNUSED(size); static uint32_t mem[(sizeof(USBD_CDC_HandleTypeDef) / 4) + 1]; /* On 32-bit boundary */ return mem; } void USBD_static_free(void *p) { UNUSED(p); } void USBD_LL_Delay(uint32_t Delay) { HAL_Delay(Delay); } USBD_StatusTypeDef USBD_Get_USB_Status(HAL_StatusTypeDef hal_status) { USBD_StatusTypeDef usb_status = USBD_OK; switch (hal_status) { case HAL_OK : usb_status = USBD_OK; break; case HAL_ERROR : usb_status = USBD_FAIL; break; case HAL_BUSY : usb_status = USBD_BUSY; break; case HAL_TIMEOUT : usb_status = USBD_FAIL; break; default : usb_status = USBD_FAIL; break; } return usb_status; }
View more

Doing that, all the needed changes in the usbd_conf files are done and we can move forward to the usbd_desc files. So, rename the USB/Core/Src/usbd_desc_template.c  and USB/Core/Inc/usbd_desc_template.h  to usbd_desc.h/.c. Then, let us start by opening the usbd_desc.c file. Here, we need to start changing some defines for the descriptor:

/* Private define ------------------------------------------------------------*/ #define USBD_VID 0x0483 #define USBD_PID 22336 /* Replace '0xaaaa' with your device product ID */ #define USBD_LANGID_STRING 1033 /* Replace '0xbbb' with your device language ID */ #define USBD_MANUFACTURER_STRING "STMicroelectronics" /* Add your manufacturer string */ #define USBD_PRODUCT_HS_STRING "STM32 Virtual ComPort" /* Add your product High Speed string */ #define USBD_PRODUCT_FS_STRING "STM32 Virtual ComPort" /* Add your product Full Speed string */ #define USBD_CONFIGURATION_HS_STRING "CDC Config" /* Add your configuration High Speed string */ #define USBD_INTERFACE_HS_STRING "CDC Interface" /* Add your Interface High Speed string */ #define USBD_CONFIGURATION_FS_STRING "CDC Config" /* Add your configuration Full Speed string */ #define USBD_INTERFACE_FS_STRING "CDC Interface" /* Add your Interface Full Speed string */

And change the descriptor settings, so the VCOM class can work properly (the lines 12 and 13 are the only ones that change from default):

__ALIGN_BEGIN uint8_t USBD_DeviceDesc[USB_LEN_DEV_DESC] __ALIGN_END = { 0x12, /* bLength */ USB_DESC_TYPE_DEVICE, /* bDescriptorType */ #if ((USBD_LPM_ENABLED == 1) || (USBD_CLASS_BOS_ENABLED == 1)) 0x01, /*bcdUSB */ /* changed to USB version 2.01 in order to support BOS Desc */ #else 0x00, /* bcdUSB */ #endif /* (USBD_LPM_ENABLED == 1) || (USBD_CLASS_BOS_ENABLED == 1) */ 0x02, 0x02, /* bDeviceClass */ 0x02, /* bDeviceSubClass */ 0x00, /* bDeviceProtocol */ USB_MAX_EP0_SIZE, /* bMaxPacketSize */ LOBYTE(USBD_VID), /* idVendor */ HIBYTE(USBD_VID), /* idVendor */ LOBYTE(USBD_PID), /* idVendor */ HIBYTE(USBD_PID), /* idVendor */ 0x00, /* bcdDevice rel. 2.00 */ 0x02, USBD_IDX_MFC_STR, /* Index of manufacturer string */ USBD_IDX_PRODUCT_STR, /* Index of product string */ USBD_IDX_SERIAL_STR, /* Index of serial number string */ USBD_MAX_NUM_CONFIGURATION /* bNumConfigurations */ }; /* USB_DeviceDescriptor */

You can change the template resource names to the most convenient name according to your implementation. For example, changing the function:

uint8_t *USBD_Class_DeviceDescriptor(USBD_SpeedTypeDef speed, uint16_t *length);

 to:

uint8_t *USBD_CDC_DeviceDescriptor(USBD_SpeedTypeDef speed, uint16_t *length);

Make sure to update all the references related to these resources to avoid compiling warnings and errors.

Doing that, the editions in the usbd_desc.c are done, save this file and open the usbd_desc.h. In this file, edit the USBD_DescriptorsTypeDef exporting line to reflect the variable declared in the usbd_desc.c file. Since we did not change the resources name in this file, to make it easier to be followed, the standard name is used:

/* Exported functions ------------------------------------------------------- */ extern USBD_DescriptorsTypeDef Class_Desc; /* Replace 'XXX_Desc' with your active USB device class, ex: HID_Desc */

You can save and close both usbd_desc.h/.c files and move to the next one. In the following step, we need to rename the USB/Class/CDC/Inc/usbd_cdc_if_template.h and USB/Class/CDC/Src/usbd_cdc_if_template.c to usbd_cdc_if.h/.c. In the usbd_cdc_if.h file, add the following defines:

/* Exported constants --------------------------------------------------------*/ #define APP_RX_DATA_SIZE 512 #define APP_TX_DATA_SIZE 512

Add the exported function to transmit data through the VCP:

/* Exported functions ------------------------------------------------------- */ uint8_t TEMPLATE_Transmit(uint8_t* Buf, uint16_t Len);

Now, you can save and close this file to open the usbd_cdc_if.c. In this file, declare the buffer variables:

/* Create buffer for reception and transmission */ /* It's up to user to redefine and/or remove those define */ /** Received data over USB are stored in this buffer */ uint8_t UserRxBufferFS[APP_RX_DATA_SIZE]; /** Data to send over USB CDC are stored in this buffer */ uint8_t UserTxBufferFS[APP_TX_DATA_SIZE]; extern USBD_HandleTypeDef hUsbDeviceFS;

Then populate the following functions as shown below:

static int8_t TEMPLATE_Init(void) { USBD_CDC_SetTxBuffer(&hUsbDeviceFS, UserTxBufferFS, 0); USBD_CDC_SetRxBuffer(&hUsbDeviceFS, UserRxBufferFS); return (0); } static int8_t TEMPLATE_Receive(uint8_t *Buf, uint32_t *Len) { USBD_CDC_ReceivePacket(&hUsbDeviceFS); return (USBD_OK); }

Finally, you can add the transmit function as:

uint8_t TEMPLATE_Transmit(uint8_t* Buf, uint16_t Len) { uint8_t result = USBD_OK; USBD_CDC_HandleTypeDef *hcdc = (USBD_CDC_HandleTypeDef*)hUsbDeviceFS.pClassData; if (hcdc->TxState != 0){ return USBD_BUSY; } USBD_CDC_SetTxBuffer(&hUsbDeviceFS, Buf, Len); result = USBD_CDC_TransmitPacket(&hUsbDeviceFS); return result; }

There are no restrictions to change the function names and remove the TEMPLATE portion of it, but this action is up to the developer. You can save and close this file, and move to the main.c file. This article uses the comment section’s as guidance for the needed code to be added.

In this file, include the following headers:

/* Private includes ----------------------------------------------------------*/ /* USER CODE BEGIN Includes */ #include "usbd_core.h" #include "usbd_cdc_if.h" /* USER CODE END Includes */

Then, add these variables:

/* USER CODE BEGIN PV */ USBD_HandleTypeDef hUsbDeviceFS; extern USBD_DescriptorsTypeDef Class_Desc; /* USER CODE END PV */

And finally, add the following code into the MX_USB_PCD_Init function (note that each code has a user code section):

/* USER CODE BEGIN USB_Init 0 */ hpcd_USB_DRD_FS.pData = &hUsbDeviceFS; /* USER CODE END USB_Init 0 */ /* USER CODE BEGIN USB_Init 2 */ if(USBD_Init(&hUsbDeviceFS, &Class_Desc, 0) != USBD_OK) Error_Handler(); if (USBD_RegisterClass(&hUsbDeviceFS, &USBD_CDC) != USBD_OK) Error_Handler(); if(USBD_CDC_RegisterInterface(&hUsbDeviceFS, &USBD_CDC_Template_fops) != USBD_OK) Error_Handler(); if(USBD_Start(&hUsbDeviceFS) != USBD_OK) Error_Handler(); /* USER CODE END USB_Init 2 */

Now, all the needed implementations are done. The next steps are just to create an example to check the middleware functionality.

To check the functionality, add the following code into the main.c file:

/* USER CODE BEGIN 1 */ uint8_t TxMessageBuffer[] = "MY USB IS WORKING! \r\n"; /* USER CODE END 1 */ /* USER CODE BEGIN 2 */ while(hUsbDeviceFS.pClassData == NULL); /* USER CODE END 2 */ /* Infinite loop */ /* Infinite loop */ /* USER CODE BEGIN WHILE */ while (1) { TEMPLATE_Transmit(TxMessageBuffer, sizeof(TxMessageBuffer)); HAL_Delay(500); /* USER CODE END WHILE */ /* USER CODE BEGIN 3 */ } /* USER CODE END 3 */

In the USB/Class/CDC/Src/usbd_cdc_if.c file, add the following code:

static int8_t TEMPLATE_Receive(uint8_t *Buf, uint32_t *Len) { if(Buf[0] == '1') HAL_GPIO_WritePin(GPIOA, GPIO_PIN_5, GPIO_PIN_SET); else if(Buf[0] == '0') HAL_GPIO_WritePin(GPIOA, GPIO_PIN_5, GPIO_PIN_RESET); USBD_CDC_ReceivePacket(&hUsbDeviceFS); return (USBD_OK); }

Congratulations on reaching here! Now, you have all the necessary settings and demo code to test the example we have presented here. Now, let us see the results!

2. Results

The implemented code shows a basic transmit and receive data through the USB Virtual COM Port. At the beginning the TxMessageBuffer is created and filled with a message to be transmitted.

/* USER CODE BEGIN 1 */ uint8_t TxMessageBuffer[] = "MY USB IS WORKING! \r\n"; /* USER CODE END 1 */

After that, we wait for the USB to be connected and set, polling the pClassData into the hUsbDeviceFS.

/* USER CODE BEGIN 2 */ while(hUsbDeviceFS.pClassData == NULL); /* USER CODE END 2 */

Once the USB is connected and set, we start to transmit the message on every 500 ms, as the code below:

/* Infinite loop */ /* USER CODE BEGIN WHILE */ while (1) { TEMPLATE_Transmit(TxMessageBuffer, sizeof(TxMessageBuffer)); HAL_Delay(500); /* USER CODE END WHILE */ /* USER CODE BEGIN 3 */ } /* USER CODE END 3 */

Finally, we use the received data to control the status of the User LED available in the Nucleo board, connected to the PA5, according to its User Manual.

static int8_t TEMPLATE_Receive(uint8_t *Buf, uint32_t *Len) { if(Buf[0] == '1') HAL_GPIO_WritePin(GPIOA, GPIO_PIN_5, GPIO_PIN_SET); else if(Buf[0] == '0') HAL_GPIO_WritePin(GPIOA, GPIO_PIN_5, GPIO_PIN_RESET); USBD_CDC_ReceivePacket(&hUsbDeviceFS); return (USBD_OK); }

Now that you know how the demo works, let us try it. So, build (you should get zero errors and zero warnings) then click on the Debug button and wait for the debug session to be opened. Your STLINK might request to be updated. You can do so and then issue to debug again once it is completed.


Wait until the code reaches the breakpoint in the first line of the main function:


Then click on Resume, or press F8 to let the application start to run:


Let us open a terminal in the STM32CubeIDE to see the application running. For that, click o New  Shell console:


In the opened menu, select Serial Port for the Connection Type, then click on New…


In the new menu, create a connection for your board. Make sure to select the proper Serial Port, then click Finish and finally OK:


Doing that, a console with a Virtual COM Port terminal opens and we can see our application running, printing the message on every 500 ms. If you type ‘1’ the User LED should be turned ON and ‘0’ will turn it OFF.


3. Conclusion

That concludes our article. Now you have the needed information to implement the STMicroelectronics classic USB device middleware. The steps for doing that in another MCU Family or for other classes are very similar. If you face any difficulties while developing, refer to our demonstration projects available in our GitHub or contact us through the Community or by the On-line Support channel.

We hope the this article was helpful!

4. Relevant links:

Here are some relevant links that can help you in your developments using our ST peripheral:

ST Wiki - Introduction to USB with STM32

MOOC - STM32 USB Training

GitHub - STMicroelectronics - Middleware USB Device

GitHub - STMicroelectronics - Middleware USB Host

STMicroelectronics · GitHub

NUCLEO-H503RB User Manual

STM32H503RB - High-performance, Arm Cortex-M33, MCU with 128-Kbyte Flash, 32-Kbyte RAM, 250 MHz CPU - STMicroelectronics

Comments
Thatseasy
Associate III

Hi @D.Botelho, nothing special, I think I disabled ICache, added HAL_PWREx_EnableVddUSB() before initializing USB clock in HAL_PCD_MspInit(), also make sure GPIO Alternate = GPIO_AF10_USB.

Thanks,

Bin

DavidRi
Associate II

Is there an example of how this could be done on a stm32U5A5 in ThreadX/USBX?

D.Botelho
ST Employee

Hello @DavidRi,



Yes, please refer to de demos in the link below:

STM32CubeU5/Projects/NUCLEO-U5A5ZJ-Q/Applications/USBX at main · STMicroelectronics/STM32CubeU5 · GitHub



Hope it helps,

Best Regards,

Dan

DavidRi
Associate II

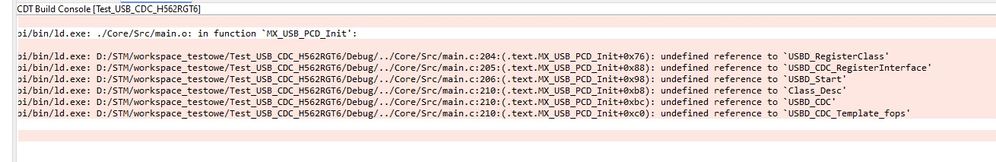

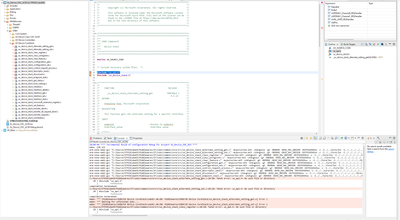

This is the result what is wrong?


Regards

David.



D.Botelho
ST Employee

Hello @DavidRi,

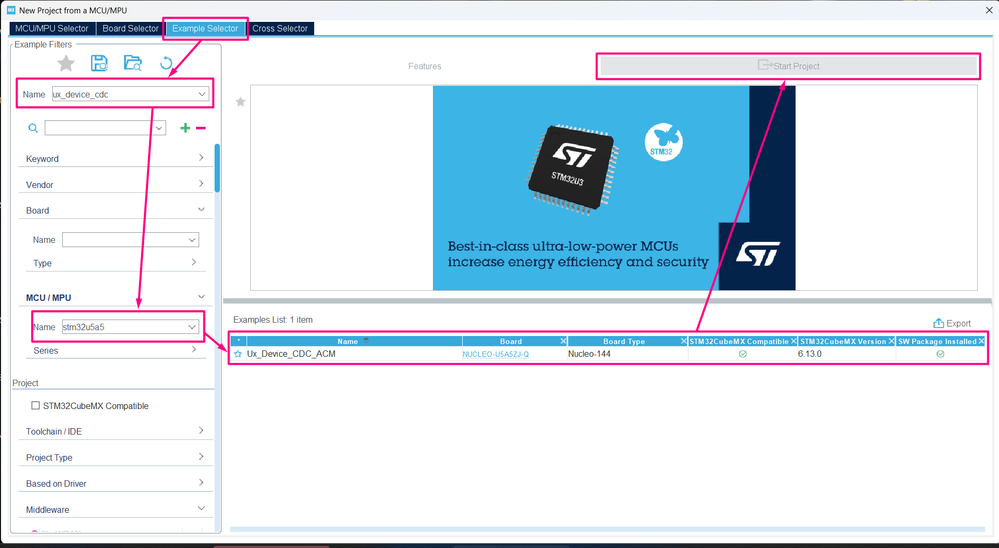

Let's try importing in a different way. When creating a new project in the STM32CubeIDE, in the MCU selector, navigate to the Example Selector menu, search for the demo and MCU, and finally start the project. It will import the files in the right way, avoiding compilation issues.




Hope it helps!

Best Regards,

Dan

DavidRi
Associate II

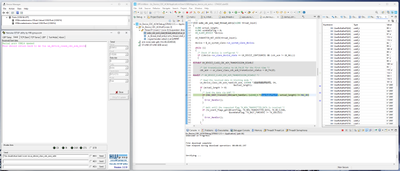

Thanks Dan that building and running now.  However it does not transmit back my receive buffer, when sent back from beyond the breakpoint indicated below...


Regards

David.

D.Botelho
ST Employee

Hello @DavidRi ,



The purpose of this demo is to act as a UART to USB bridge. So, the data you send through UART will appear in the USB VCom, and the data sent through VCom will appear in the USB. The used UART is connected to the ST-LINK VCom port. Therefore, this demo will use the two VCOM Ports available in your board. The first one is the ST-LINK VCOM Port, and the second one is your USB CDC ACM Application.



To see the complete demo working, you should open two VCom terminals, one for the ST-LINK and the other for the USB CDC ACM. Then, when you send a data through a terminal, this data should be echoed in the second terminal.



Best Regards,

Dan

DavidRi
Associate II

Thanks for this, this is exactly what is happening, however I want to receive and transmit on the virtual com port only (COM 14 in my case).  How would I do this?

Regards

David.



lucagtechnika
Associate



Thanks for this article @B.Montanari

Is there another step-by-step article for USB Host and MSC class?
I am using STM32H523 microcontroller and USBX bare metal is not working. ST support suggests to follow your article but I need to implement a USB Host for MSC class.

Regards



Robmar
Senior III

With our experience with STM USB "libraries" I'd not waste more time on it, and use the fully supported TinyUSB library, which is vastly more complete and supports H7 series MCUs.

D.Botelho
ST Employee

Hello @lucagtechnika ,



Hope you are doing well.

I have an example project running the USB Host with MSC on the STM32H573. Since I'm working in an article showing on how to do this implementation. I've sent you a private message with the code, since I wasn't able to attach it with this message.

Unfortunately, this example uses our Classic USB Stack instead of the USBX. But I believe it could be a good starting point for you.



We are going to publish the article soon, but if anyone else needs this example, please feel free to reach out to me.



Hope this can help you!

Best Regards,

Dan

Robmar
Senior III

That's great, some support from ST at last, I'm pleased your boss is allowing you to do this, and would appreciate a copy of the project to test on our H743VIT6.

I'm currently trying to get an USB volume control working, but no luck so far.  I have modified STM's standard USB keyboard and mouse code, and using the mouse code can read the consumer keys from the keyboard with a few modifications to the setidle() IDs.

I'm trying to hire a USB consultant to help, but so far haven't found anyone, so any help would be appreciate to get the USB volume control and full keyboard working.

lucagtechnika
Associate

@D.Botelho I replied in the private message, however while waiting for an answer I was able to insert, in my project, the old USB libraries using as a reference a project generated with the CubeMX for a micro STM32G0.
If anyone is interested I can try to do the same thing using a demoboard project.



I hope that ST will soon solve the problem or at least give the possibility to choose to use the old or the new USB libraries.

PFlor.2
Senior II

Thanks for this example!  I am using a STM32H563 with FreeRTOS and did not realize it did not support the FATFS USB Host middleware until it was too late.  I've incorporated the ST MW for FATFs and USBHost  and enable the USB Host USB_DRD_FS type hardware peripheral....everything builds but I cannot get a USB interrupt when inserting the USB Flash drive.  I see the USB_DP signal line go high (5V) when the drive is inserted (both DP and DM are low with no drive inserted).  I've put in the USB Host initialization correctly below...

int main(void) { /* USER CODE BEGIN 1 */ /* USER CODE END 1 */ /* MCU Configuration--------------------------------------------------------*/ /* Reset of all peripherals, Initializes the Flash interface and the Systick. */ HAL_Init(); /* USER CODE BEGIN Init */ /* USER CODE END Init */ /* Configure the system clock */ SystemClock_Config(); /* USER CODE BEGIN SysInit */ /* USER CODE END SysInit */ /* Initialize all configured peripherals */ MX_GPIO_Init(); MX_GPDMA1_Init(); MX_ICACHE_Init(); MX_CRC_Init(); MX_SPI3_Init(); MX_TIM2_Init(); MX_UART5_Init(); MX_OCTOSPI1_Init(); MX_TouchGFX_Init(); /* Call PreOsInit function */ MX_TouchGFX_PreOSInit(); /* USER CODE BEGIN 2 */ MX_USB_HOST_Init(); MX_FATFS_Init(); ST7789v_Init(); prmInit();
View more

 ...the init initializes the USB host and registers MSC class

void MX_USB_HOST_Init(void) { /* USER CODE BEGIN USB_HOST_Init_PreTreatment */ /* USER CODE END USB_HOST_Init_PreTreatment */ /* Init host Library, add supported class and start the library. */ if (USBH_Init(&hUsbHostFS, USBH_UserProcess, HOST_FS) != USBH_OK) { Error_Handler(); } if (USBH_RegisterClass(&hUsbHostFS, USBH_MSC_CLASS) != USBH_OK) { Error_Handler(); } if (USBH_Start(&hUsbHostFS) != USBH_OK) { Error_Handler(); } /* USER CODE BEGIN USB_HOST_Init_PostTreatment */ /* USER CODE END USB_HOST_Init_PostTreatment */ }

 ... I did notice in the HAL_HDC_Init() that the __HAL_HCD_DISABLE(hhcd) disables the interrupt but the HAL_USB_Start() for the USB_DRD_FS does not enable the interrupts like the HAL_USB_Start() for the USB_OTG_FS does.

HAL_StatusTypeDef HAL_HCD_Init(HCD_HandleTypeDef *hhcd) { /* Check the HCD handle allocation */ if (hhcd == NULL) { return HAL_ERROR; } /* Check the parameters */ assert_param(IS_HCD_ALL_INSTANCE(hhcd->Instance)); if (hhcd->State == HAL_HCD_STATE_RESET) { /* Allocate lock resource and initialize it */ hhcd->Lock = HAL_UNLOCKED; /* Init the low level hardware : GPIO, CLOCK, NVIC... */ HAL_HCD_MspInit(hhcd); } hhcd->State = HAL_HCD_STATE_BUSY; /* Disable the Interrupts */ (void)__HAL_HCD_DISABLE(hhcd); /* Dma not supported, force to zero */ hhcd->Init.dma_enable = 0U; /* Init the Core (common init.) */ (void)USB_CoreInit(hhcd->Instance, hhcd->Init); /* Force Host Mode */ (void)USB_SetCurrentMode(hhcd->Instance, USB_HOST_MODE); /* Init Host */ (void)USB_HostInit(hhcd->Instance, hhcd->Init); hhcd->State = HAL_HCD_STATE_READY; /* Host Port State */ hhcd->HostState = HCD_HCD_STATE_DISCONNECTED; /* Init PMA Address */ (void)HAL_HCD_PMAReset(hhcd); /* Enable the Interrupts */ // (void)__HAL_HCD_ENABLE(hhcd); hhcd->State = HAL_HCD_STATE_READY; return HAL_OK; }
View more

 ...so I added __HAL_HCD_ENABLE to the USB_DRD_FS HAL_HCD_Start() as shown below...

HAL_StatusTypeDef HAL_HCD_Start(HCD_HandleTypeDef *hhcd) { __IO uint32_t count = HCD_PDWN_EXIT_CNT; __HAL_LOCK(hhcd); /* Remove PowerDown */ hhcd->Instance->CNTR &= ~USB_CNTR_PDWN; /* Few cycles to ensure exit from powerdown */ while (count > 0U) { count--; } /* Clear Reset */ hhcd->Instance->CNTR &= ~USB_CNTR_USBRST; __HAL_UNLOCK(hhcd); __HAL_HCD_ENABLE(hhcd); return HAL_OK; }

however, I still do not get an interrupt when inserting the USB drive.

I did notice when enabling the USB Host with the .ioc that the generated code did not setup the USB DP/DM pins so I did this manually...

void HAL_HCD_MspInit(HCD_HandleTypeDef* hcdHandle) { GPIO_InitTypeDef GPIO_InitStruct = {0}; RCC_PeriphCLKInitTypeDef PeriphClkInitStruct = {0}; if(hcdHandle->Instance==USB_DRD_FS) { /* USER CODE BEGIN USB_DRD_FS_MspInit 0 */ /* USER CODE END USB_DRD_FS_MspInit 0 */ /**USB_DRD_FS GPIO Configuration PA11 ------> USB_DRD_FS_DM PA12 ------> USB_DRD_FS_DP */ GPIO_InitStruct.Pin = GPIO_PIN_11|GPIO_PIN_12; GPIO_InitStruct.Mode = GPIO_MODE_AF_PP; GPIO_InitStruct.Pull = GPIO_NOPULL; GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_VERY_HIGH; GPIO_InitStruct.Alternate = GPIO_AF10_USB; HAL_GPIO_Init(GPIOA, &GPIO_InitStruct); PeriphClkInitStruct.PeriphClockSelection = RCC_PERIPHCLK_USB; PeriphClkInitStruct.UsbClockSelection = RCC_USBCLKSOURCE_HSI48; if (HAL_RCCEx_PeriphCLKConfig(&PeriphClkInitStruct) != HAL_OK) { Error_Handler(); } /* Enable VDDUSB */ // HAL_PWREx_EnableVddUSB(); __HAL_RCC_USB_CLK_ENABLE(); /* USB_DRD_FS interrupt Init */ HAL_NVIC_SetPriority(USB_DRD_FS_IRQn, 0, 0); HAL_NVIC_EnableIRQ(USB_DRD_FS_IRQn); /* USER CODE BEGIN USB_DRD_FS_MspInit 1 */ /* USER CODE END USB_DRD_FS_MspInit 1 */ } }
View more

Any idea what I could be missing???

D.Botelho
ST Employee

Hello @PFlor.2 ,



You need to uncomment the function below to get your USB working.

HAL_PWREx_EnableVddUSB();



Many users think that this function is used to turn ON the 5V at USB VBus, but it's not correct.

This function is required on all STM32H5 with USB applications. Its purpose is to power the internal USB peripheral to get it working.



Best Regards,

Dan
