Hello,
Im not that advanced yet to understand like half of the things you asked for, but i will try :)

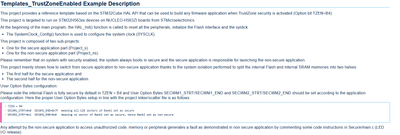

If it would be easier i can just upload whole project somewhere, but generally: Opened CubeMX, Select STM32H563ZIT (MCU on Nucleo-H563ZI board).Activate CRC to Cortex-M33 secure, generate code. Add ST Cryptography libraries to project, write minimal cmox_ciper_encrypt test code in secure area, write linker function to call this from non secure area, make the call. Code reaches cmox_cipher_encrypt() function and then hardfaults.
- Device / Software:
- STM32H563ZIT6
- LQFP-144
- STM32CubeMX version: 6.17.0
- CMOX version: No idea where to find this, but generally libraries
- Compiler / toolchain: arm-none-eabi-gcc
- IDE version: 2.1.0
- Execution Context:
- Secure or Non-Secure execution: Executing encryption function in Secure zone
- TrustZone enabled: Yes
- SAU configuration: Default?
- GTZC configuration: Default?
- MPU configuration: Default? - CRC Setup:
- Is the CRC clock enabled before the first crypto call? No
- Is the CRC peripheral reset to a known state? Should be in its default state after initialization
- Does any other code access CRC before CMOX? No
- Is CRC assigned to the correct security domain? Yes
- CRC initialization code:
static void MX_CRC_Init(void)
{
/* USER CODE BEGIN CRC_Init 0 */
/* USER CODE END CRC_Init 0 */
/* USER CODE BEGIN CRC_Init 1 */
/* USER CODE END CRC_Init 1 */
hcrc.Instance = CRC;
hcrc.Init.DefaultPolynomialUse = DEFAULT_POLYNOMIAL_ENABLE;
hcrc.Init.DefaultInitValueUse = DEFAULT_INIT_VALUE_ENABLE;
hcrc.Init.InputDataInversionMode = CRC_INPUTDATA_INVERSION_NONE;
hcrc.Init.OutputDataInversionMode = CRC_OUTPUTDATA_INVERSION_DISABLE;
hcrc.InputDataFormat = CRC_INPUTDATA_FORMAT_BYTES;
if (HAL_CRC_Init(&hcrc) != HAL_OK)
{
Error_Handler();
}
/* USER CODE BEGIN CRC_Init 2 */
/* USER CODE END CRC_Init 2 */
}
- Crypto Parameters:
- Algorithm: AES-256
- Mode: CBC
- Key size: 32 bytes
- IV size: 16 bytes
- Padding mode: None
- Input length: 16 bytes - Test Vector:
- Exact key: 0x603DEB1015CA71BE2B73AEF0857D77811F352C073B6108D72D9810A30914DFF4
- Exact IV: 0x000102030405060708090A0B0C0D0E0F
- Plaintext: 0x6BC1BEE22E409F96E93D7E117393172A
- Expected ciphertext: 0xF58C4C04D6E5F1BA779EABFB5F7BFBD6
- Actual ciphertext:Hardfault - Memory Placement:
Would be good to know how to check all of theese. Buffers are generally declared as uint8_t key[32] and so before calling all of the cmox functions.
- Input buffer address:
- Output buffer address:
- Are the buffers located in Secure RAM?
- Are the buffers properly aligned?
- Linker section used: - Reproduction Behavior:
- Is the first run different from the subsequent runs? No
- Are all runs identical? Yes
- Does it match the online calculator? Hardfault
- Does it match the NIST vector? Hardfault
- Number of iterations tested: a lot - Fault Information:
- HardFault occurs: Yes
- SecureFault occurs: No
- CFSR: 1048576
- HFSR: 1073741824
- BFAR: 805633116
- MMFAR: 805633116
- Stacked PC: 0xc0019d8
- Stacked LR: -23
- Call stack: Corrupted.
For the second part of the problem, when running same exact code in non-secure area:
Getting different values for the first run compared to all other runs seems to have been some other function using CRC engine before the encryption, that got sorted out with the fresh project and only encryption function tests. Besides that, return value still does not match the expected value.
Expected ciphertext from NIST: 0xF58C4C04D6E5F1BA779EABFB5F7BFBD6
Actual ciphertext from STM: 0x17A6495D11D8BEF42610AD89AFBD5633
Returned ciphertext does not match neither NIST nor online calculator (online calculator matches NIST).
Code snippet for actual encryption:
cmox_cbc_handle_t Cbc_Ctx;
uint8_t key[32] = {0x60,0x3D,0xEB,0x10,0x15,0xCA,0x71,0xBE,0x2B,0x73,0xAE,0xF0,0x85,0x7D,0x77,0x81,0x1F,0x35,0x2C,0x07,0x3B,0x61,0x08,0xD7,0x2D,0x98,0x10,0xA3,0x09,0x14,0xDF,0xF4};
uint8_t iv[16] = {0x00,0x01,0x02,0x03,0x04,0x05,0x06,0x07,0x08,0x09,0x0A,0x0B,0x0C,0x0D,0x0E,0x0F};
uint8_t input[16] = {0x6B,0xC1,0xBE,0xE2,0x2E,0x40,0x9F,0x96,0xE9,0x3D,0x7E,0x11,0x73,0x93,0x17,0x2A};
uint8_t output[16] = {0};
cmox_cipher_retval_t retval;
size_t computed_size;
cmox_cipher_handle_t *cipher_ctx;
uint32_t index;
cmox_init_arg_t init_target = {CMOX_INIT_TARGET_AUTO, NULL};
if (cmox_initialize(&init_target) != CMOX_INIT_SUCCESS)
{
Error_Handler();
}
retval = cmox_cipher_encrypt(CMOX_AES_CBC_ENC_ALGO, input, sizeof(input), key, sizeof(key),iv, sizeof(iv), output, &computed_size);
HAL_Delay(10);
Best regards,
Dainius
