#STM32F429BIT6 #EdgeTX open FW
hi, I build a custom board to run EdgeTX_2.7.1 firmware on it. The board able boot up, and run but having issue to access SD card content. Further debug, SD_CLK is stuck at 400kHz.
The expected behavior of it is during initialization is 400kHz, after done it will change to 24Mhz.

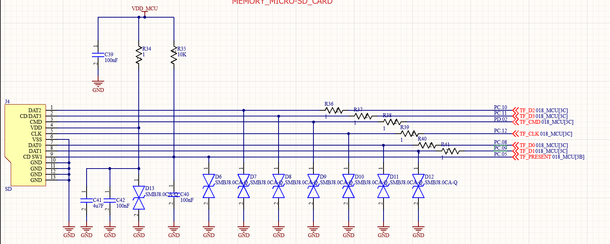

Anyone can advice on it? is my schematic issues?
*/
OPTIMIZE("O0") SD_Error SD_PowerON(void)
{
__IO SD_Error errorstatus = SD_OK;
uint32_t response = 0, count = 0, validvoltage = 0;
uint32_t SDType = SD_STD_CAPACITY;
/*!< Power ON Sequence -----------------------------------------------------*/
/*!< Configure the SDIO peripheral */
/*!< SDIO_CK = SDIOCLK / (SDIO_INIT_CLK_DIV + 2) */
/*!< on STM32F4xx devices, SDIOCLK is fixed to 48MHz */
/*!< SDIO_CK for initialization should not exceed 400 KHz */
SDIO_InitStructure.SDIO_ClockDiv = SD_SDIO_INIT_CLK_DIV;
SDIO_InitStructure.SDIO_ClockEdge = SDIO_ClockEdge_Rising;
SDIO_InitStructure.SDIO_ClockBypass = SDIO_ClockBypass_Disable;
SDIO_InitStructure.SDIO_ClockPowerSave = SDIO_ClockPowerSave_Disable;
SDIO_InitStructure.SDIO_BusWide = SDIO_BusWide_1b;
SDIO_InitStructure.SDIO_HardwareFlowControl = SDIO_HardwareFlowControl_Disable;
SDIO_Init(&SDIO_InitStructure);
/*!< Set Power State to ON */
SDIO_SetPowerState(SDIO_PowerState_ON);
/*!< Enable SDIO Clock */
SDIO_ClockCmd(ENABLE);
/*!< CMD0: GO_IDLE_STATE ---------------------------------------------------*/
/*!< No CMD response required */
SDIO_CmdInitStructure.SDIO_Argument = 0x0;
SDIO_CmdInitStructure.SDIO_CmdIndex = SD_CMD_GO_IDLE_STATE;
SDIO_CmdInitStructure.SDIO_Response = SDIO_Response_No;
SDIO_CmdInitStructure.SDIO_Wait = SDIO_Wait_No;
SDIO_CmdInitStructure.SDIO_CPSM = SDIO_CPSM_Enable;
SDIO_SendCommand(&SDIO_CmdInitStructure);
errorstatus = CmdError();
if (errorstatus != SD_OK) {
TRACE("SD_CMD_GO_IDLE_STATE status=%d", errorstatus);
/*!< CMD Response TimeOut (wait for CMDSENT flag) */
return errorstatus;
}
/*!< CMD8: SEND_IF_COND ----------------------------------------------------*/
/*!< Send CMD8 to verify SD card interface operating condition */
/*!< Argument: - [31:12]: Reserved (shall be set to '0')
- [11:8]: Supply Voltage (VHS) 0x1 (Range: 2.7-3.6 V)
- [7:0]: Check Pattern (recommended 0xAA) */
/*!< CMD Response: R7 */
SDIO_CmdInitStructure.SDIO_Argument = SD_CHECK_PATTERN;
SDIO_CmdInitStructure.SDIO_CmdIndex = SDIO_SEND_IF_COND;
SDIO_CmdInitStructure.SDIO_Response = SDIO_Response_Short;
SDIO_CmdInitStructure.SDIO_Wait = SDIO_Wait_No;
SDIO_CmdInitStructure.SDIO_CPSM = SDIO_CPSM_Enable;
SDIO_SendCommand(&SDIO_CmdInitStructure);
errorstatus = CmdResp7Error();
if (errorstatus == SD_OK) {
CardType = SDIO_STD_CAPACITY_SD_CARD_V2_0; /*!< SD Card 2.0 */
SDType = SD_HIGH_CAPACITY;
}
else {
/*!< CMD55 */
SDIO_CmdInitStructure.SDIO_Argument = 0x00;
SDIO_CmdInitStructure.SDIO_CmdIndex = SD_CMD_APP_CMD;
SDIO_CmdInitStructure.SDIO_Response = SDIO_Response_Short;
SDIO_CmdInitStructure.SDIO_Wait = SDIO_Wait_No;
SDIO_CmdInitStructure.SDIO_CPSM = SDIO_CPSM_Enable;
SDIO_SendCommand(&SDIO_CmdInitStructure);
errorstatus = CmdResp1Error(SD_CMD_APP_CMD);
}
/*!< CMD55 */
SDIO_CmdInitStructure.SDIO_Argument = 0x00;
SDIO_CmdInitStructure.SDIO_CmdIndex = SD_CMD_APP_CMD;
SDIO_CmdInitStructure.SDIO_Response = SDIO_Response_Short;
SDIO_CmdInitStructure.SDIO_Wait = SDIO_Wait_No;
SDIO_CmdInitStructure.SDIO_CPSM = SDIO_CPSM_Enable;
SDIO_SendCommand(&SDIO_CmdInitStructure);
errorstatus = CmdResp1Error(SD_CMD_APP_CMD);
/*!< If errorstatus is Command TimeOut, it is a MMC card */
/*!< If errorstatus is SD_OK it is a SD card: SD card 2.0 (voltage range mismatch)
or SD card 1.x */
if (errorstatus == SD_OK) {
/*!< SD CARD */
/*!< Send ACMD41 SD_APP_OP_COND with Argument 0x80100000 */
while ((!validvoltage) && (count < SD_MAX_VOLT_TRIAL)) {
/*!< SEND CMD55 APP_CMD with RCA as 0 */
SDIO_CmdInitStructure.SDIO_Argument = 0x00;
SDIO_CmdInitStructure.SDIO_CmdIndex = SD_CMD_APP_CMD;
SDIO_CmdInitStructure.SDIO_Response = SDIO_Response_Short;
SDIO_CmdInitStructure.SDIO_Wait = SDIO_Wait_No;
SDIO_CmdInitStructure.SDIO_CPSM = SDIO_CPSM_Enable;
SDIO_SendCommand(&SDIO_CmdInitStructure);
errorstatus = CmdResp1Error(SD_CMD_APP_CMD);
if (errorstatus != SD_OK) {
TRACE("SD_CMD_APP_CMD status=%d", errorstatus);
return errorstatus;
}
SDIO_CmdInitStructure.SDIO_Argument = SD_VOLTAGE_WINDOW_SD | SDType;
SDIO_CmdInitStructure.SDIO_CmdIndex = SD_CMD_SD_APP_OP_COND;
SDIO_CmdInitStructure.SDIO_Response = SDIO_Response_Short;
SDIO_CmdInitStructure.SDIO_Wait = SDIO_Wait_No;
SDIO_CmdInitStructure.SDIO_CPSM = SDIO_CPSM_Enable;
SDIO_SendCommand(&SDIO_CmdInitStructure);
errorstatus = CmdResp3Error();
if (errorstatus != SD_OK) {
TRACE("SD_CMD_SD_APP_OP_COND status=%d", errorstatus);
return errorstatus;
}
response = SDIO_GetResponse(SDIO_RESP1);
validvoltage = (((response >> 31) == 1) ? 1 : 0);
count++;
}
if (count >= SD_MAX_VOLT_TRIAL) {
errorstatus = SD_INVALID_VOLTRANGE;
return errorstatus;
}
if (response &= SD_HIGH_CAPACITY) {
CardType = SDIO_HIGH_CAPACITY_SD_CARD;
}
}
return errorstatus;
}
/**
* @brief Turns the SDIO output signals off.
* @PAram None
* @retval SD_Error: SD Card Error code.
*/
OPTIMIZE("O0") SD_Error SD_PowerOFF(void)
{
SD_Error errorstatus = SD_OK;
/*!< Set Power State to OFF */
SDIO_SetPowerState(SDIO_PowerState_OFF);
return errorstatus;
}
/**
* @brief Intialises all cards or single card as the case may be Card(s) come
* into standby state.
* @PAram None
* @retval SD_Error: SD Card Error code.
*/
OPTIMIZE("O0") SD_Error SD_InitializeCards(void)
{
SD_Error errorstatus = SD_OK;
uint16_t rca = 0x01;
if (SDIO_GetPowerState() == SDIO_PowerState_OFF) {
errorstatus = SD_REQUEST_NOT_APPLICABLE;
return errorstatus;
}
if (SDIO_SECURE_DIGITAL_IO_CARD != CardType) {
/*!< Send CMD2 ALL_SEND_CID */
SDIO_CmdInitStructure.SDIO_Argument = 0x0;
SDIO_CmdInitStructure.SDIO_CmdIndex = SD_CMD_ALL_SEND_CID;
SDIO_CmdInitStructure.SDIO_Response = SDIO_Response_Long;
SDIO_CmdInitStructure.SDIO_Wait = SDIO_Wait_No;
SDIO_CmdInitStructure.SDIO_CPSM = SDIO_CPSM_Enable;
SDIO_SendCommand(&SDIO_CmdInitStructure);
errorstatus = CmdResp2Error();
if (SD_OK != errorstatus) {
return errorstatus;
}
CID_Tab[0] = SDIO_GetResponse(SDIO_RESP1);
CID_Tab[1] = SDIO_GetResponse(SDIO_RESP2);
CID_Tab[2] = SDIO_GetResponse(SDIO_RESP3);
CID_Tab[3] = SDIO_GetResponse(SDIO_RESP4);
}
if ((SDIO_STD_CAPACITY_SD_CARD_V1_1 == CardType) || (SDIO_STD_CAPACITY_SD_CARD_V2_0 == CardType) || (SDIO_SECURE_DIGITAL_IO_COMBO_CARD == CardType)
|| (SDIO_HIGH_CAPACITY_SD_CARD == CardType)) {
/*!< Send CMD3 SET_REL_ADDR with argument 0 */
/*!< SD Card publishes its RCA. */
SDIO_CmdInitStructure.SDIO_Argument = 0x00;
SDIO_CmdInitStructure.SDIO_CmdIndex = SD_CMD_SET_REL_ADDR;
SDIO_CmdInitStructure.SDIO_Response = SDIO_Response_Short;
SDIO_CmdInitStructure.SDIO_Wait = SDIO_Wait_No;
SDIO_CmdInitStructure.SDIO_CPSM = SDIO_CPSM_Enable;
SDIO_SendCommand(&SDIO_CmdInitStructure);
errorstatus = CmdResp6Error(SD_CMD_SET_REL_ADDR, &rca);
if (SD_OK != errorstatus) {
return errorstatus;
}
}
if (SDIO_SECURE_DIGITAL_IO_CARD != CardType) {
RCA = rca;
/*!< Send CMD9 SEND_CSD with argument as card's RCA */
SDIO_CmdInitStructure.SDIO_Argument = (uint32_t)(rca << 16);
SDIO_CmdInitStructure.SDIO_CmdIndex = SD_CMD_SEND_CSD;
SDIO_CmdInitStructure.SDIO_Response = SDIO_Response_Long;
SDIO_CmdInitStructure.SDIO_Wait = SDIO_Wait_No;
SDIO_CmdInitStructure.SDIO_CPSM = SDIO_CPSM_Enable;
SDIO_SendCommand(&SDIO_CmdInitStructure);
errorstatus = CmdResp2Error();
if (SD_OK != errorstatus) {
return errorstatus;
}
CSD_Tab[0] = SDIO_GetResponse(SDIO_RESP1);
CSD_Tab[1] = SDIO_GetResponse(SDIO_RESP2);
CSD_Tab[2] = SDIO_GetResponse(SDIO_RESP3);
CSD_Tab[3] = SDIO_GetResponse(SDIO_RESP4);
}
errorstatus = SD_OK; /*!< All cards get intialized */
return errorstatus;
}
