Page I of this document contains the top and bottom views of the STM32U5A9J-DK board.
BUT...
Page 17 shows a 'different' picture when describing the configuration of the board for using STLINK-V3E.
Is there an updated version of this document that fixes this mismatch?
Solved! Go to Solution.
2023-11-13 11:29 AM
Hello @RMand and welcome back to the ST Community 😊.

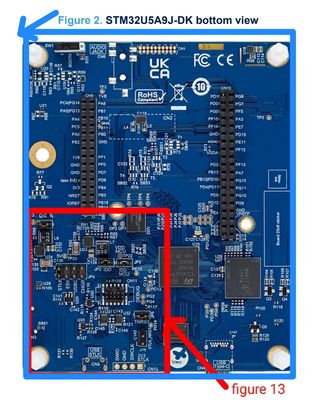

I can't see any mismatch between both pictures. The picture on the page 1 describe the full bottom view of the STM32U5A9J-DK. But, the picture on the page 17 represent the default configuration to use the embedded STLINK-V3E of the board. So to make details clearer, We zoom on the conserned part of the board.
Best regards.
STTwo-32
To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
2023-11-13 11:29 AM
Hello @RMand and welcome back to the ST Community 😊.
I can't see any mismatch between both pictures. The picture on the page 1 describe the full bottom view of the STM32U5A9J-DK. But, the picture on the page 17 represent the default configuration to use the embedded STLINK-V3E of the board. So to make details clearer, We zoom on the conserned part of the board.
Best regards.
STTwo-32
To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
2023-11-13 12:00 PM
Thanks. I must have overlooked the line in the document where it says "the figure below is a zoomed in version and NOT the full board".....
