STM32G4A1VET6 schematic review

[Deepu]

Hello,

            My name is G. Sai Deepak. In our railway project, we are using the STM32G4A1VET6 microcontroller. This is how we have designed and connected the microcontroller in the schematic. I kindly request you to review the schematic and let me know if any changes are required

Thanking You,

G.SAI DEEPAK

[Deepu]

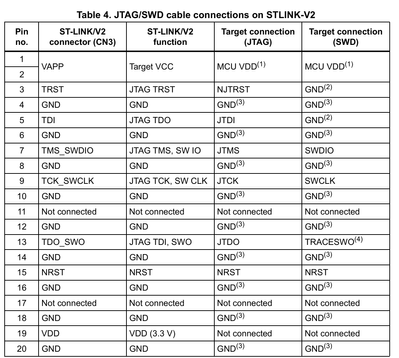

Hi, Thanks for your response Yes, it's Matching and we are following the Pin out from the below mentioned Link and I have mentioned the pic of the section that we are following

                                                                          Thanking you

J-Link Interface Description

[Deepu]

Hi, Thanks for your response Yes, it's Matching and we are following the Pin out from the below mentioned Link and I have mentioned the pic of the section that we are following, Please Provide your feedback


J-Link Interface Description

[TDK]

As I said before:

I don't use JTAG so would rather not weigh in here. The programmer manual should detail what connections are needed.

You said you are using SWD, but you are definitely showing a JTAG connection. Note how pin 3 is not used for SWD.

[Deepu]

Hi, Thank's for your reply. We are using JTAG Connection
