Hyperlynx file for this board shown in AN4803

Hariom · ‎2025-10-24

Dear Team,

Could you please send me the Hyperlynx file for this board shown in the application note.

Regards

HARI

ELABI.1 · ‎2025-10-27

Hi,

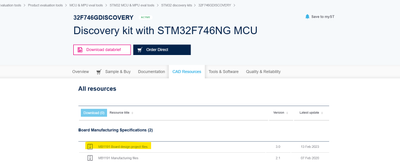

Here is the link, download the MB1191 Board design project files as shown in the screenshot:

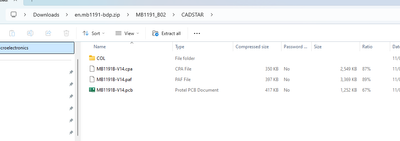

And here you will find the .pcb file, as shown in the screenshot:

Thanks.

ELABI.1

To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.

View solution in original post

ELABI.1 · ‎2025-10-27

Hi Hariom,

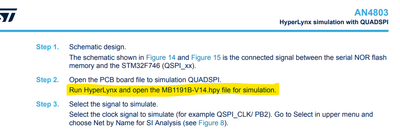

Could you please provide me more details? It's a bit unclear to me. Are you talking about this part?

Thanks.

ELABI.1

To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.

Hariom · ‎2025-10-27

Hi ELABI.1,

Thank you.

Yes I am talking about that file you highlighted.

Regards

Hari

ELABI.1 · ‎2025-10-27

Actually, this file isn’t provided on our side, you have to generate it yourself using your editor.

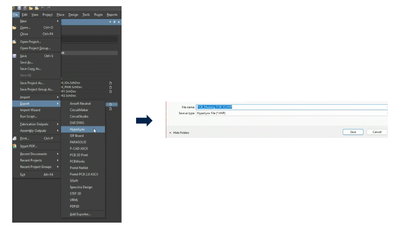

For example, you can generate the .HYP file with the Altium tool for your board. Here is a screenshot showing this:
