How to configure and use the PSSI on the STM32H7

1. Introduction

The PSSI which stands for Parallel synchronous slave interface and was introduced in our high performance STM32H7 family. The PSSI can be used as a fast interface between two STM32 microcontrollers or between an STM32 and an MPU or FPGA. In this article we will see how to configure and use this interface on a STM32H723.

2. Prerequisites

  • Hardware:
    • Micro USB cable used to power the Nucleo board from a host machine and to load the code into the STM32.

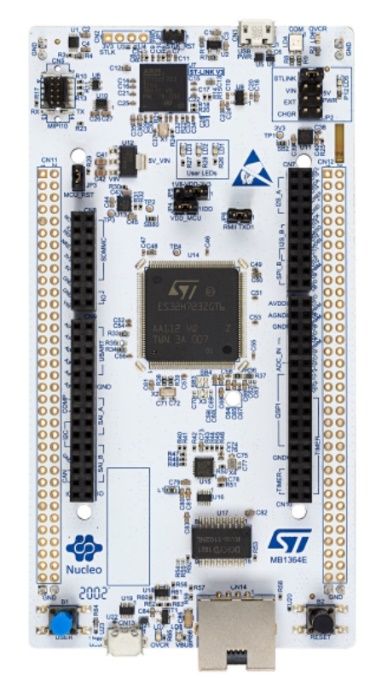

    • Nucleo-H723
  • Software: STM32CubeIDE

3. Theory

The PSSI offers a synchronous 8/16-bit parallel data input/output slave interface that provides a fast data exchange between a transmitter and receiver. The PSSI provides the Transmitter with a data valid signal that indicates when the data is valid, and the receiver to output a flow control signal that indicates when it is ready to sample the data. The parallel interface can be 8 or 16-bit and integrates a FIFO of up to 8 words. For flow control, there are two signals that are used, Data Enable and Data Ready.


4. Steps

  1. Open STM32CubeIDE

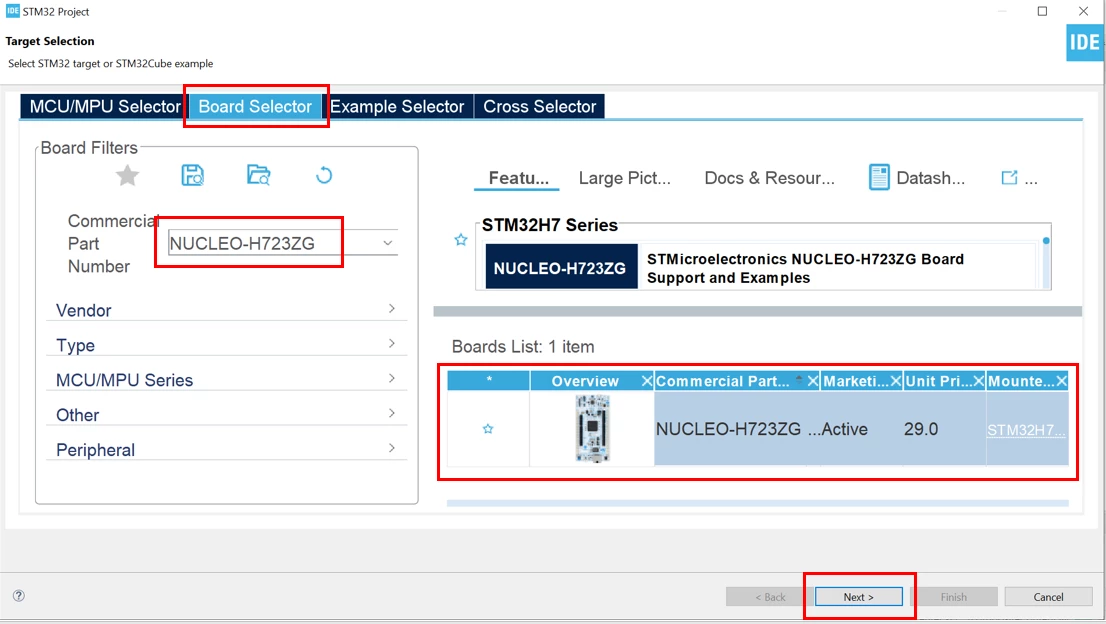

  2. Create a new project using the NUCLEO-H723 board

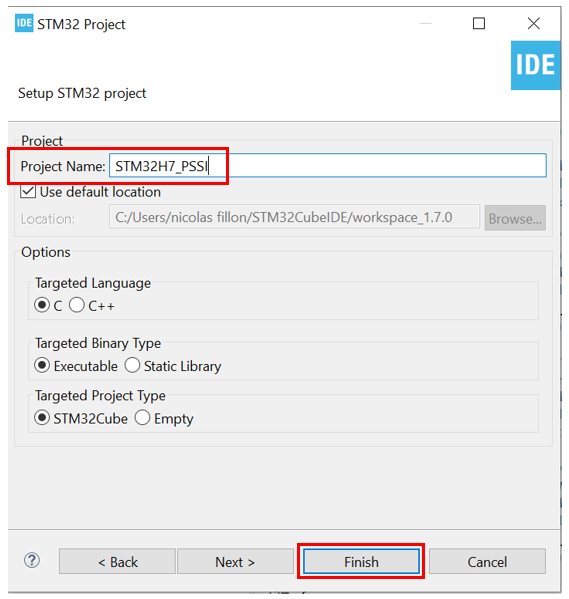

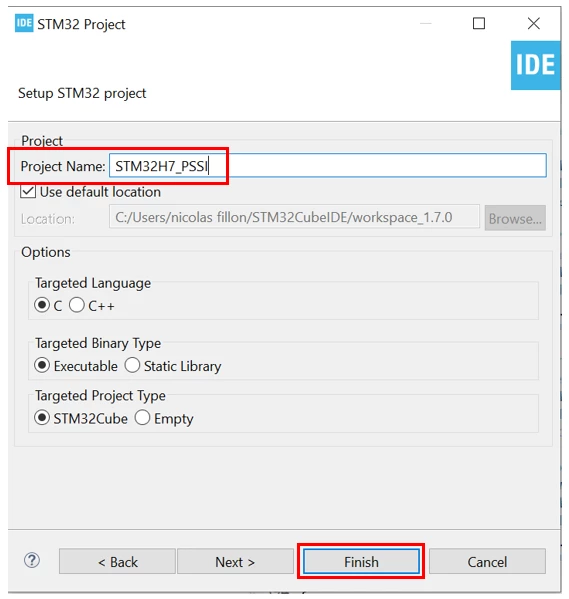

  1. Give a name to the project

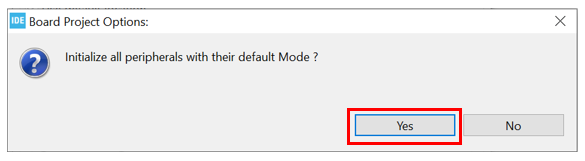

  1. Initialize all peripherals with their default settings

  1. Configure the PSSI

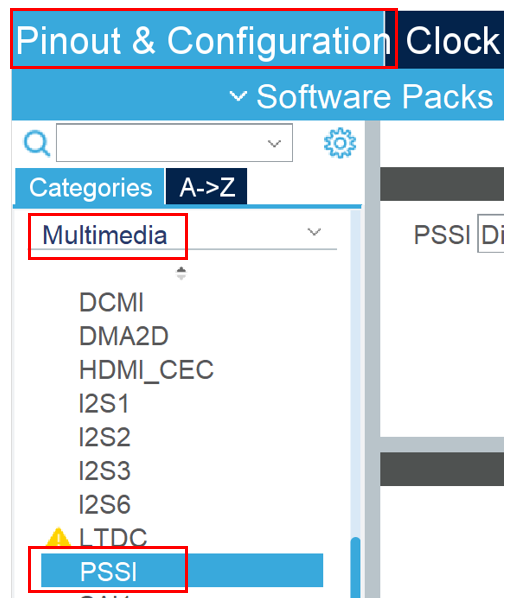

You will find the PSSI interface in the Multimedia category in the Pinout and Configuration Tab.

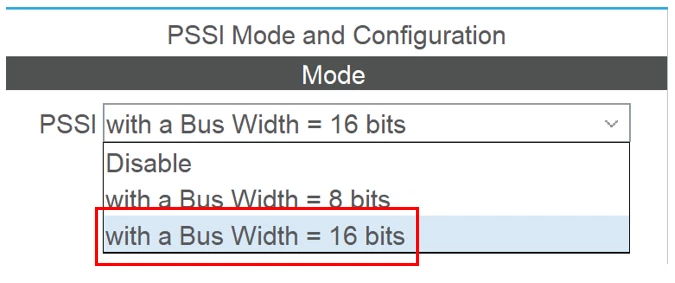

  1. Enable PSSI

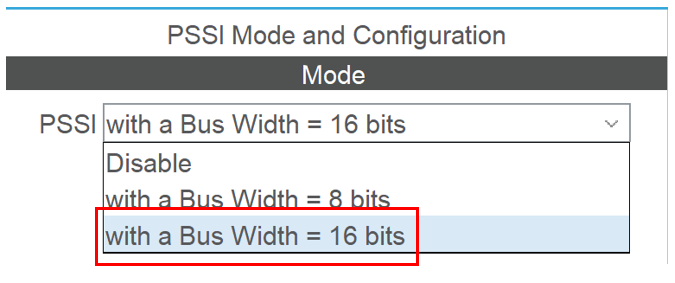

Enable the interface. We will select a 16-bit interface from the PSSI Mode Configuration menu.

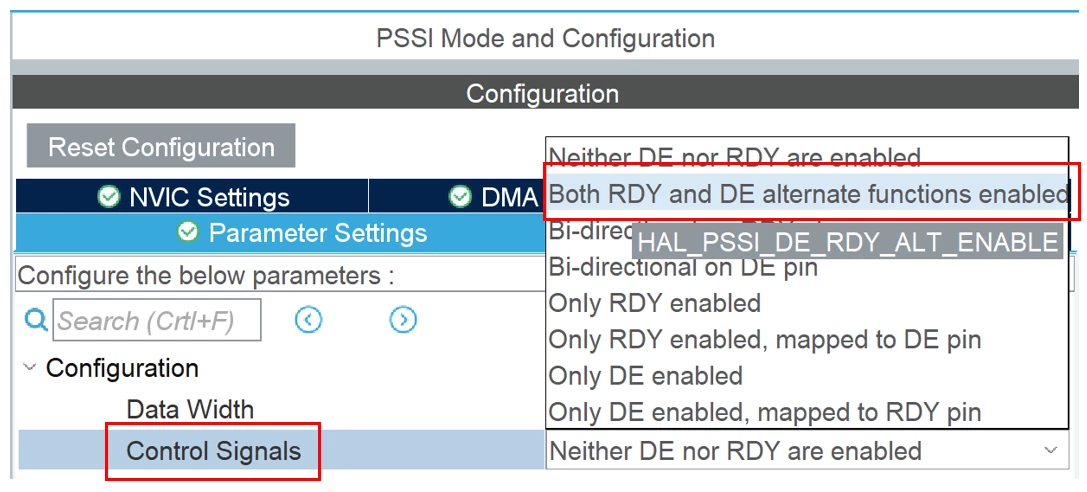

  1. Enable the hardware control signals

We will use both RDY (ready) and Data Enable (DE) signal for the communication.

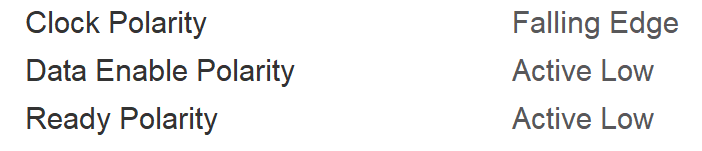

We will keep the rest of the configuration by default, but you should know that you can configure the clock polarity and the two flow control signals polarity:
  1. Add DMA

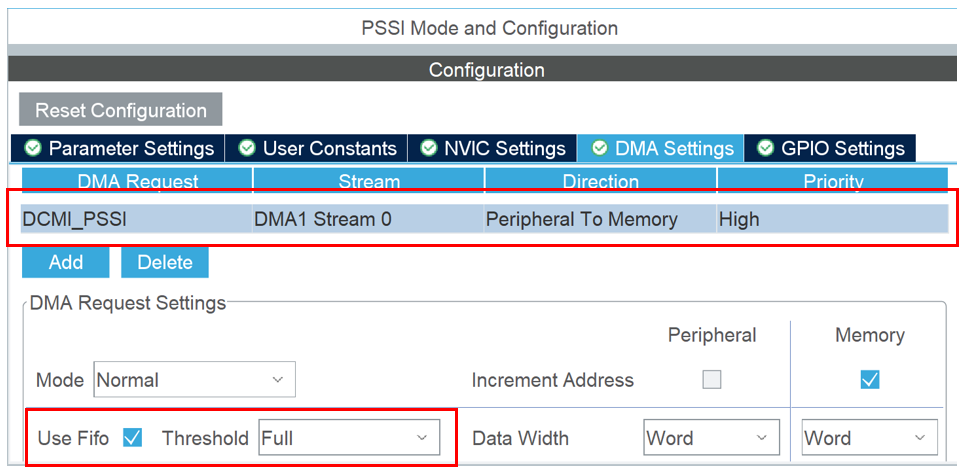

We will DMA with FIFO to achieve the highest performance of data transfer between the 2 devices on the bus.
  1. Run the STM32 at max speed

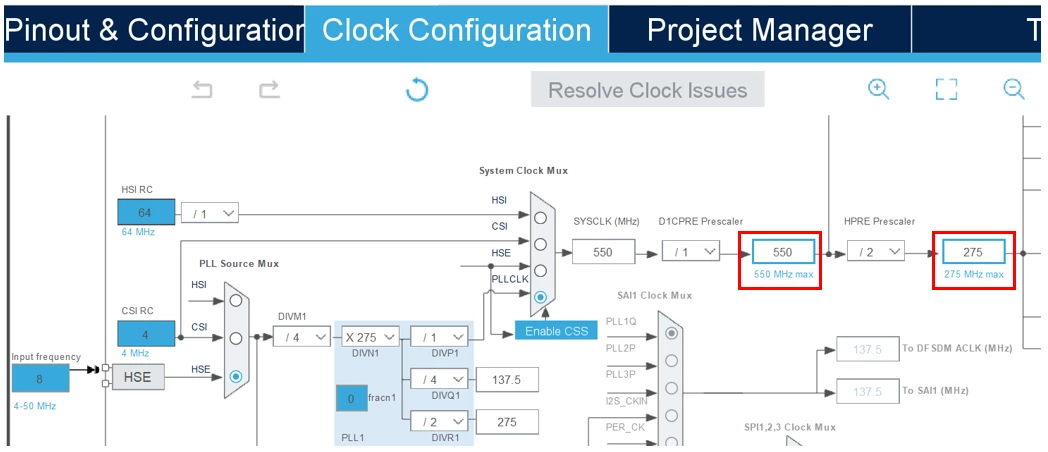

Check that you are running at the max clock rate for the highest performance. The clock configuration should be as follows:
SYSCLK (CPU Clock) at 550 MHz
HCLK (AXI and AHBs Clock) at 275 MHz
  1. Generate Code

Save the project, that will also generate the code.
  1. Add code

The APIs that are used for Transmitting and Receiving data are:
  • HAL_PSSI_Receive_DMA
  • HAL_PSSI_Transmit_DMA
For an example of communication between two STM32H7 devices connected via the PSSI, please see the one included in the STM32CubeH7. The location of the example is:
