Documentation error? in en.DM00037051.pdf STM32f4 ds

LMI2 · ‎2016-10-20

Posted on October 20, 2016 at 20:34

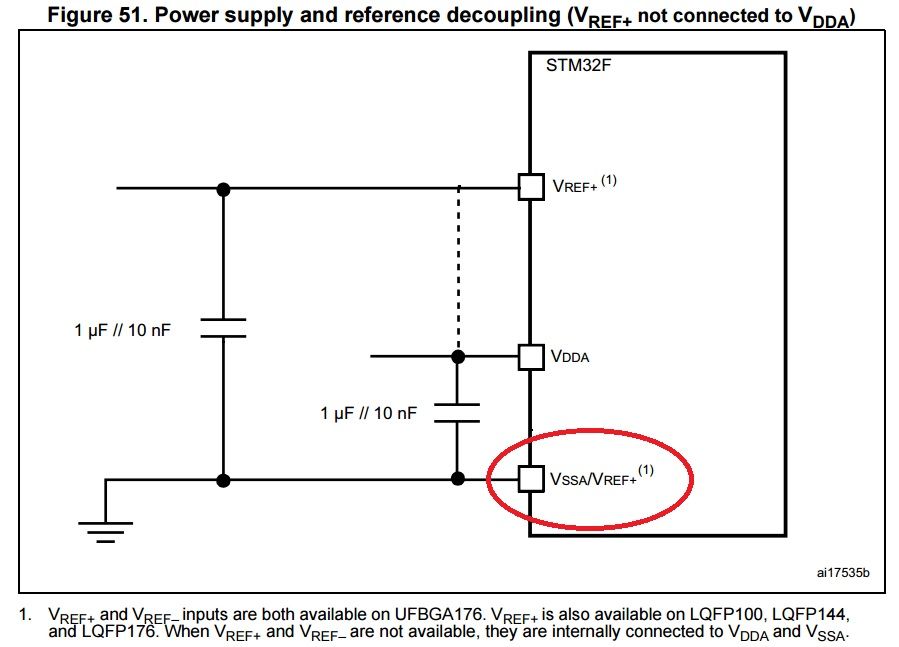

I don't understand the picture in STM32f4 datasheet p137. In figure 51 the Vref+ is shown as connected to VSS

.

Tesla DeLorean · ‎2016-10-20

Posted on October 20, 2016 at 20:43

Definitely looks like it should be VREF-
