STM32CubeMX clock validation regression: STM32H743VIHx VOS0 LDO HCLK 240 MHz incorrectly limited to 225 MHz

[darkblue]

MCU: STM32H743VIHx / STM32H743VIH
Power: PWR_LDO_SUPPLY
Voltage scale: Power Regulator Voltage Scale 0 / VOS0

Clock setting:
SYSCLK = 480 MHz
D1CPRE = /1
HPRE = /2
HCLK = 240 MHz
D2PPRE/D3PPRE = /2, PCLK = 120 MHz

Actual result:
STM32CubeMX marks HCLK 240 MHz as error:
"240 MHz max frequency must be <= 225 MHz"

Expected result:
According to STM32H743 datasheet, with VOS0 and LDO enabled,
fCPU max is 480 MHz and fHCLK max is 240 MHz.

This configuration was accepted before updating STM32CubeMX / STM32H7 MCU package.



[AScha.3]

Which chip revision is set?

Try: v .

...or: what's written on your CPU?

If older version, y , then some clock values are limited to lower limit.

[darkblue]

Thanks. I checked both.

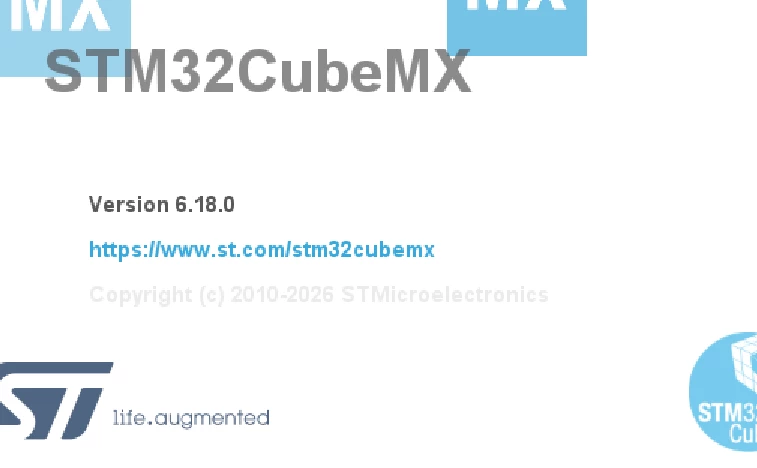

In CubeMX, Product revision is set to rev.V.

I also read DBGMCU->IDCODE from the actual MCU:
DEV_ID = 0x450
REV_ID = 0x2003

So the device is configured/detected as Rev V, not Rev Y.

[Mahmoud Ben Romdhane]

Hello ​@darkblue



Let me thank you for posting.

I suggest that you take a look at those posts:

CubeMX Version 6.18.0 introcudes wrong check of clock limits for STM32H753 | Community

Potential bug in CubeMX 6.18.0 – Clock Configuration error | Community

The issue has been already reported to the dedicated team (Internal Ticket number: CDM0064049).

I will keep you up to date until the issue is fixed.



Thanks.

Mahmoud
