STM32F429i_Discovery with LCD load logo or image

[ibrahim]

Posted on September 15, 2016 at 10:10

Hello

everyone, I hope you are well.

I have a small

problem I would like to display a logo of my my university on board

STM32F429i_Discovery

but I sometimes displaying the logo ST.

I use LCD

image converter

but it does not work well to create my table to integrate it into the code.

I do not know

if ST used another converter. You can point me please.

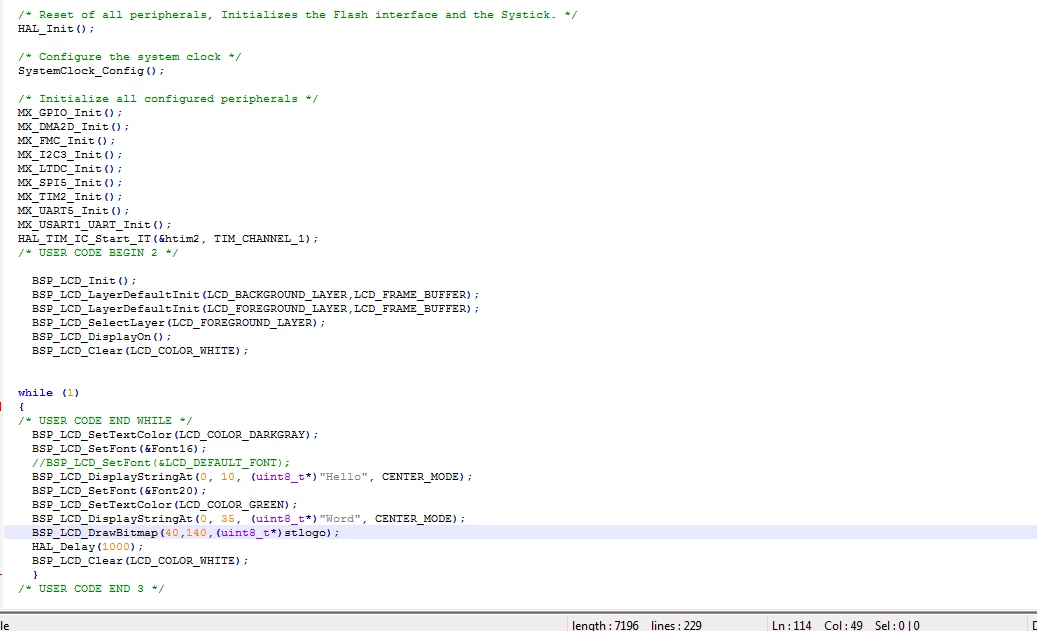

I use BSP_LCD_DrawBitmap(...);

Thank you very much.

#stm32f429i #lcd #ili9341

[riuson]

Posted on September 16, 2016 at 12:18

Save this code to file

#ifndef __STLOGO_H

#define __STLOGO_H


#if defined ( __ICCARM__ )

#pragma data_alignment=4

#endif


$(start_block_images_table)

_ALIG_BEGIN
const
unsigned char $(doc_name_ws)[$(out_blocks_count)] _ALIGN_END {

$(out_image_data)

};

$(end_block_images_table)

and select it as template for images (Options -> Conversion -> Templates). I can show the rest of the settings, but I need to know the data format required by your program.

[ibrahim]

Posted on September 16, 2016 at 14:18

Hello

, here are the

steps

for

how I

try to do the same as

the example of

STM

.

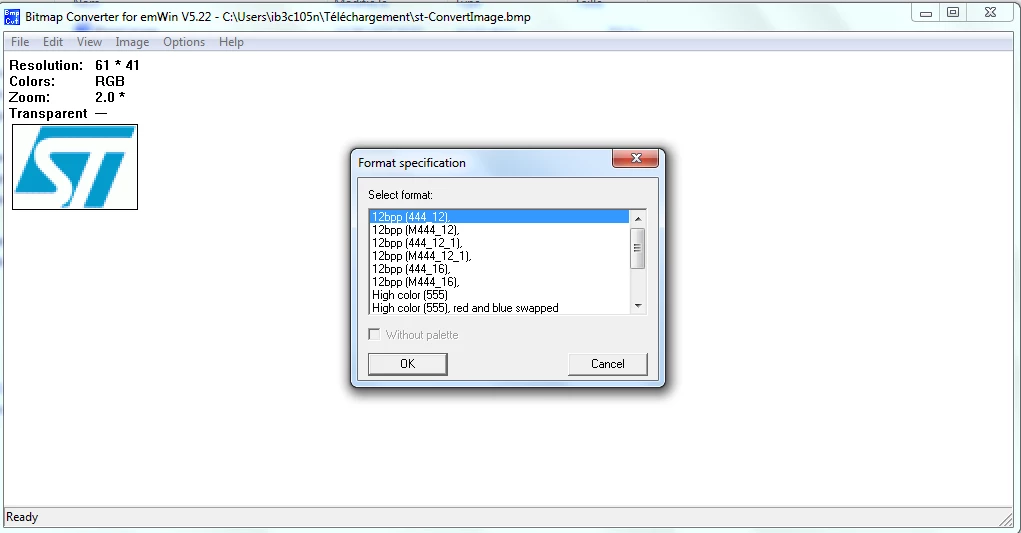

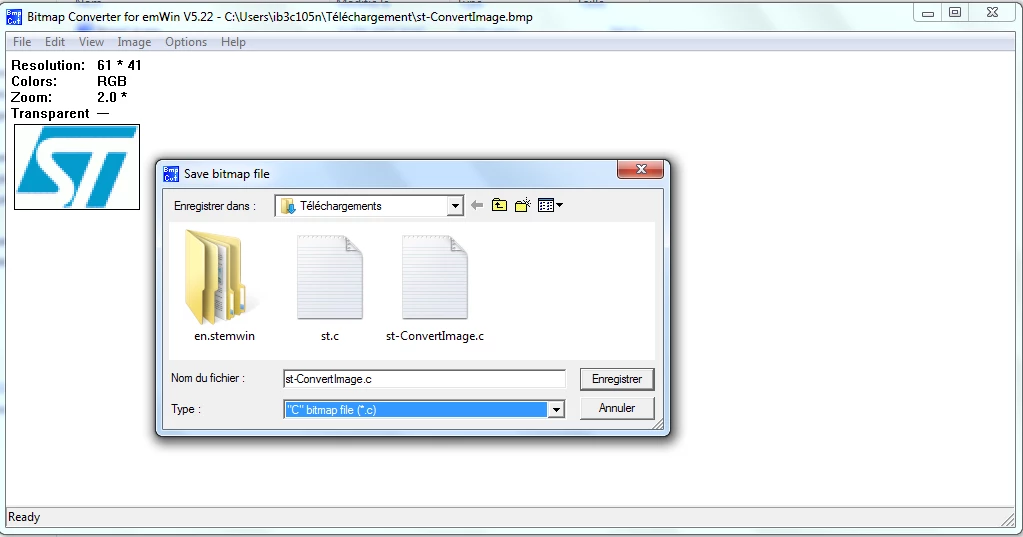

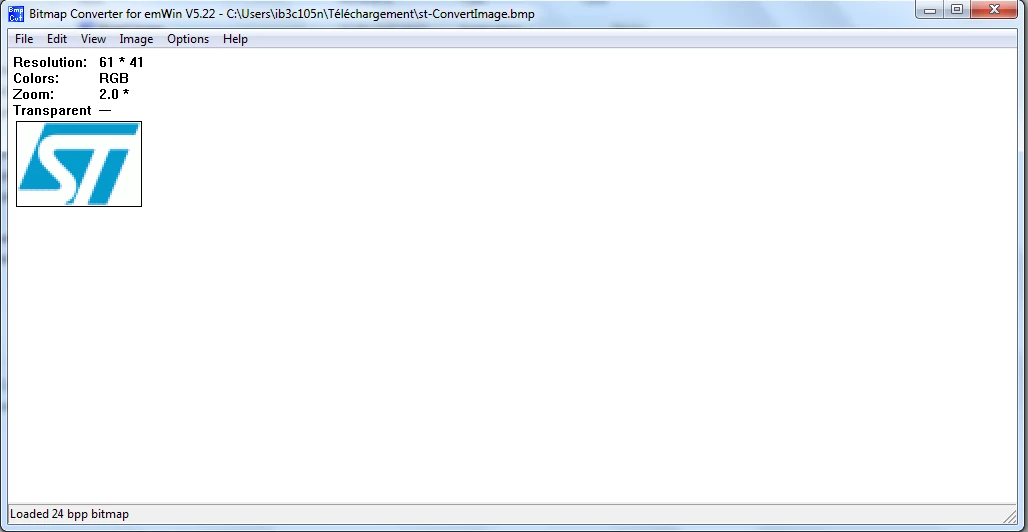

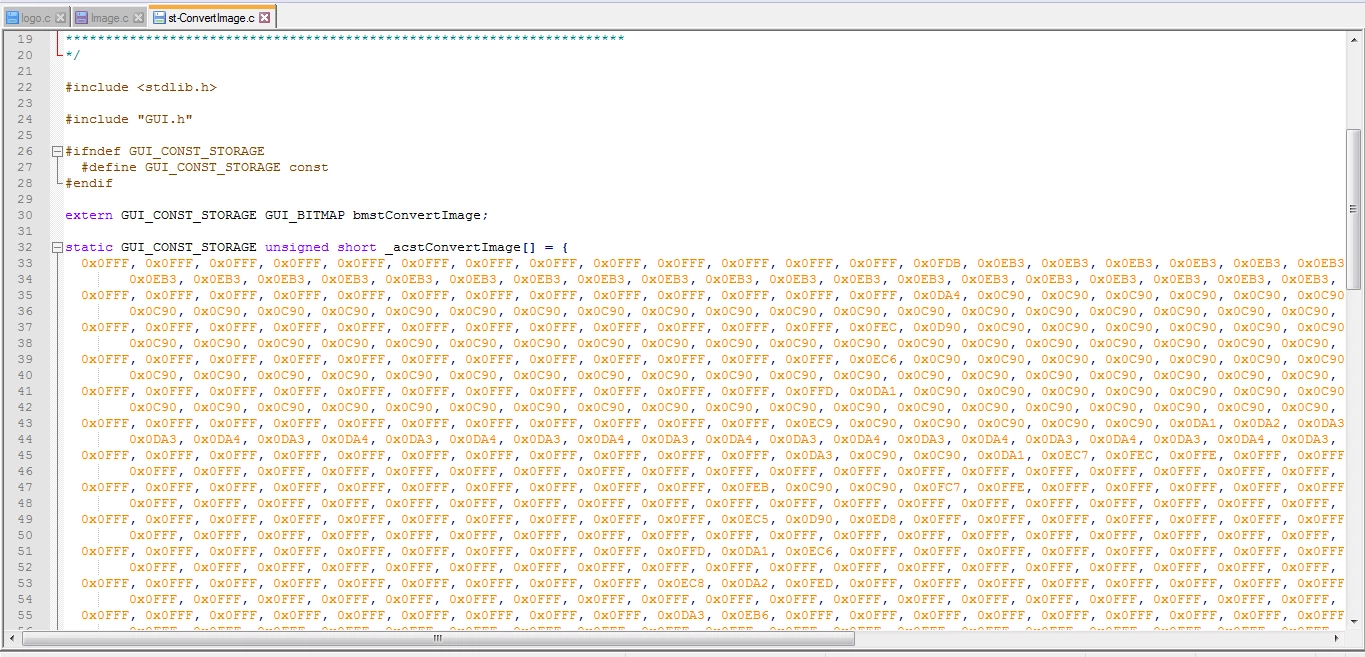

1st step: I generate my


in table .c

with

BmpCVt.exe so I'll have my table soon after they are on 8bit 0xFF

and

soon

both

16bit

0xFFFF.

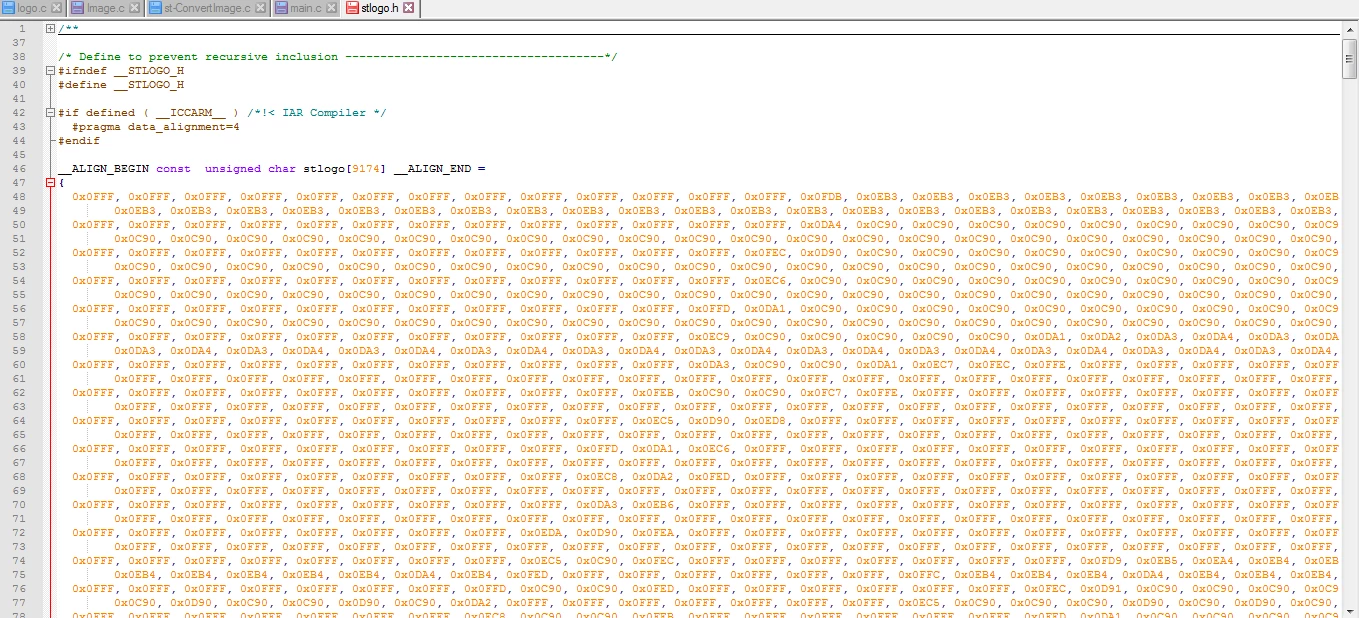

2nd step:

I open

my

file

stlogo.h

I brought

to STM

sample file

in STM32F4xx_DFP/2.9.0

/Projects

/

STM32F429I

-Discovery

/Examples /BSP/Inc

With

their

table

it works fine I displays the ST logo. but if I want to put my table and I create with BmpCVt.exe clears their table and I put my table. it gives me nothing and the display will give me any results

.

[riuson]

Posted on September 16, 2016 at 17:02

The original post was too long to process during our migration. Please click on the provided URL to read the original post. https://st--c.eu10.content.force.com/sfc/dist/version/download/?oid=00Db0000000YtG6&ids=0680X000006I6f2&d=%2Fa%2F0X0000000bse%2F.L.GX94Dv9nXxNJPDefRxPDjTxFv80TN9J_N.9rnHmE&asPdf=false

[ibrahim]

Posted on September 16, 2016 at 17:17

Thank you for your help,

and I want to understand the program how you generate the table with that tool and its options thank you again

[riuson]

Posted on September 16, 2016 at 17:30

enedis.ibrahim

This is experiment with BMP internal data format.

If the experiment

will succeed

, I made a template for LIC.

Corrected code, format R5G6B5, in attachments.

Try it and

let me know

the results.

________________

Attachments :

image.h : https://st--c.eu10.content.force.com/sfc/dist/version/download/?oid=00Db0000000YtG6&ids=0680X000006HzmQ&d=%2Fa%2F0X0000000bPW%2F0phSQrsQdkka9wJWKHVVotH.lXB7yXHvPJf6GN0VurU&asPdf=false

[ibrahim]

Posted on September 16, 2016 at 17:50

it was successful but it gave me an inverted logo with color green and orange

[riuson]

Posted on September 16, 2016 at 18:01

And try this attachment with inverted R/B colors.

________________

Attachments :

image.h : https://st--c.eu10.content.force.com/sfc/dist/version/download/?oid=00Db0000000YtG6&ids=0680X000006Hzhg&d=%2Fa%2F0X0000000bPX%2Fq4JvYLn_aKuOky8355fmncF9B9R2zpg.cWEsr3iogq4&asPdf=false

[ibrahim]

Posted on September 16, 2016 at 18:08

How can I change color details and how do I generate a table as you did for another

logo,

you can show me

the

way

.

Thank you

[riuson]

Posted on September 16, 2016 at 18:47

See attachments here.

________________

Attachments :

2016-09-16_21-40-46.png : https://st--c.eu10.content.force.com/sfc/dist/version/download/?oid=00Db0000000YtG6&ids=0680X000006HzmL&d=%2Fa%2F0X0000000bPT%2FKLhTGSfhO9C4byRGEqlo.731H.0sPJGb0iiPAEeuhKE&asPdf=false

2016-09-16_21-40-56.png : https://st--c.eu10.content.force.com/sfc/dist/version/download/?oid=00Db0000000YtG6&ids=0680X000006HzmB&d=%2Fa%2F0X0000000bPR%2FOEcUUMQCWmF5Xs8og1G60NwX9P8lbBRTYzsZR0Brhy0&asPdf=false

2016-09-16_21-41-05.png : https://st--c.eu10.content.force.com/sfc/dist/version/download/?oid=00Db0000000YtG6&ids=0680X000006Hzm6&d=%2Fa%2F0X0000000bPS%2FZwic3xzlZW8rzYWl1k9nmgahS80ue9UmXQ3_RHCilWU&asPdf=false

2016-09-16_21-41-13.png : https://st--c.eu10.content.force.com/sfc/dist/version/download/?oid=00Db0000000YtG6&ids=0680X000006HzKJ&d=%2Fa%2F0X0000000bPQ%2FktMRV4MlTkMMiyctw23deMknk7i9gBzaR2F7TdSSOjU&asPdf=false

2016-09-16_21-41-19.png : https://st--c.eu10.content.force.com/sfc/dist/version/download/?oid=00Db0000000YtG6&ids=0680X000006Hzlw&d=%2Fa%2F0X0000000bPN%2FwhARxhyJ54f1wHKl57kwcOoozQ3mcxZ7wSMQ.YgnTgg&asPdf=false

enedis2.tmpl : https://st--c.eu10.content.force.com/sfc/dist/version/download/?oid=00Db0000000YtG6&ids=0680X000006Hzlr&d=%2Fa%2F0X0000000bPO%2FIuv.zS0hCiyCQ7_YVU5Cj2DVbkLNPHs3TLyCkH44BWs&asPdf=false

stm32disco-preset-r5g6b5.xml : https://st--c.eu10.content.force.com/sfc/dist/version/download/?oid=00Db0000000YtG6&ids=0680X000006Hzlh&d=%2Fa%2F0X0000000bPP%2FzuaiB2CaEbFtv3WG15PiOlqdLE3OPleZiFaF374lRbY&asPdf=false

[ibrahim]

Posted on September 18, 2016 at 01:25

Thank you so much for your help Vladimir, but i have always the same problem with the color and the inverted logo, I followed your picturs on the same thing but i can not see a good color logo.
