How to configure slave to enter and exit HDR mode through I3C on stm32h503

  • June 29, 2023
  • 2 replies
  • 2677 views

I am using the following slave device for I3C reading and writing. I can now read and write CMOS registers through private mode, but I cannot find any examples of entering and exiting HDR mode. Can you provide an example program for entering and exiting HDR mode? Thanks





This topic has been closed for replies.
Best answer by Foued_KH

Hello @taylor_quan ,

- HDR exit pattern generation on the I3C bus for error recovery.
You can enable the HDR exit via the I3C_CFGR register : [ Bit 4 EXITPTRN: HDR exit pattern enable (when I3C acts as a controller) ]

Foued

2 replies

Associate II
June 29, 2023

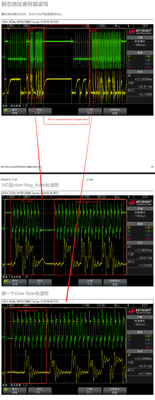

Another issue is that I cannot cancel the reserved byte when using private read


I3C_PrivateTypeDef aPrivateDescriptor[3] = \
 {
 {TARGET1_DYN_ADDR, {aTxBuffer, 2}, {NULL, 0}, HAL_I3C_DIRECTION_WRITE},
 {TARGET1_DYN_ADDR, {NULL, 0}, {aRxBuffer, 30}, HAL_I3C_DIRECTION_READ},
											{TARGET1_DYN_ADDR, {aTxBuffer, 2}, {aRxBuffer, 30}, HAL_I3C_DIRECTION_BOTH}
 };

 /*##- Add context buffer transmit in Frame context #####################*/
 if (HAL_I3C_AddDescToFrame(&hi3c1,
 NULL,
 &aPrivateDescriptor[I3C_IDX_FRAME_1],
 &aContextBuffers[I3C_IDX_FRAME_1],
 aContextBuffers[I3C_IDX_FRAME_1].CtrlBuf.Size,
								 I3C_PRIVATE_WITH_ARB_RESTART) != HAL_OK)
 {
 /* Error_Handler() function is called when error occurs. */
 Error_Handler();
 }

 /*##- Start the transmission process ###################################*/
 /* Transmit private data processus */
 if (HAL_I3C_Ctrl_Transmit(&hi3c1, &aContextBuffers[0],100) != HAL_OK)
 {
 /* Error_Handler() function is called when error occurs. */
 Error_Handler();
 }

 while (HAL_I3C_GetState(&hi3c1) != HAL_I3C_STATE_READY)
 {
 }

 if (HAL_I3C_AddDescToFrame(&hi3c1,
							 NULL,
							 &aPrivateDescriptor[1],
							 &aContextBuffers[I3C_IDX_FRAME_2],
							 aContextBuffers[I3C_IDX_FRAME_2].CtrlBuf.Size,
							 I3C_PRIVATE_WITHOUT_ARB_STOP) != HAL_OK)
 {
 /* Error_Handler() function is called when error occurs. */
 Error_Handler();
 }
 if(HAL_I3C_Ctrl_Receive(&hi3c1, &aContextBuffers[I3C_IDX_FRAME_2],100) != HAL_OK)
 {
 	/* Error_Handler() function is called when error occurs. */
 	Error_Handler();
 }





Foued_KH
Foued_KHBest answer
ST Employee
July 3, 2023

Hello @taylor_quan ,

- HDR exit pattern generation on the I3C bus for error recovery.
You can enable the HDR exit via the I3C_CFGR register : [ Bit 4 EXITPTRN: HDR exit pattern enable (when I3C acts as a controller) ]

Foued
