Hello.
Looking for a reference circuit diagram of STM32F723VET6.
If not, I'm looking for a circuit diagram of 32F723 EDISCOVERY.
Please give me a link.
The reason is that I want to use vdd as 1.8V instead of 3.3V, but I want to refer to it.
think you.
Solved! Go to Solution.
2024-11-01 07:54 AM - edited 2024-12-06 05:31 AM
Hello @leenaya and welcome to the community,
Here it is: https://www.st.com/resource/en/schematic_pack/mb1280-3v3-c01-schematic.pdf
For this ST board schematics you find it as the following:

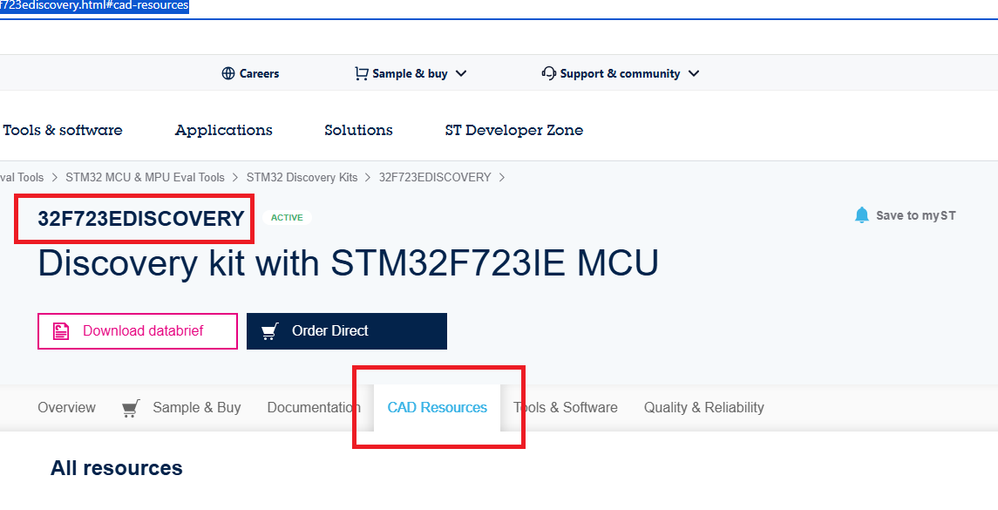

https://www.st.com/en/evaluation-tools/32f723ediscovery.html#cad-resources
Then:
You can also refer to this application note: AN4661 "Getting started with STM32F7 Series MCU hardware development" it may help you.
2024-11-01 07:54 AM - edited 2024-12-06 05:31 AM
Hello @leenaya and welcome to the community,
Here it is: https://www.st.com/resource/en/schematic_pack/mb1280-3v3-c01-schematic.pdf
For this ST board schematics you find it as the following:
https://www.st.com/en/evaluation-tools/32f723ediscovery.html#cad-resources
Then:
You can also refer to this application note: AN4661 "Getting started with STM32F7 Series MCU hardware development" it may help you.
2024-11-01 08:02 AM
2024-11-01 08:05 AM
I think the schematic is not open-source: https://www.st.com/en/evaluation-tools/32f723ediscovery.html
2024-11-01 08:11 AM

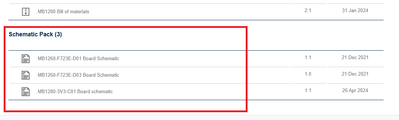

@liaifat85 Look on the 'CAD Resources' tab - as already mentioned!
2024-11-01 08:16 AM - edited 2024-11-01 08:23 AM
All ST boards schematics are open source. And these are for 32F723EDISCOVERY board:
https://www.st.com/resource/en/schematic_pack/mb1280-3v3-c01-schematic.pdf
2024-11-01 09:57 AM
@liaifat85 wrote:I think the schematic is not open-source
What makes you say that?

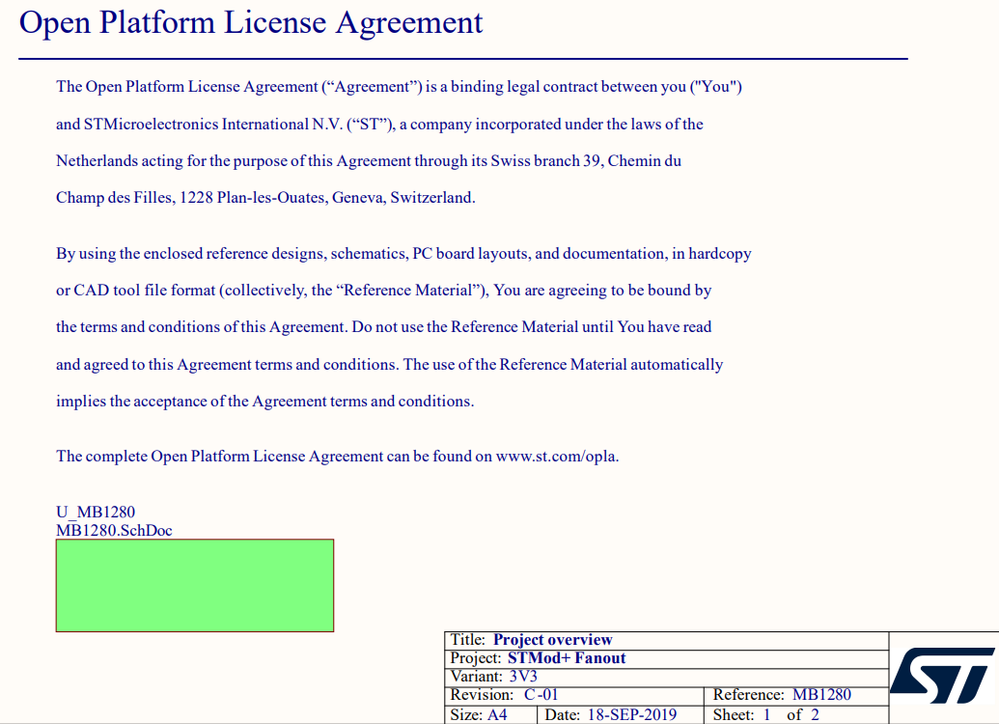

The licence terms are shown on the 1st page of the schematics:
The full terms are here:
https://www.st.com/resource/en/license_agreement/open_platform_license_agreement.pdf
(via the http://www.st.com/opla link given in the schematic)
